Antenna Connection

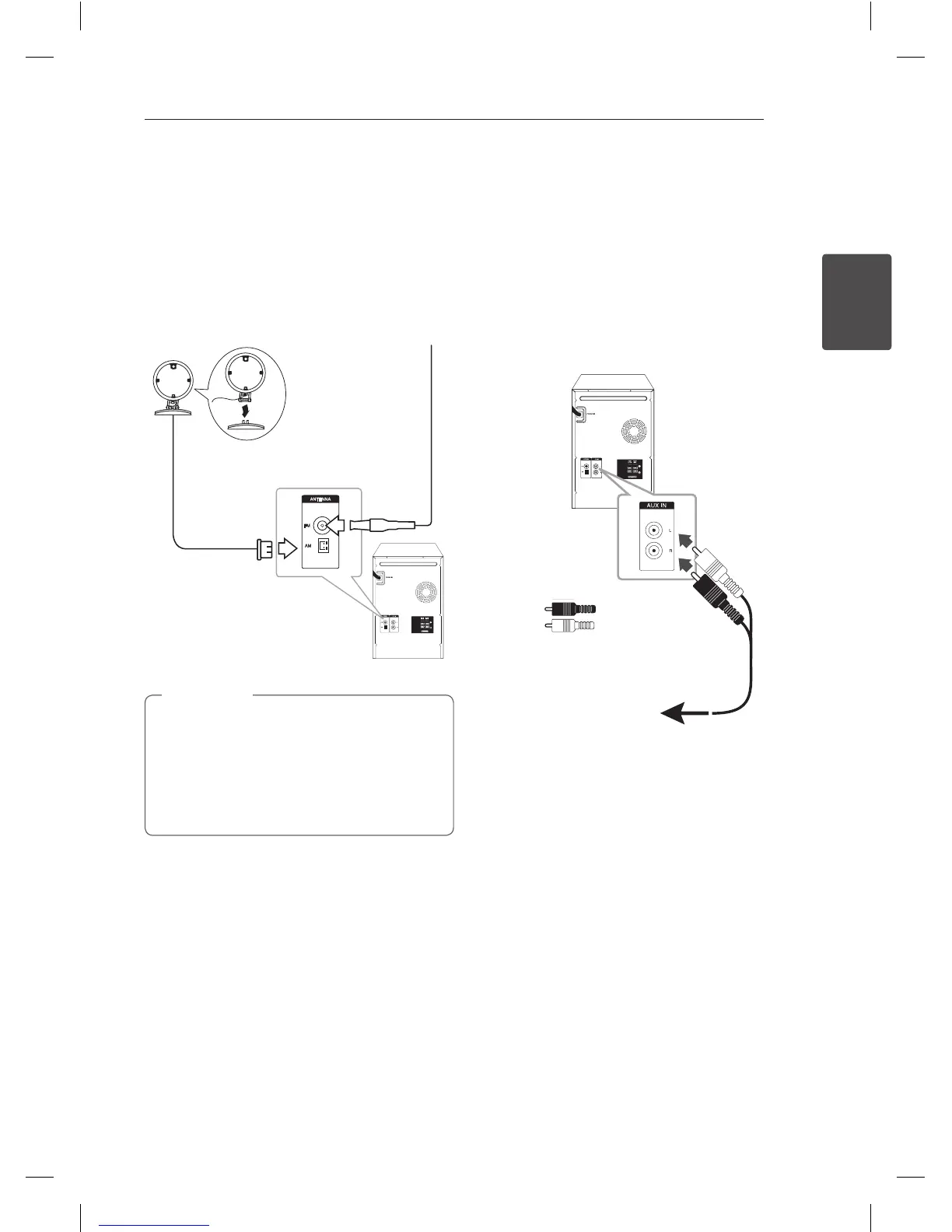

Connect the supplied FM/AM antenna for listening
to the radio.
Connect the FM wire antenna to the FM antenna
connector.
Connect the AM loop antenna to the AM antenna
connector.
y
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep
it horizontal.
y
To prevent noise pickup, keep the AM Loop
antenna away from the unit and other
components.
,
Note
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN(L/R) connector.
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
To the audio output jacks
of your component (TV,
VCR, etc.)
Red
White
