3-65 3-66

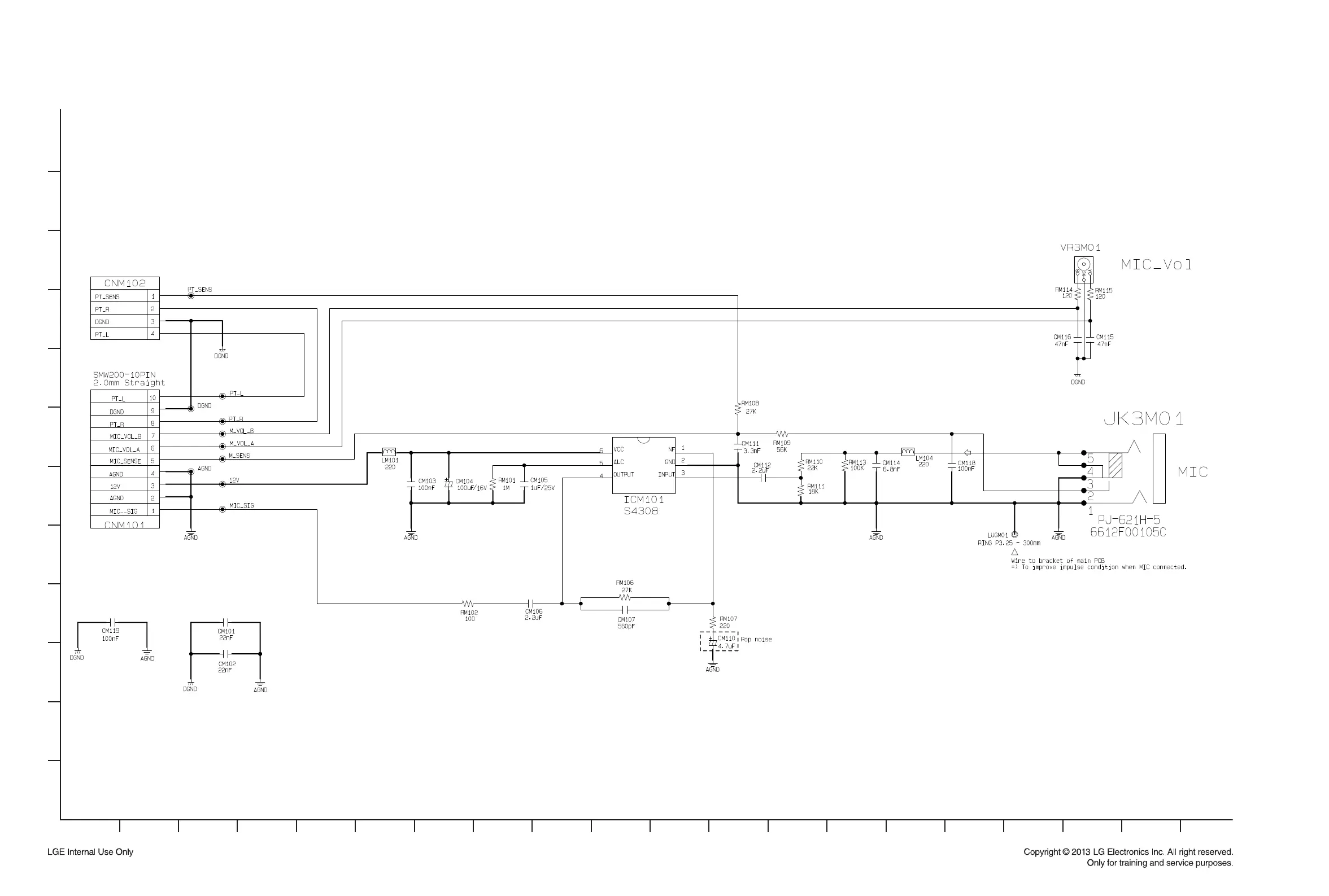

10. MIC CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MIC
EAX64986002_0.1.0_MIC_SD
2013. 01. 17
