LG CM9730 User Manual

Getting Started8
Getting Started
1

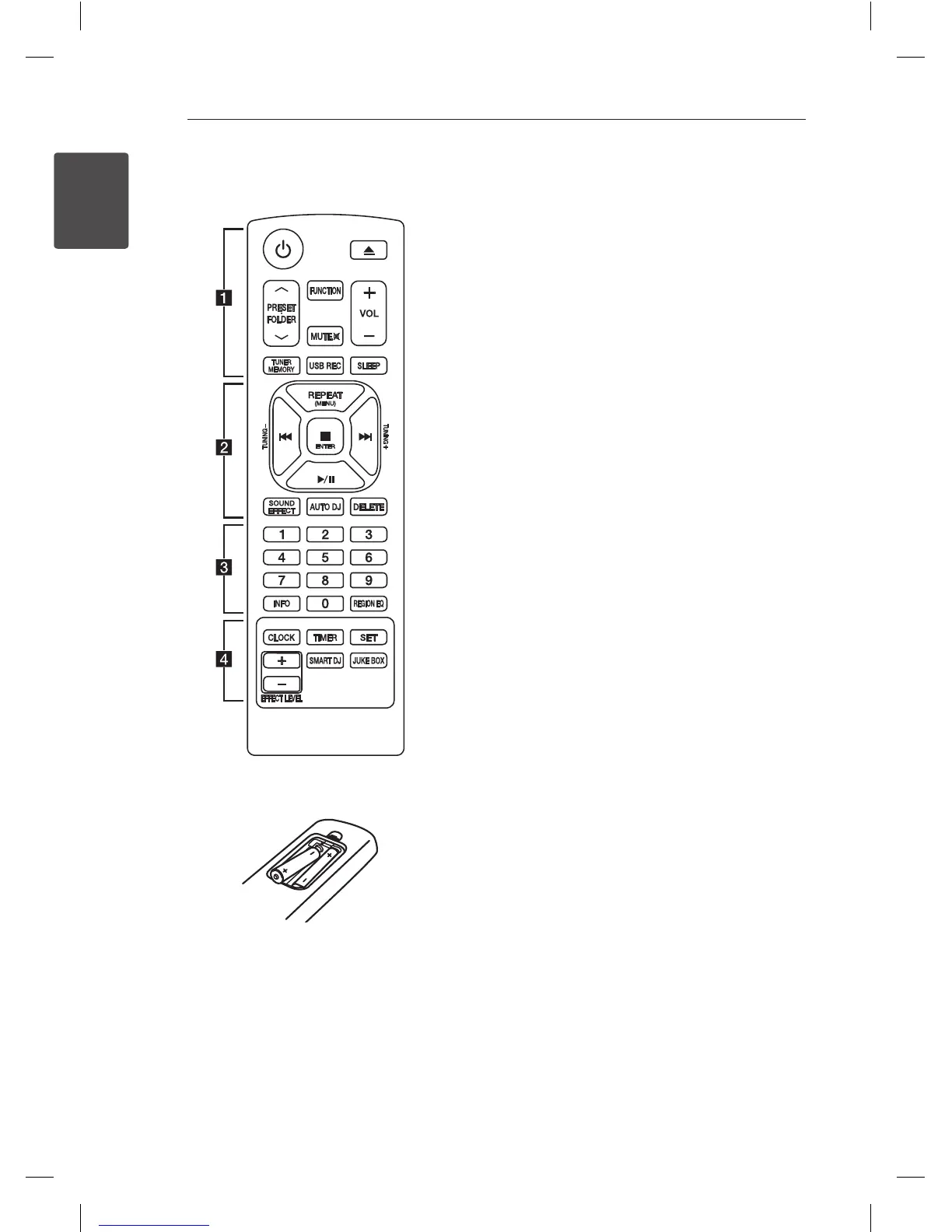

Remote control
Battery Installation
Remove the battery cover on the rear of the
Remote Control, and insert two (size AAA) batteries
with
4
and
5
matched correctly.
• • • • • • • • • •
a
• • • • • • • • •
1
(Power) : Switches the unit ON or OFF.
B
(Open/Close) : Opens and closes the disc tray.
PRESETFOLDER
W
/
S
:
-
Searches for a folder of MP3/WMA les. When
a CD/USB containing MP3/WMA les in several
folders is being played, press PRESETFOLDER
W
/
S
to select the folder you want to play.
-
Chooses a preset number for a radio station.
FUNCTION : Selects the function and input source.
MUTE
@
: Mutes the sound.
VOL +/- : Adjusts speaker volume.
TUNER MEMORY :
-
Stores radio stations.
-
Deletes all the saved stations.
USB REC : USB direct recording.
SLEEP : Sets the system to turn off automatically at
a specified time.
(Dimmer : The display window will be darkened by
half.)

LG CM9730 Specifications

General

Type	-
Cassette deck	No
Product color	Black
Disc loading type	Tray
Optical disc player	Yes
Impedance	75 Ω
RMS rated power	2300 W
Number of speakers	2
Power source	AC
Input voltage	220-230 V
Input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	180 W
Playback disc formats	CD audio
Audio formats supported	MP3, WMA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	50
Display type	LCD
Speaker depth	500 mm
Speaker width	520 mm
Speaker height	720 mm
Apple docking compatibility	Not supported
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Main unit dimensions (WxDxH)	542 x 421 x 310 mm
