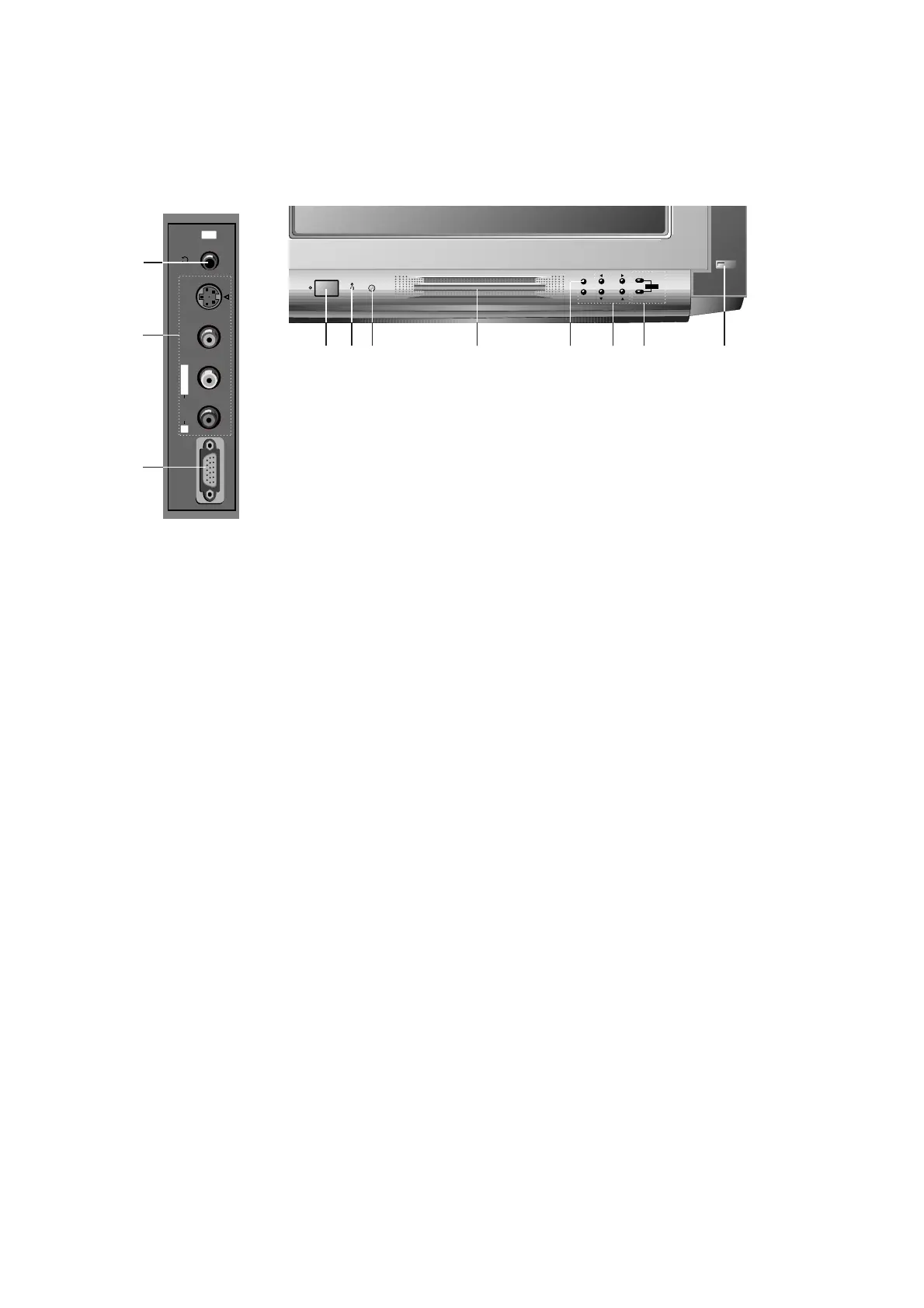

Front panel
1. MAIN POWER (POWER vv)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby mode.
dims when the set is switched on.
3. REMOTE CONTROL SENSOR
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current mode.
FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD
/
EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
6. TURBO SOUND / PICTURE
switches Turbo sound or Turbo picture function on or off.
7. EYE (option)
adjusts picture according to the surrounding conditions.
8. HEADPHONE SOCKET
Connect the headphone plug to this socket.
9. AUDIO/VIDEO IN SOCKETS (AV4)
Connect the audio/video out sockets of external equipment to
these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO VCR to the S-
VIDEO socket.
Connect the audio out sockets of the S-VIDEO VCR to the
audio sockets as in AV4.
10. PC INPUT SOCKET
Connect the monitor output socket of the PERSONAL COM-
PUTER to this socket.
Note : Set the resolution of PC to VGA 640x480 video mode to
use this set as PC monitor.
11. CENTRE SPEAKER
Shows up when the Turbo sound is on
Note : To prevent fingers from getting jammed in, do not put
them on this speaker.
