Page #28 background image
27

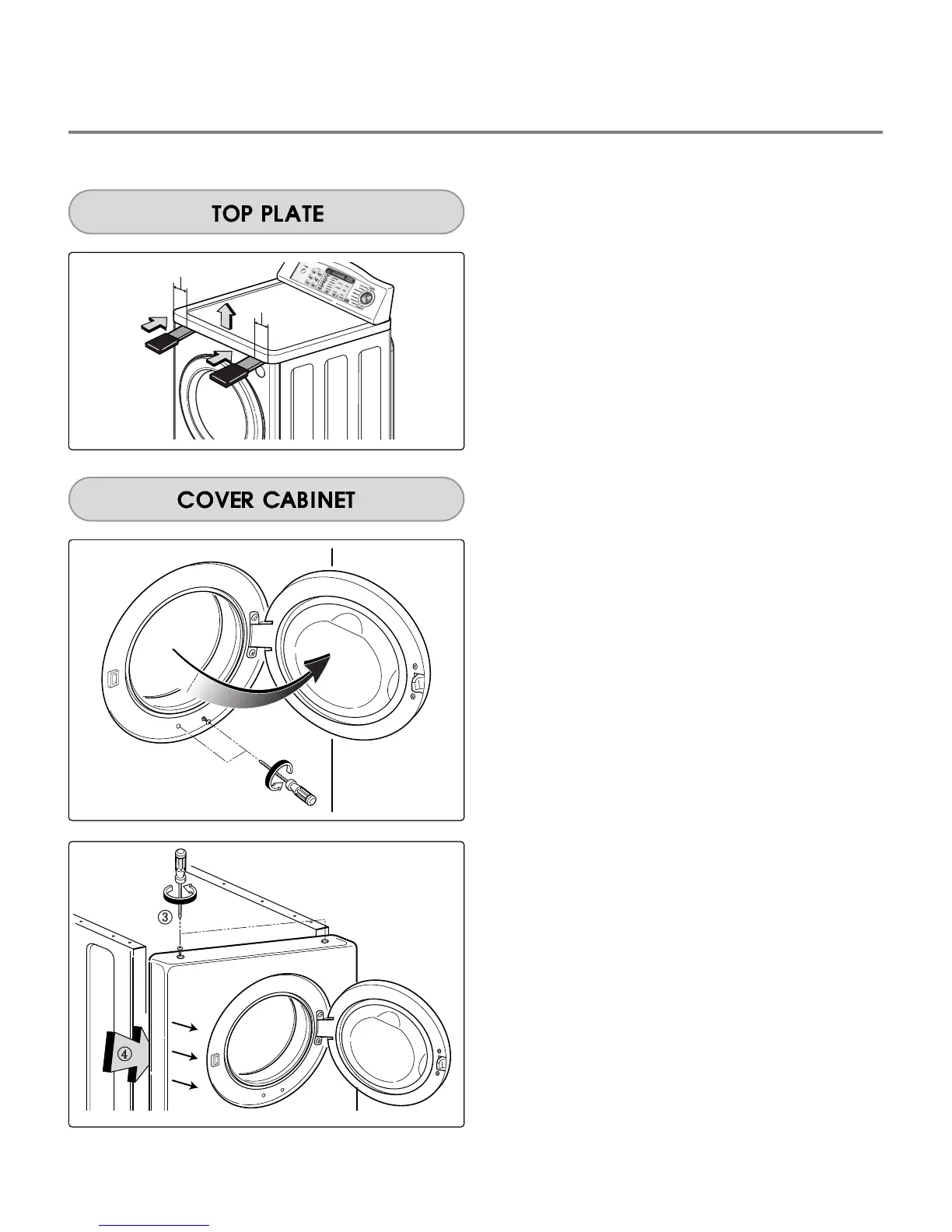

1.
Push backward using an opener and lift
the top plate.
7cm
7cm
1.
Open the top plate.
2.
Open the door, Remove 2 screws.
3.
Remove 2 screws form upper side.
4.
Pull the Cover Cabinet.
5.
Disconnect the door switch connector.
