17

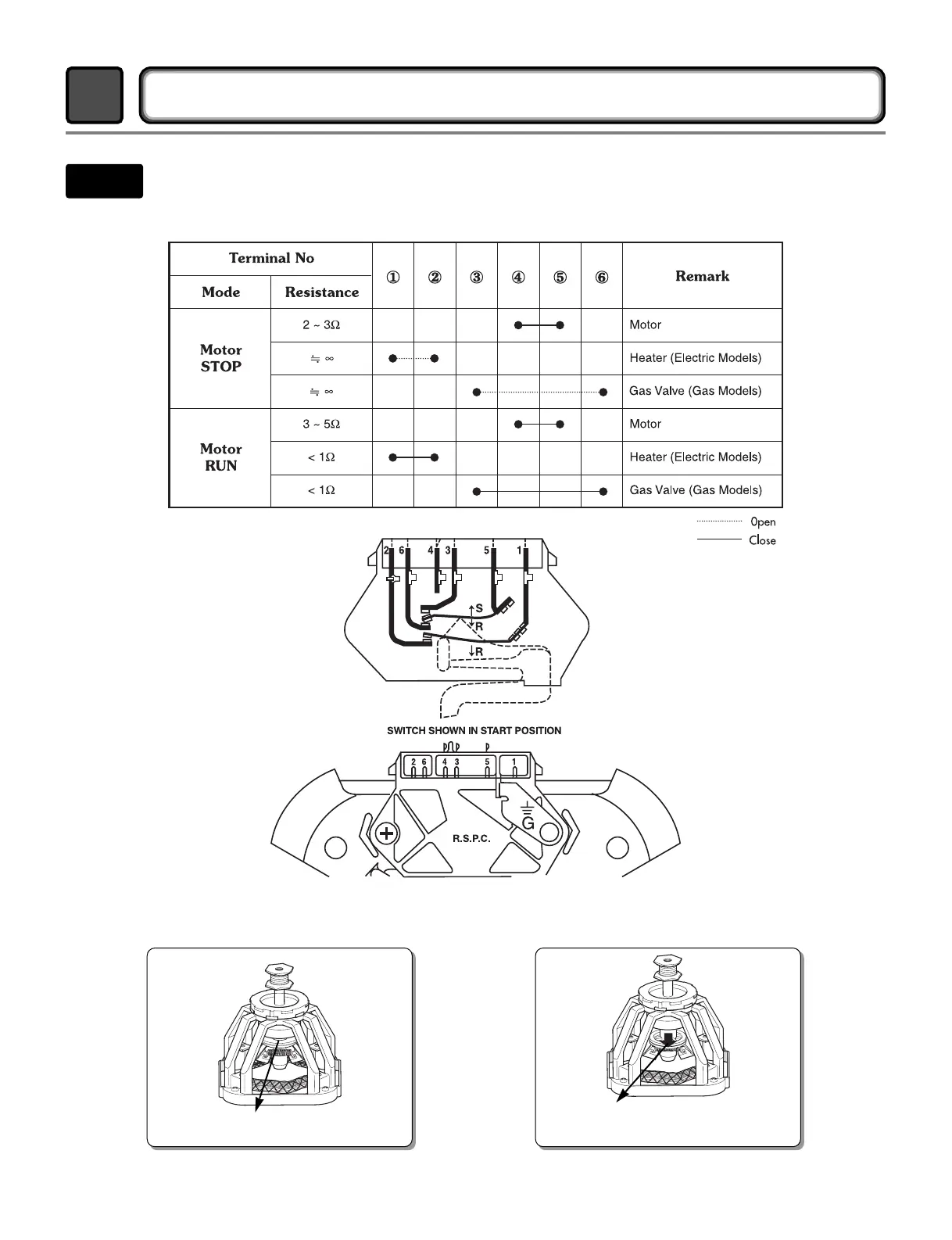

MOTOR DIAGRAM AND SCHEMATIC
6
󳥎
Contact On / Off by Centrifugal Switch
󳥎
STOP MODE
(When Motor does not operate)
󳥎
RUN MODE
(Motor operates)
When checking Component, be sure to turn Power off, then do voltage discharge sufficiently.
NOTE
Centrifugal switch
Centrifugal switch
(Pull Drive forward)
