LG DLEX3850 Series User Manual

10 INSTALLATION
INSTALLATION

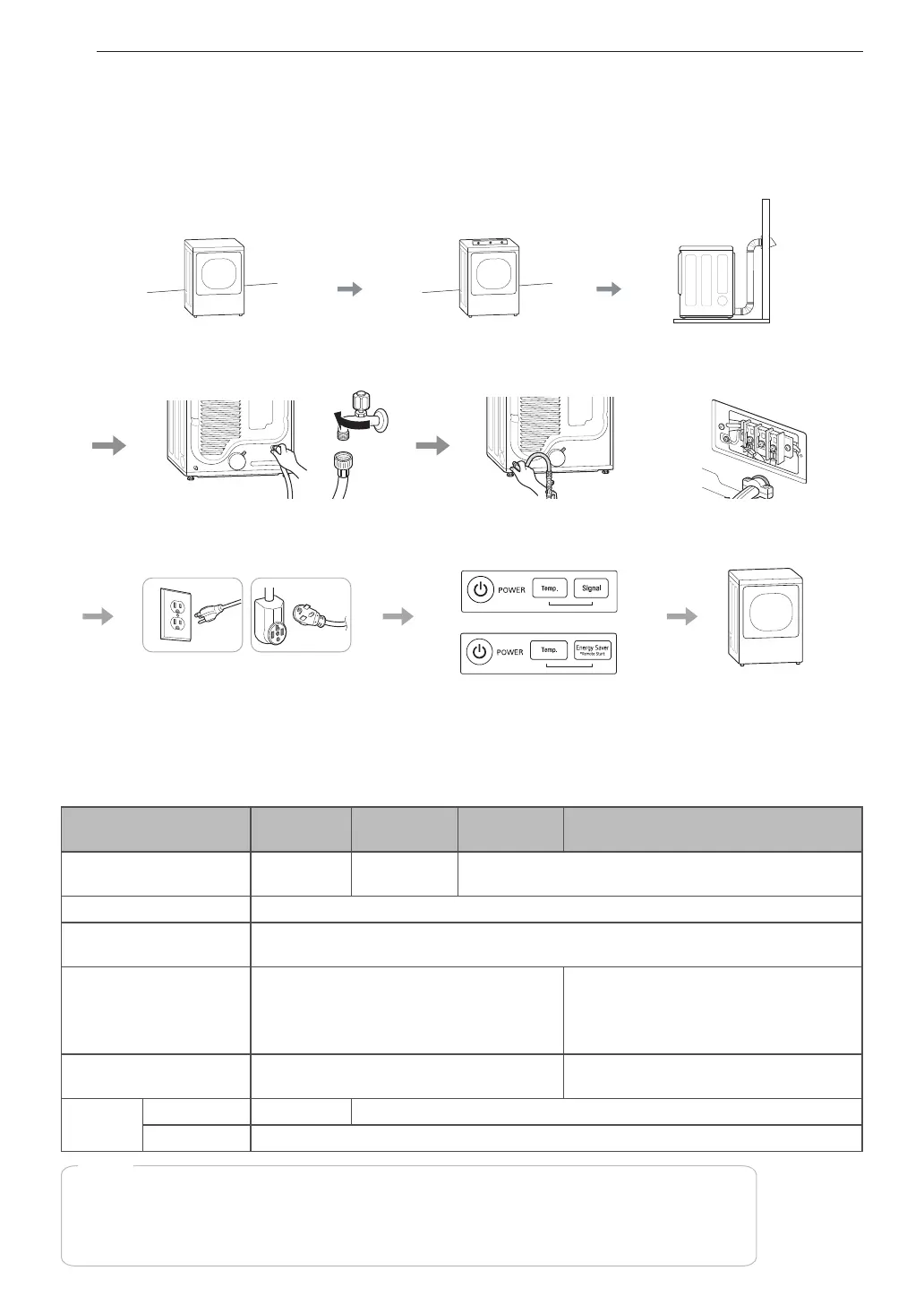

Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Check and choose the
proper location
Level the dryer Vent the dryer
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Dryer Models
DLE3600*,
DLG3601*
DLEX3850*,
DLGX3851*
DLEX4200*,
DLGX4201*
DLEX4500*, DLGX4501*
Description
Non-steam
Dryer
Steam Dryer Steam Dryer
Electrical requirements Please refer to the rating label for detailed information.
Gas requirements
NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC
LP: 8 - 13-inch (20.4 - 33.1 cm) WC
Dimensions
27” (W) X 30 1/8” (D) X 39” (H), 51 3/8” (D with
door open)
68.6 cm (W) X 76.5 cm (D) X 99 cm (H), 130.5
cm (D with door open)
27” (W) X 30” (D) X 39” (H), 51” (D with door
open)
68.6 cm (W) X 76.1 cm (D) X 99 cm (H), 129.7
cm (D with door open)
Net weight
Gas : 136.03 lb (61.7kg) - 139.34 lb (63.2kg)
Electric : 124.1 lb (56.3kg) - 127.4 lb (57.8kg)
Gas : 140.4 lb (63.7 kg) - 145.3 lb (65.9 kg)
Electric : 133.4 lb (60.5 kg) -138.2 lb (62.7 kg)
Drying
capacity
Steam Cycle - IEC 7.4 cu.ft. (8 lb/3.6 kg)
Normal Cycle IEC 7.4 cu.ft. (22.5 lb/10.2 kg)
Connect the Electric dryerConnect the Gas dryerConnect the inlet hose
(steam models)
Test runInstallation test
• Model numbers can be found on the cabinet inside the door.
• The images in this manual may be different from the actual components and accessories
which are subject to change by the manufacturer without prior notice for product improvement
purposes.
NOTE
Electric dryerGas dryer
Plug in the power cord
DLE3600*, DLG3601*DLE3600*, DLG3601*
DLEX4200*, DLGX4201*, DLEX3850*, DLEX4200*, DLGX4201*, DLEX3850*,
DLGX3851*, DLEX4500*, DLGX4501*DLGX3851*, DLEX4500*, DLGX4501*

LG DLEX3850 Series Specifications

General

Brand	LG
Model	DLEX3850 Series
Category	Dryer
Language	English
