10. DISASSEMBLY INSTRUCTIONS

DISPLAY PWB ASSEMBLY

DRAWER

CONTROL PANEL

ASSEMBLY

CONTROL PANEL

ASSEMBLY

CONTROLPANELASSEMBLY

DISPLAYPWBASSEMBLY

✽ Be sure to unplug the machine before disassembling and repairing the parts.

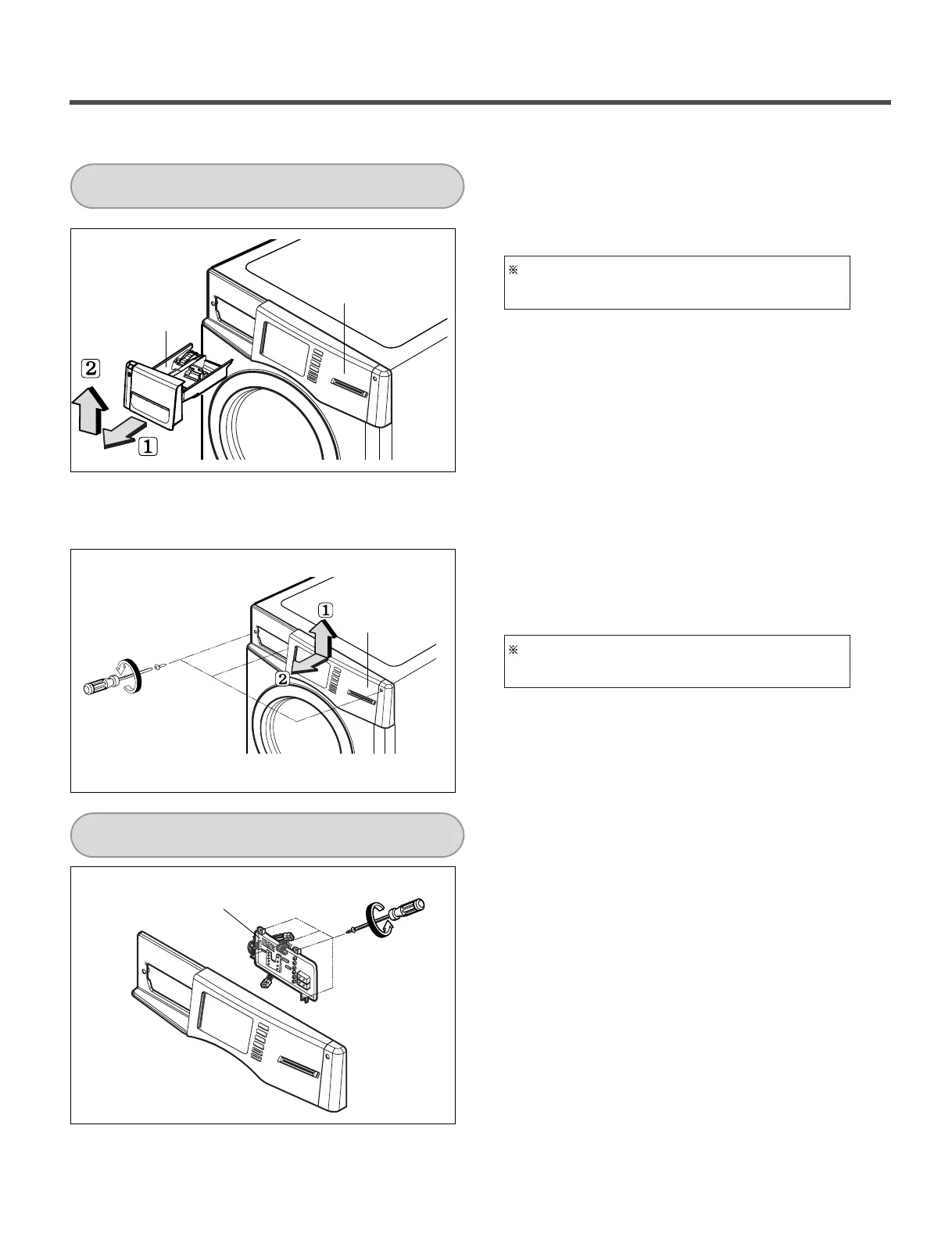

1. Pull out the DRAWER.

Do not pull out the DRAWER too forcefully as it

can be broken.

2. Unscrew 3 screws

3. Disassemble the CONTROL PANEL ASSEMBLY

- Pull out the CONTROL PANEL .

Do not pull out the CONTROL PANEL too

forcefully as it can be broken.

4. Disconnect the DISPLAY PWB ASSEMBLY

connector from CABLE (HARNESS).

1. Disassemble the CONTROL PANEL ASSEMBLY

(refer to page 28)

2. Unscrew the 4 screws from the CONTROL PANEL

ASSEMBLY.

3. Disassemble the DISPLAY PWB ASSEMBLY.

⇩
