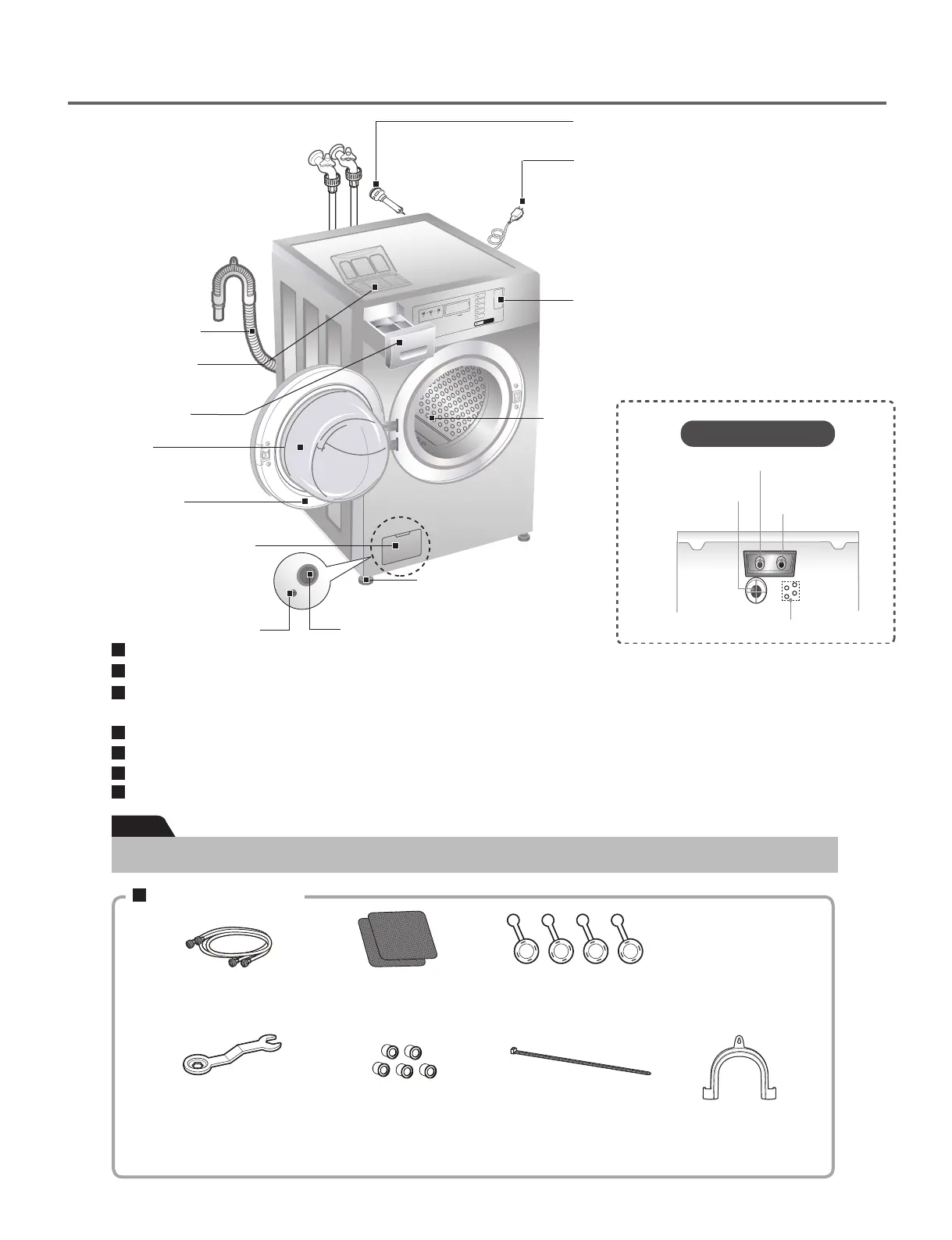

4. PARTS IDENTIFICATION
Drain Hose
Dispenser
(for single model)
Dispenser
(for stack model)
Door
Lower Cover Cap
Drain Plug
Drain Pump Filter
Adjustable Feet
Power Plug
Control Panel
Shipping Bolts (4)
Cold Water Inlet
Hot Water Inlet
Air Vent for Safety
·
If the supply cord is damaged,
it must be replaced by the
manufacturer or an authorized
service technician in order t
avoid a hazard.
Name: Front-loading Washing Machine
Power supply: 120V, 60Hz
Size: 70 cm (W) X 77 cm (D) X 98.3 cm (H), 139.6 cm (D with door open)
27”(W) X 301/4”(D) X 3811/16”(H), 52”(D with door open)
Weight: 190 lbs. (87 kg)
Wash capacity: 3.7 cu.ft (IEC:4.2 cu.ft)
Spin speed: 1200 rpm max.
Permissible water pressure: 20 - 120 psi (138 ~ 827kPa)
Back of Washer
Specifications subject to change by manufacturer.
Note
Accessories
Hot and Cold Water
Hoses
Elbow Bracket
(for securing
drain hose)
Tie Strap
(for securing drain
hose)
Hole cap (5)
(for securing auto
dosing hole)
Wrench
(for removing shipping
bolts and adjusting
leveling feet)
Caps (4)
(for covering shipping
bolt holes)
Non-skid pads
Drum
7
Magnet Door
Plunger
(see page 5)
Auto dosing hole
