LG GSXV90MCDE User Manual

16
INSTALLATION
CAUTION
• Place the door on a non-scratching surface with
the inner side facing up.
Refitting the Fridge and Freezer
Door
Refit the doors in the reverse sequence of their
removal once the appliance has been passed
through all access doors.
CAUTION
• Install the fridge door first.
NOTE

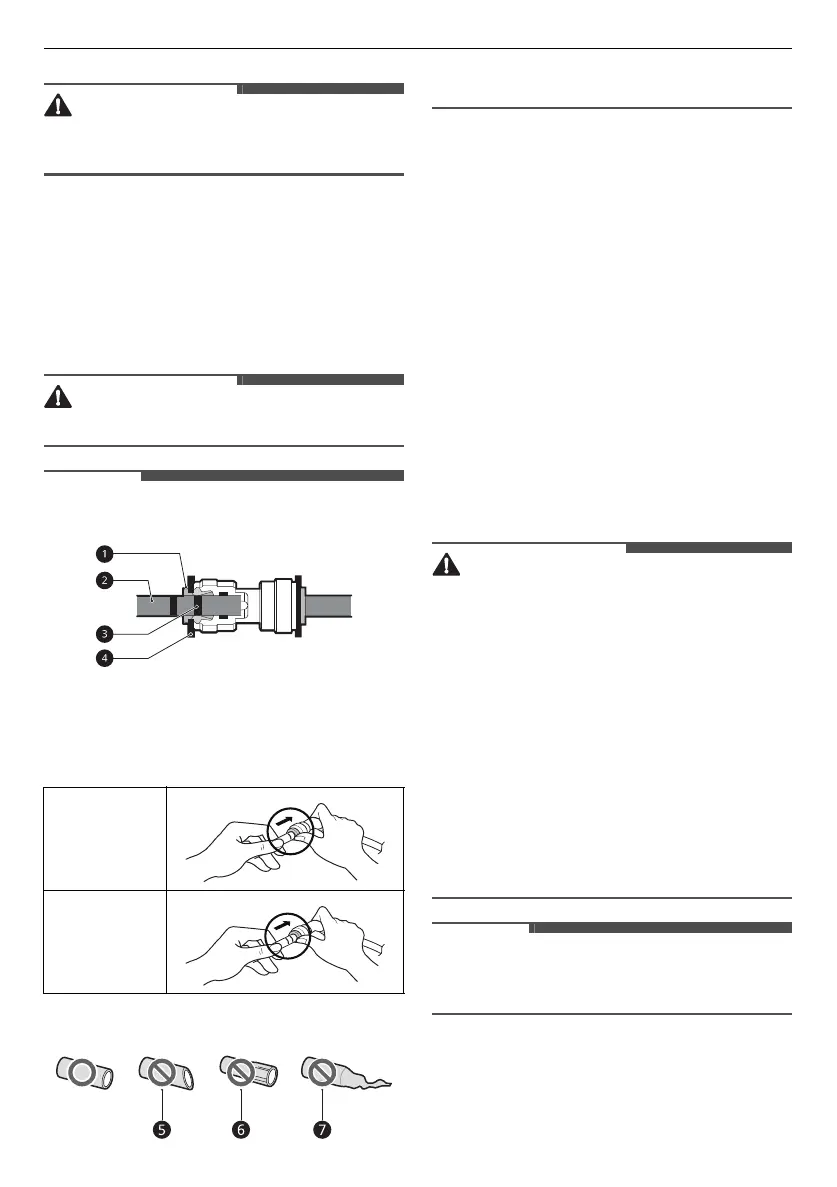

• Disassembling/Assembling the water lines
a Collet b Tube c Insert line d Clip
• Gently insert the tube until only one of the tube’s
lines is visible. Pull on the tube to make sure that
it is tightly fastened.
• If the water tube end is damaged, it should be
trimmed to ensure it does not leak when refitted.
e Not straight f Damaged g Stretched
Connecting the Water Line
This section is applied only to models with plumbed
water or ice dispenser.
Water Supply Requirements
A cold water supply with water pressure between
138 kPa and 827 kPa (1.4-8.4 kgf/cm²) is required to
operate the water dispenser. If the refrigerator is
installed in an area with low water pressure (below
138 kPa), you can install a booster pump to
compensate for the low pressure.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 138 kPa to 827 kPa (1.4-8.4 kgf/
cm²)
WARNING
• Unplug the appliance before carrying out any
work on connecting the water line. Failure to do
so may cause electric shock.
• Only connect the water line to a cold water
supply. Failure to do so may cause the water
filter to malfunction. Water hammer (water
banging in the pipes) in house plumbing can
cause damage to appliance parts and can lead to
water leakage or flooding.
• Connect to potable water supply only.
• Connecting the water line must only be installed
by a qualified plumber and in accordance with
local legislation and regulations governing
water quality.
NOTE
• This water line installation is not covered by the
appliance warranty.
Correct
Incorrect
global_main.book.book Page 16 Monday, May 3, 2021 1:51 PM

LG GSXV90MCDE Specifications

General

Door hinge	Left/right
Control type	Touch, Wireless
Display type	LED
Door assembly	-
Product color	Black
Product design	American door
Built-in display	Yes
Door gasket type	Push-in gasket
Housing material	Metal
Shelves material	Tempered glass/Plastic
Shelf finish type	Metallic frame
Custom panel-ready	No
Appliance placement	Freestanding
Refrigerating medium	R600a
Number of compressors	1
Current	2 A
Connected load	325 W
Power plug type	Type G
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	350 kWh
Noise level	36 dB
Climate class	T
Cooling system	Dynamic (fan-assisted)
Water filter type	Faucet water filter
Water supply type	External water supply
Total net capacity	635 L
Water tank capacity	- L
Total gross capacity	674 L
Minimum operating temperature	16 °C
Fridge net capacity	416 L
Fridge gross capacity	424 L
Fridge temperature range	1 - 7 °C
Number of vegetable drawers	2
Fridge number of shelves/baskets	4
Star rating	4*
Freezer position	Side-placed
Freezing capacity	12 kg/24h
Freezer net capacity	219 L
Freezer gross capacity	250 L
Freezer temperature (min)	-23 °C
Storage time during power failure	2 h
Cord length	1.9 m
Package depth	770 mm
Package width	972 mm
Package height	1891 mm
Package weight	152000 g
Wine rack	Yes - 4 Bottles
LED indicators	Temperature, WLAN
Overall height	1860 mm
Country of origin	China
Number of drawers	2 drawer(s)
Dimensions (WxDxH)	913 x 735 x 1790 mm
Power requirements	Mains
Cooling system type	Total No Frost
Operating temperature (T-T)	16 - 43 °C
Installation compartment dimensions (WxDxH)	1013 x 670 x 1840 mm
Doesn't contain	Chlorofluorocarbon (CFC), Hydrofluorocarbon (HFC)
Quantity per pack	1 pc(s)
UK Trade Tariff code	8418102099

Weight and Dimensions

Depth	735 mm
Width	913 mm
Height	1790 mm
Weight	141000 g
Installation compartment depth	670 mm
Installation compartment width	1013 mm
Installation compartment height	1840 mm
