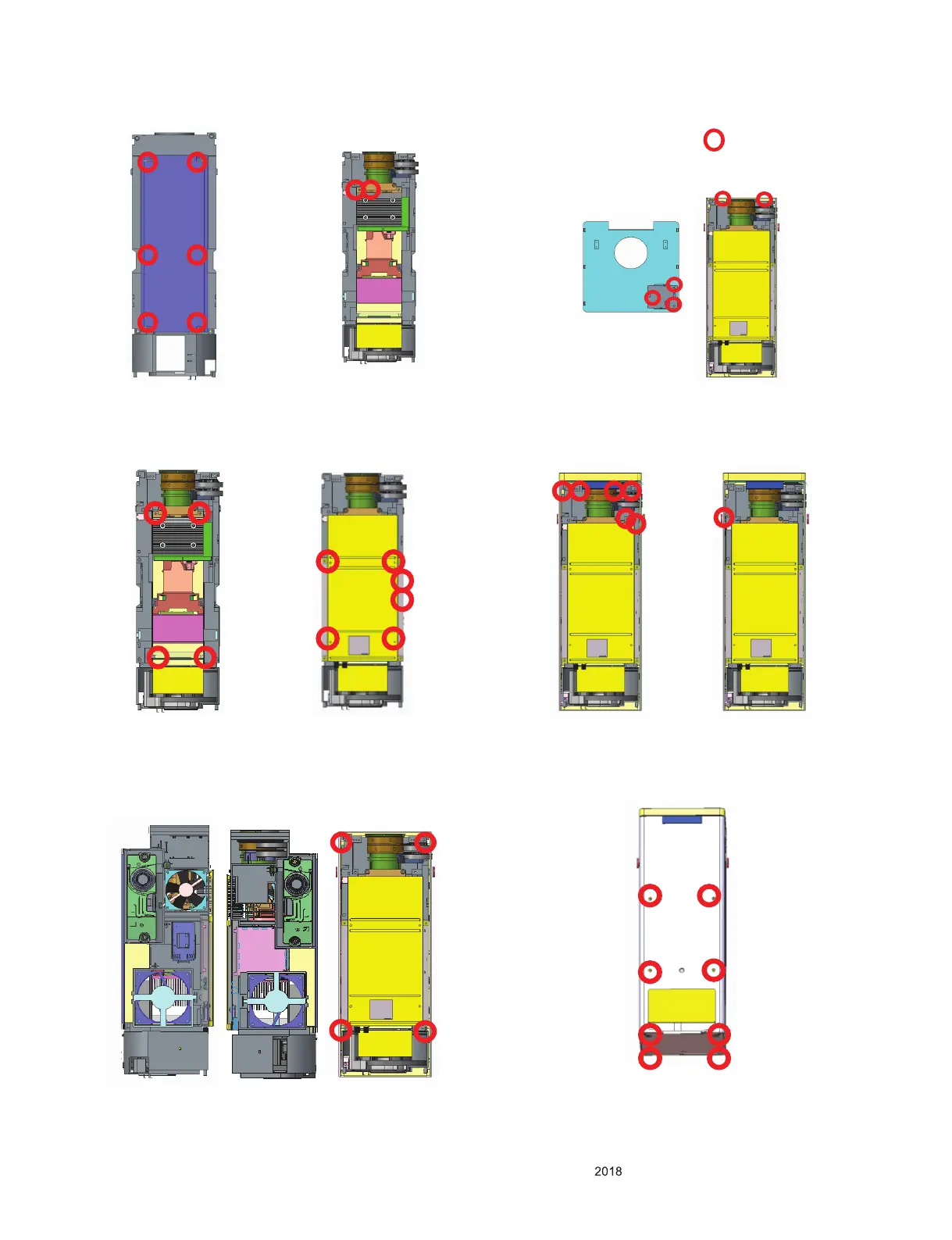

ASSEMBLY GUIDE
1. Frame + PSU + PSU shield
- Φ3 X L12 Screw 6ea assemble
2. Frame + handle hinge
- Φ3 X L12 Screw 2ea assemble
3. Engine shield , LD Board ,Engine Assy
cord reel, reel housing
- Φ3 X L12 screw 4ea assemble
4. Main PCB, ceiling BKT
- Φ3 X L12 screw 6ea assemble
7. Top case+ control Assy
- Φ2 X L4 screw 3ea assemble
8. Top case
- Φ2.6 X L8 screw 2ea assemble
9. Mirror assy, Handle Pin,Handle
- Φ3 X L12 screw 6ea assemble
10.handle + handle hinge
- M3 X 6 screw 1ea assemble
11. Rear case, Cord cover
- M4x7 screw 4EA, 10 points hook
12. Bottom case assy, Jack cover
- Φ3 X L12 screw 4ea assemble
5. Fan, Wi-Fi, fan assemble
6. Front case + frame assy
- Φ3 X L12 screw 4ea assemble
