Directview LCD Training 69 CableCARD
CABLECARD

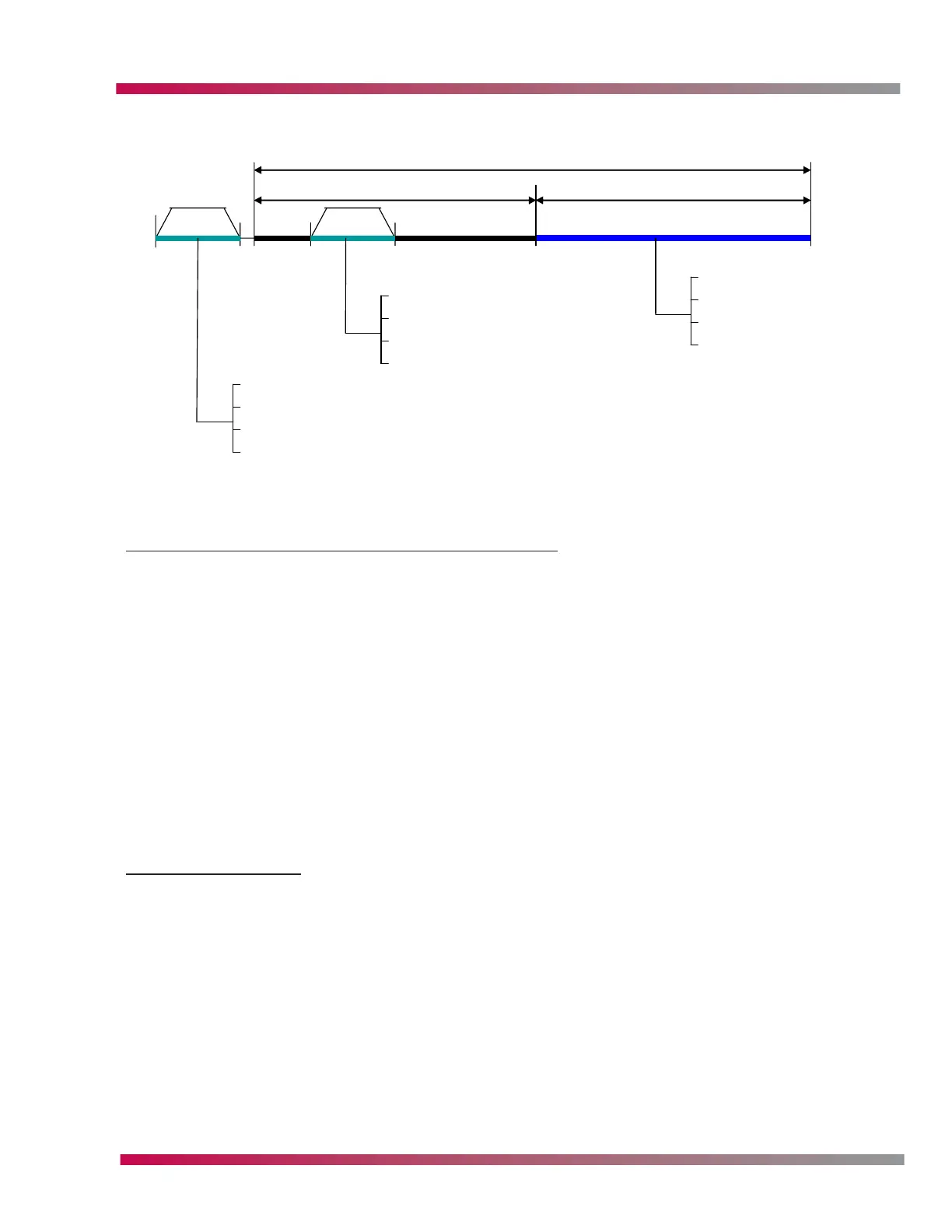

IN-BAND/OOB SPECIFICATION
In Band
5 MHz
42Mhz
70Mhz 130Mhz 864Mhz450/550Mhz
Analog FAT/QAM
54Mhz
OOB RDC
OOB FDC
Upstream
Downstream
QPSK
QPSK
Bit Rate : 1.544/2.048/3.088Mbps
Bit Rate : 1.544/2.048/3.088Mbps
MPEG-2
RS Coding
Interleaving
Trellis Code 64/256QAM
OOB OOB
1. HeadEnd Sends Cable Channel Info (SI)
through this band
Frequency
1. DCR doesn’t use this band because DCR has
Uni-directional, downstream functionality only.
CABLECARD AUTHORIZATION & VALIDATION PROCESSES
• In order to activate CA service (called low-value service) and to receive Cable channel map,
“Authorization process” is needed.
* Serial number and CableCARD ID are needed.
* During this process, CableCARD reset may occur.
* After this process is finished successfully, user can navigate cable channel map & can watch
CA Encrypted services to which the user subscribes.
• In order to activate additional CP services (called high-value service), a “Validation process” is
needed.
* Host/CableCARD ID is needed.
* HeadEnd sends Validation message through OOB channel.
* After Validation message is received by the CableCARD, the user can watch CP Encrypted
services also.
DCR FUNCTIONALITIES
• Conditional Access Function
• Copy Protection Function
• Cable menu & MMI (Man Machine Interface) Function
• Digital Certificates
• CableCARD reset Function
• EAS (Emergency Alert System) Function
• Host Diagnostics Function
• CableCARD Firmware Upgrade Function
• Error Reporting Function
