HANDLE REMOVAL
(CONT.)
HANDLE REINSTALLATION
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL
REFRIGERATOR DOOR REMOVAL
wWARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator before installing. Failure to do so could result in death or
serious injury.
• Do not put hands or feet or metal sticks into the air vents, base grille, or bottom of the refrigerator. You may
be injured or receive an electrical shock.
• Be careful when you work with the hinge, base grille, and stopper. You may be injured.
Before you begin, remove food and bins from the doors. If your entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator door and move the refrigerator sideways through the doorway.
wWARNING
When the customer takes apart the handle or
assemble it from a refrigerator, please be cautious of
following things.
• Hold the handle with your own hand to make sure
not to drop the handle to the floor or instep while
taking apart the handle from a refrigerator.
• Do not swing the handle towards people or animals
after taking apart the handle.
• Insert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
• Check if there's any gap between the door and
handle after fixing the handle.

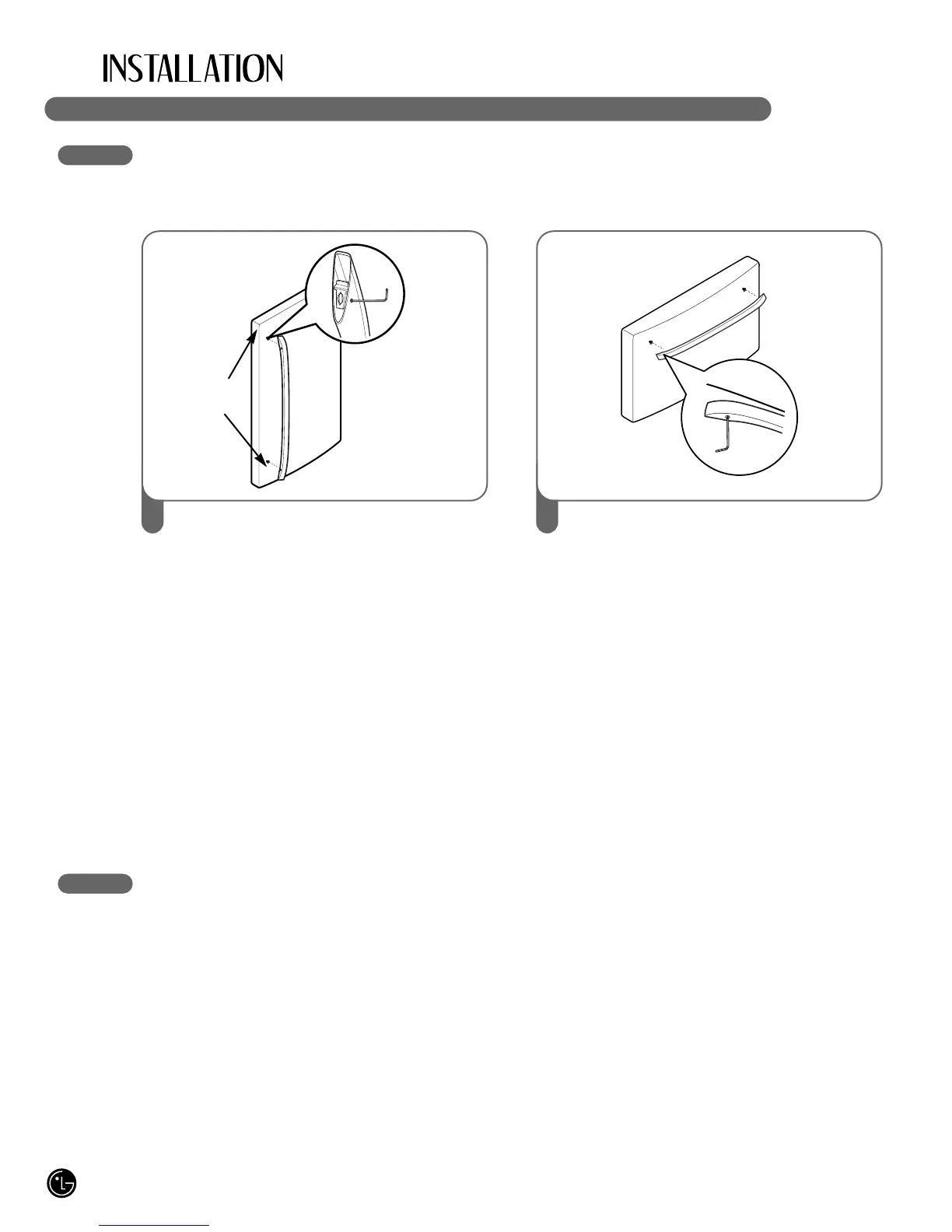

Place the handle on the door by aligning handle
footprints to fit mounting fasteners and tighten the
set screws with a 2.5 mm (3/32") Allen wrench.
NOTE: If the handle mounting fasteners need to
be tightened or removed use a 1/4" Allen wrench
1
Place the handle on the door by aligning handle
footprints to fit mounting fasteners and tighten the
set screws on the bottom of the handle with a 3.1
mm (1/8") Allen wrench.
NOTE: If the handle mounting fasteners need to
be tightened or removed use a 1/4" Allen wrench.
2
Mounting
Fasteners
To Next Page
