REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
REFRIGERATOR DOOR REINSTALLATION

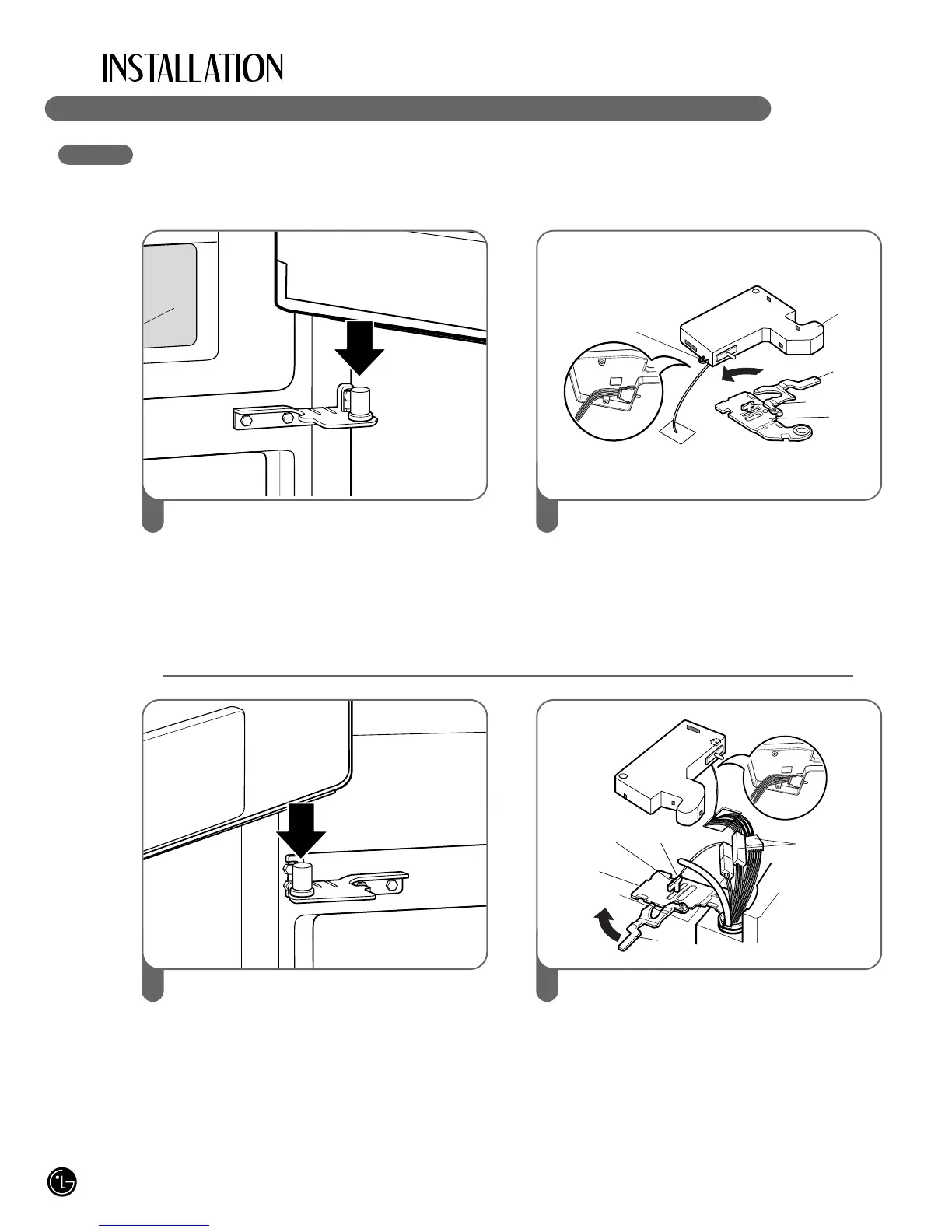

Install the right-side door first.
• Lower the door onto the middle hinge pin as
shown.
• Make sure the plastic sleeve is inserted in
the bottom of the door.
1 • Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever
(3) counterclockwise to secure the hinge.
• Hook the tab on the door-switch side of the
cover (4) under the edge of the wire opening
in the cabinet top. Position the cover into
place. Insert and tighten the cover screw (5).
2
Install the left-side door.
• Lower the door onto middle hinge pin.
3 • Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever (3)
clockwise to secure the hinge.
• Install the grounding screw (4) and connect
all the wire harnesses (5).
4
