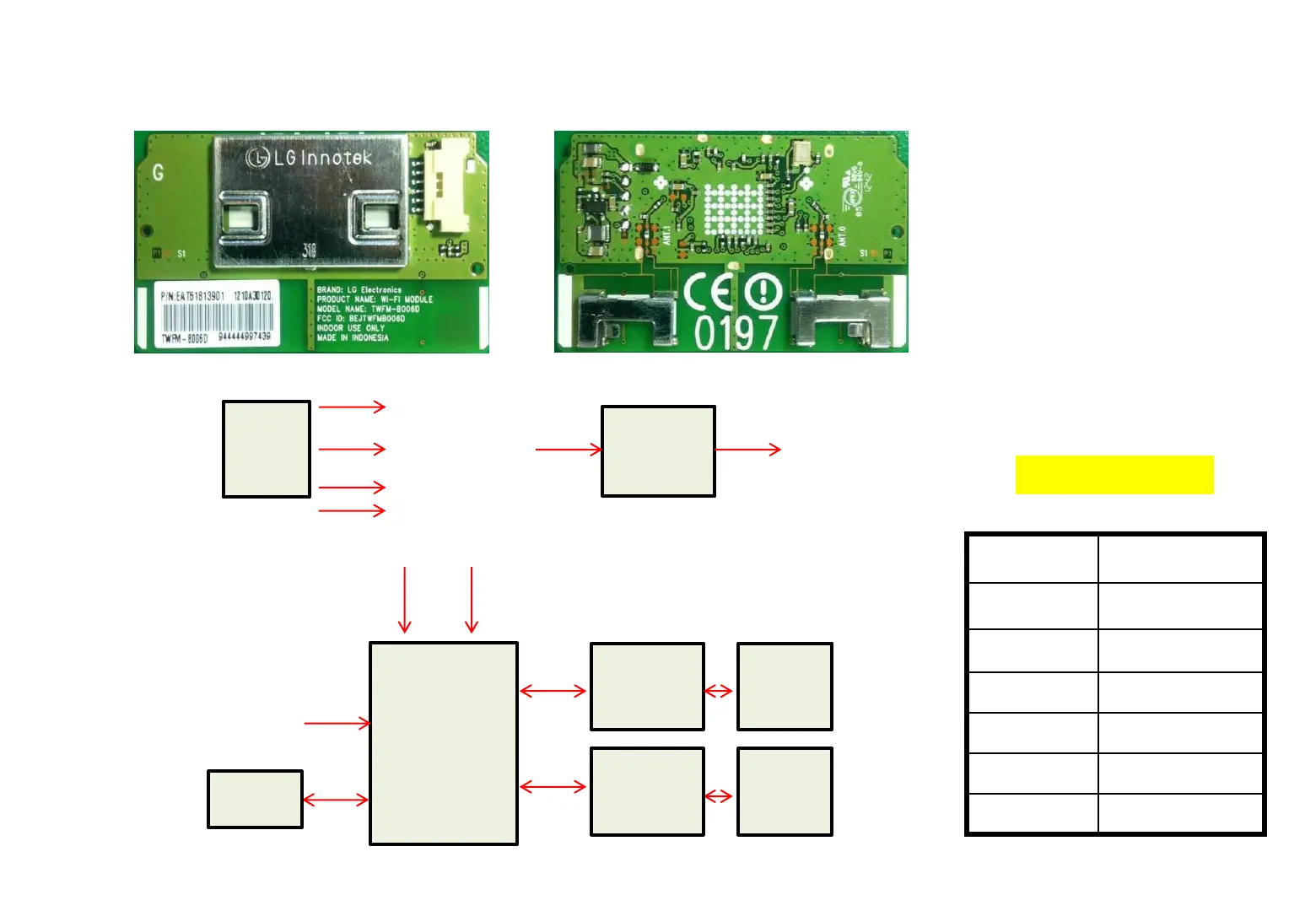

WIFI Built in ass’y feature
PIN USB interface
1 Vcc
2 DM
3 DP
4 GND
5 WOW
6 NC
- Pin map
BCM43236B
Wafer
6pin 1.25mm
3.3V
USB
DP, DN
GND
USB
DP, DN
DCDC
EUP3010
Crystal
20MHz
3.3V 1.2V
3.3V 1.2V
Switch
DM3030
Antenna
2.4G/5G
Antenna
2.4G/5G
RX/TX
RX/TX
WOL
Switch
DM3030
Block diagram
48
30
