15
2 Type A Screws 1 Type B Screw 1 Type C Screw

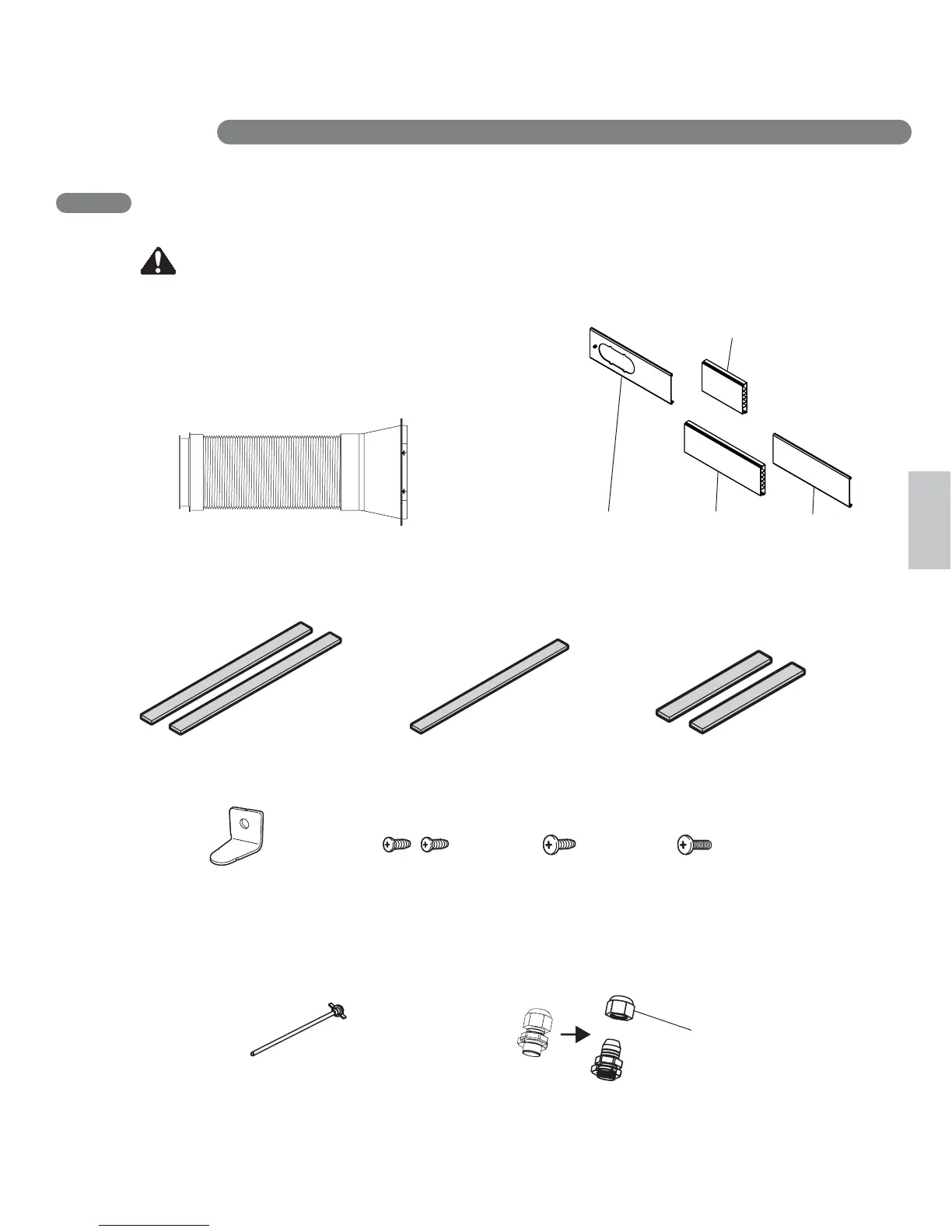

The following components are used for window venting.
Not all components are used for every installation.
EXHAUST COMPONENTS
Window Installation Kit (includes 1 Window
Vent Panel and 3 Extension Panels)
Flexible Venting Hose
2 Type A Foam Seals
(Adhesive)
Diffuser
Security Bracket
1 Type B Foam Seal
(Non-adhesive)
2 Type C Foam Seals
(Adhesive type-Shorter)
English
INSTALLATION INSTRUCTIONS
PREPARING FOR INSTALLATION
WARNING The air conditioner is heavy! Use two or more people to
lift and install the unit! Failure to do so could result in back injury or other injuries.
1 Window Vent Panel
Panel A (18’’)
3 Extension Panels
Panel C (17’’)
Panel D (17’’)
Panel B (9’’)
Fixing Nut
Additional Parts (For Heating Drainage)
Drain Pipe
(In The Accessory Box)
(On the Vent Panel)
Nut Cover
To Next Page
