- 17 -
4. PARTS

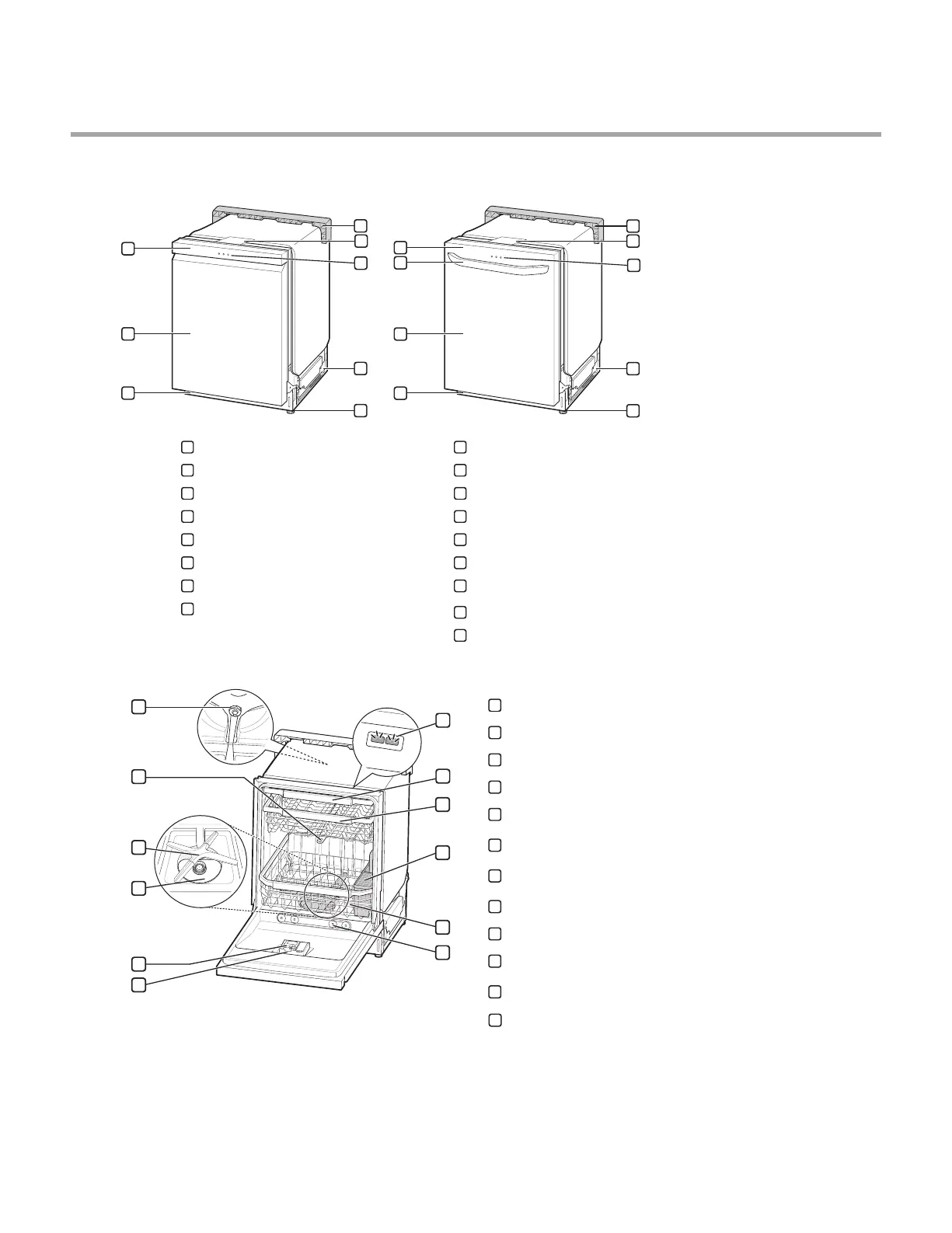

Exterior Parts
2
3
7
1
4
8
6
5
1
Control Panel & Door Handle
2
Front Cover
3
Lower Cover
4
Shipping Brace
5
Safety Cover
6
SignalLight (some models)
7
Base
8
Leveling Feet
3
4
8
1
5
9
2
7
6
1
Control Panel
2
Door Handle
3
Front Cover
4
Lower Cover
5
Shipping Brace
6
Safety Cover
7
SignalLight (some models)
8
Base
9
Leveling Feet
Interior Parts
10
6
11
12
5
9
2
8
1
3
4
7
1
Top Wash Impeller
2
Upper Spray Arm
3
Lower Spray Arm
4
Filtration System
5
Detergent and Rinse Aid Dispenser
6
Drying Vent Cover
7
Tub Light (some models)
8
Cutlery Rack (some models)
9
Upper Rack
10
Silverware Bask et
11
Lower Rack (appearance may vary)
12
Steam nozzle OGP
