LG LSDT9908 Service Manual

For Authorized Service TechniciansFor Authorized Service Technicians
- 33 -

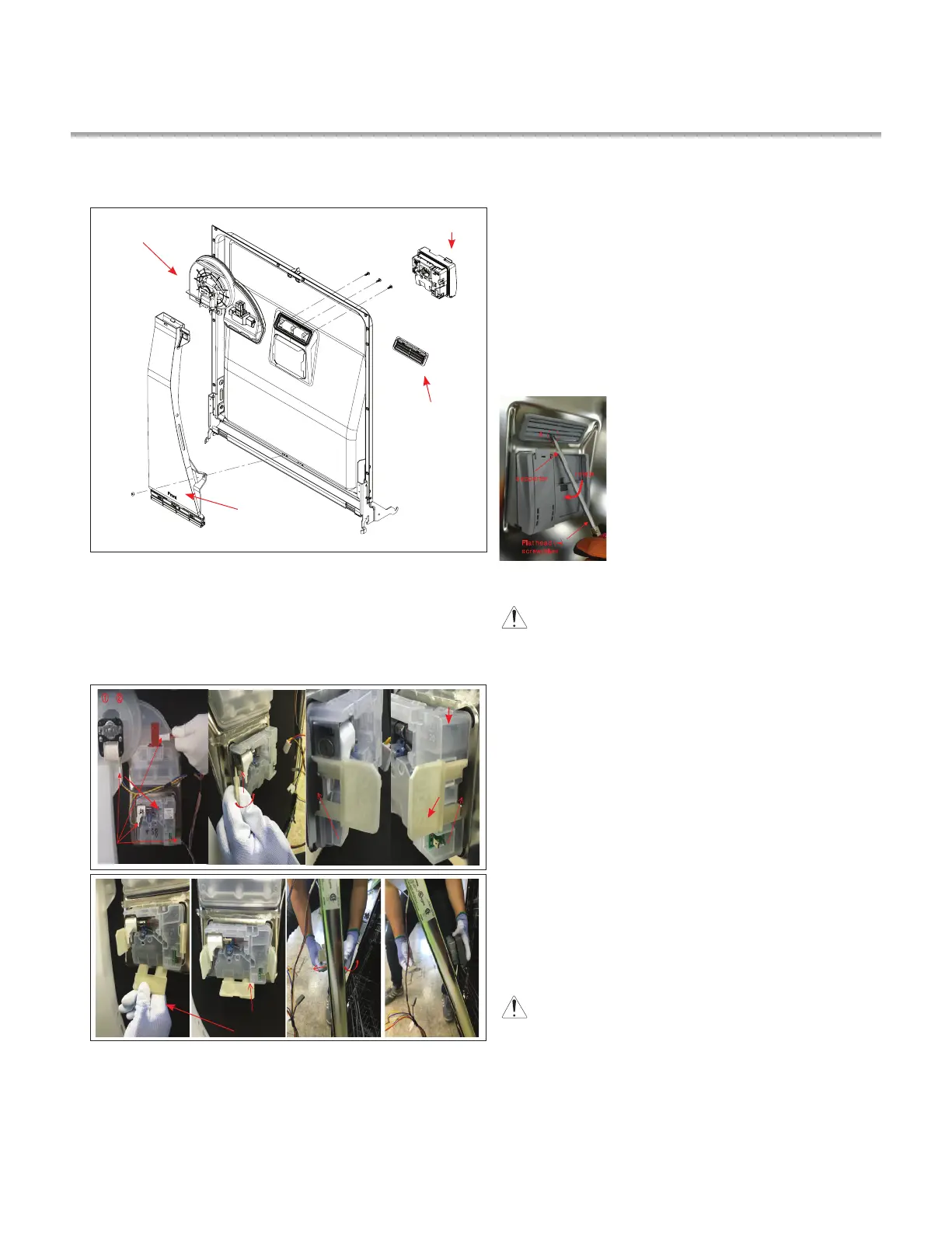

2-3. Door Liner Assembly
Fan Motor
Blower Cover
Dispenser
Vent
Blower Assembly
① Remove the screw.
② Remove the vent from Fan motor.
③ Disconnect the connector.
④ Open the Door.
⑤ Remove the Blower cover
- Insert flat head screwdriver in hole (A).
- Rotate flat head screwdriver slowly.
ͷΝΒΥΙΖΒΕ
Τ
ΔΣΖΨΕΣΚΧΖΣ
ΤΦΡΡΠΣ ΥΖΣ
ΣΠΥΒΥΖ
Ͳ
⑥ Remove the screws shown.
CAUTION: Blower cover is easily
damaged.
Dispenser Assembly
)ODQJH/HIW
)ODQJH5LJKW
¥¥¥
Connector
~
ྜ
Dispenser
ྜ
ྜ
)ODQJH%RWWRP
¦¦
§§
Using Dispenser Service Jig
① Close the Door.
② Disconnect Electrical wire connectors
from dispenser.
③ Insert the two side pieces into the inside
of the dispenser.
④ Insert the bottom piece.
⑤ After all three pieces have been inserted,
open the door and pull the dispenser
from the bottom up and pull out.
When pulling the dispenser out from the
door, lift the bottom of the dispenser
slightly from the inside, then remove the
bottom jig piece.
CAUTION: Watch pinch points to avoid
hand injuries.
Vent
Fan Motor
Dispenser
Blower Cover
