EXTERNAL EQUIPMENT SETUP
CONNECTING WITH A EURO SCART CABLE
Scart
Input Output
Video Audio RGB Video, Audio
AV1
O O O
Analogue TV, Digital TV
Output Type
Current
input mode
l
AV1
(TV Out)
AV1
(When DTV scheduled recording is in
progress using recording equipment.)
Digital TV Digital TV
O
Analogue TV, AV Analogue TV
O
(The input mode is converted
to DTV.)
Component/RGB Analogue TV
HDMI Analogue TV
NOTE
► Any Euro scart cable used must be signal shielded.
► TV Out : Outputs Analogue TV
or Digital TV signals.
1

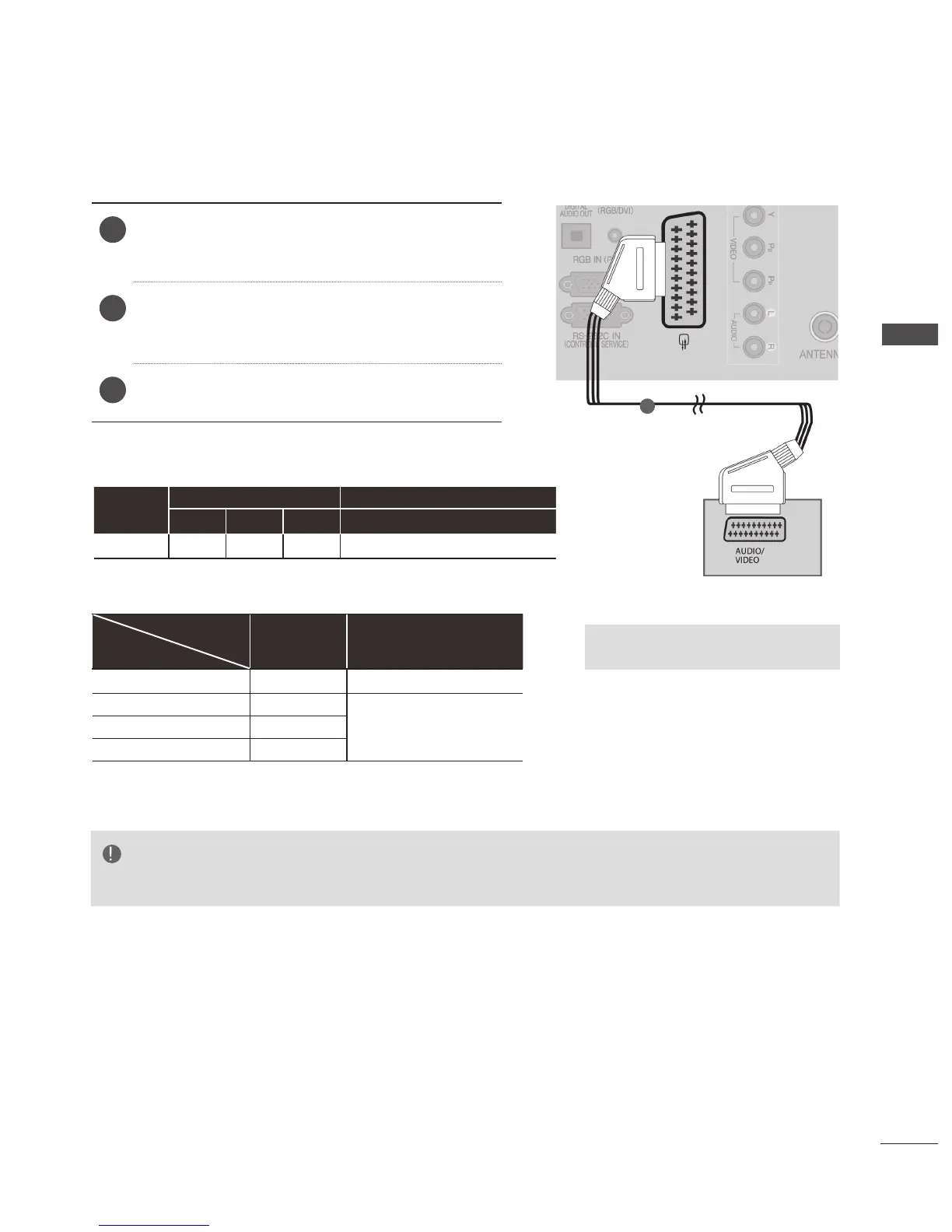

Connect the Euro scart socket of the external
equipment (DVD, VCR, etc.) to the AV1 Euro
scart socket on the TV.
2
Turn on the external equipment.
(Refer to the external equipment's manual for
operating instructions.)
3
Select AV1 input source using the INPUT but-
ton on the remote control.
