LG M2262D User Manual

19
EXTERNAL EQUIPMENT SETUP
VCR SETUP
■
To avoid picture noise (interference), leave an adequate distance between the VCR and the set.
■
If a user uses 4:3 picture format for a long time, an afterimage may remain on the sides of the screen for a
short time.

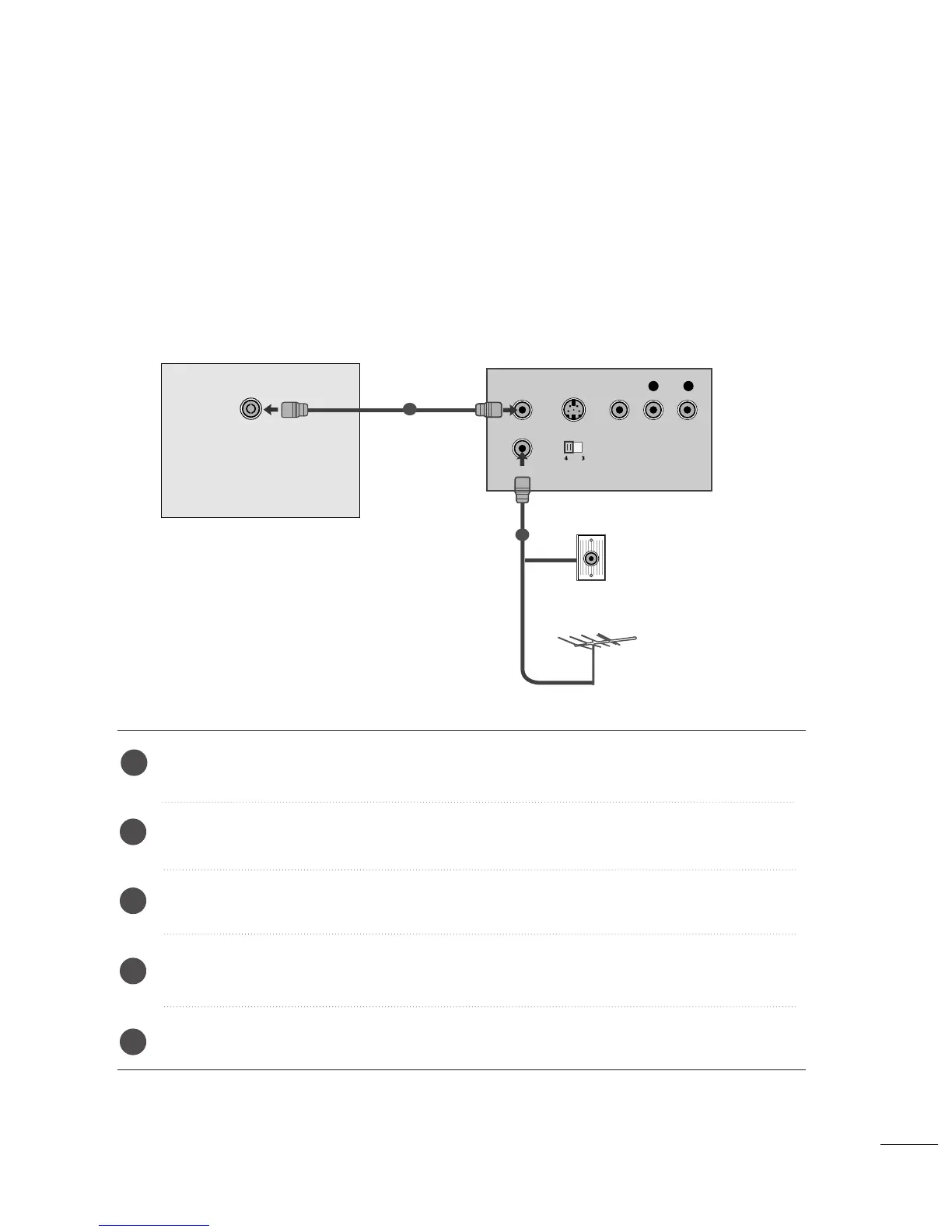

OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
ANTENNA/
CABLE IN
AV 1 AV 2
Wall Jack
Antenna
1
2
When connecting with an antenna
Connect the RF out socket of the VCR to the antenna socket of the set.
Connect the antenna cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired channel number using the ‘Manual channel tuning’ section.
Select the Channel number where the VCR channel is stored.
Press the
PPLLAAYY
button on the VCR.
1
2
3
4
5

LG M2262D Specifications

General

Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Viewable size diagonal	546.1 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Power requirements	90 – 264 V, 47/63 Hz
Display viewable area (HxV)	476.6 x 268.1 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	53 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	193.5 mm
Width (without stand)	519.8 mm
Height (without stand)	400.5 mm
Weight (without stand)	4700 g
