EXTERNAL EQUIPMENT SETUP
DVD SETUP

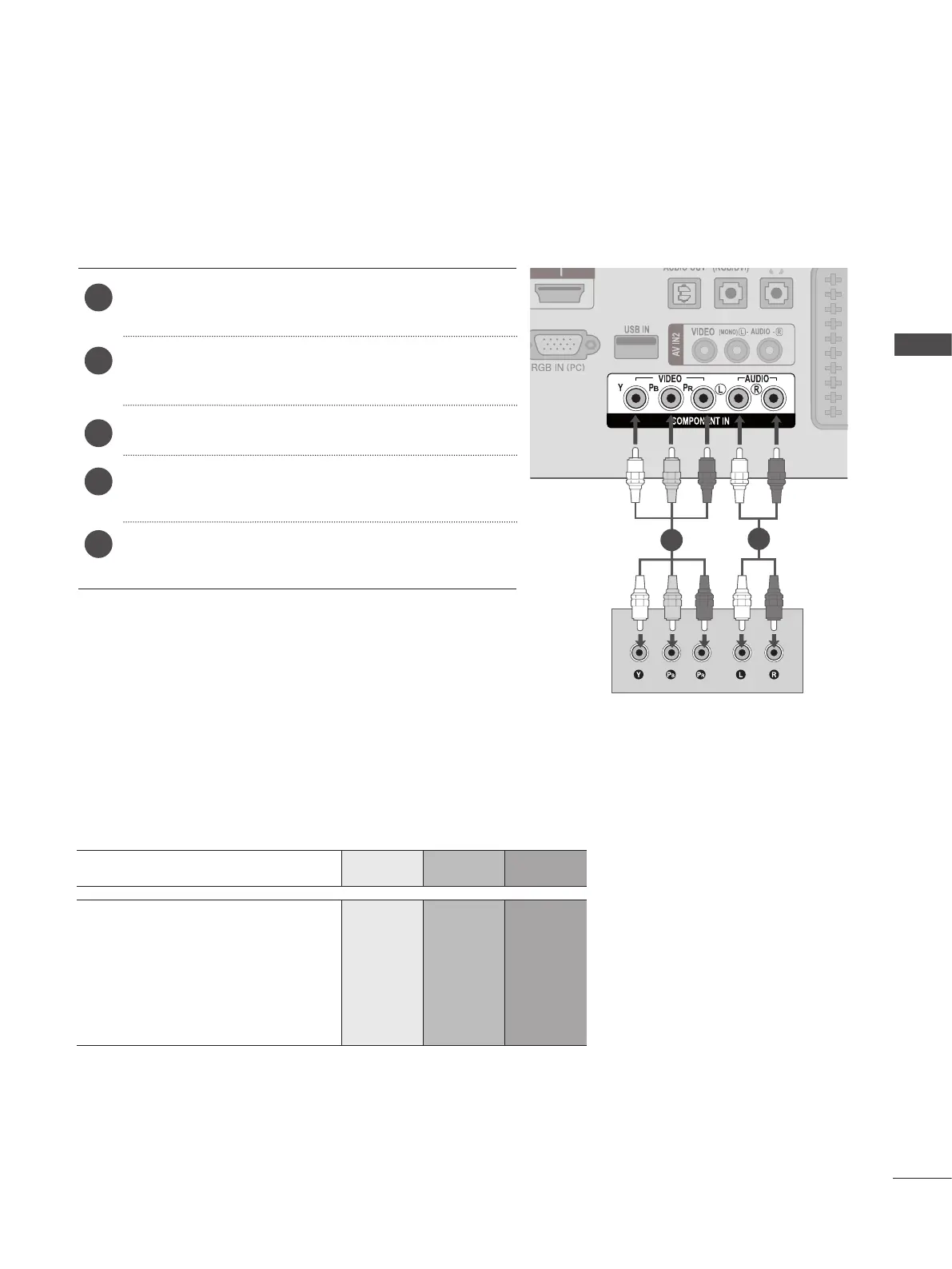

Connecting with a component cable
Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT IN VIDEO jacks on the SET.
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO jacks on the SET.
Turn on the DVD player, insert a DVD.
Select Component input source using the INPUT
button on the remote control.
Refer to the DVD player's manual for operating
instructions.
1
2
3
4
5
Component Input ports
To achieve better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the SET Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
