3. Installation of outdoor unit
Part 3 Design and installation

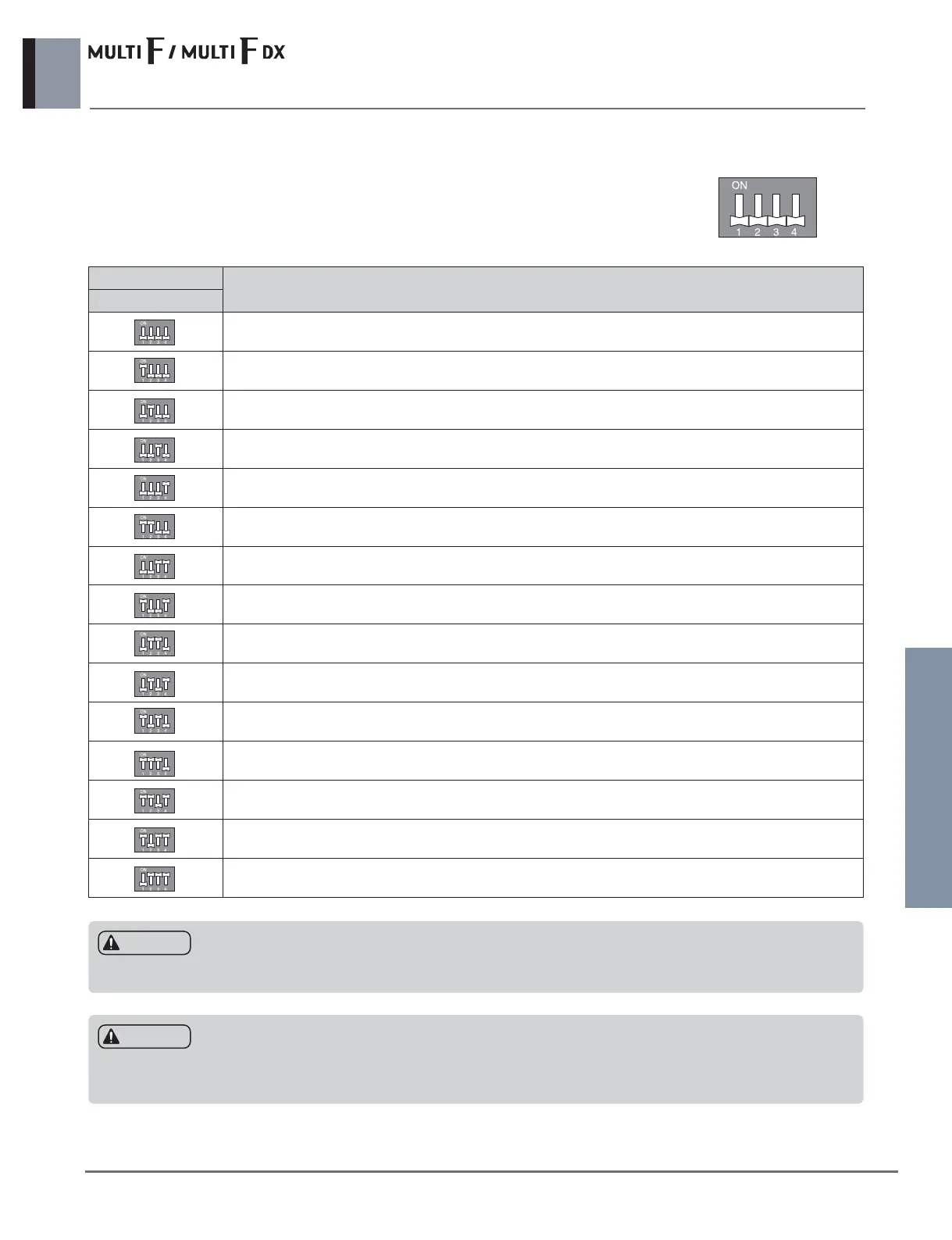

Dip Switch
Function
1 2 3 4
Normal Operation (No Function)
Forced Cooling Operation
Wiring Error Check
Saving Power Consumption (Step 1)
Saving Power Consumption (Step 2)
Mode Lock (Cooling)
Mode Lock (Heating)
Night Silent Operation (Step 1)
Night Silent Operation (Step 2)
Mode Lock (Cooling) + Night Silent Operation (Step 1)
Mode Lock (Cooling) + Night Silent Operation (Step 2)
Mode Lock (Cooling) + Saving Power Consumption (Step 1)
Mode Lock (Cooling) + Saving Power Consumption (Step 2)
Mode Lock (Heating) + Saving Power Consumption (Step 1)
Mode Lock (Heating) + Saving Power Consumption (Step 2)
3.10 New Functions
3.10.1 Dip S/W Setting
If you set the Dip Switch when power is on, the change in setting is not applicable.
The changing setting is enabled only when Power is reset.
• Unless the applicable dip switch is set properly, the product may not work.
• If you want to set a specific function, request that the installer sets the dip switch appropriately during installation.
CAUTION
When you set the dip switch, you should turn off the circuit breaker or shut the power source of the product down.
WARNING
