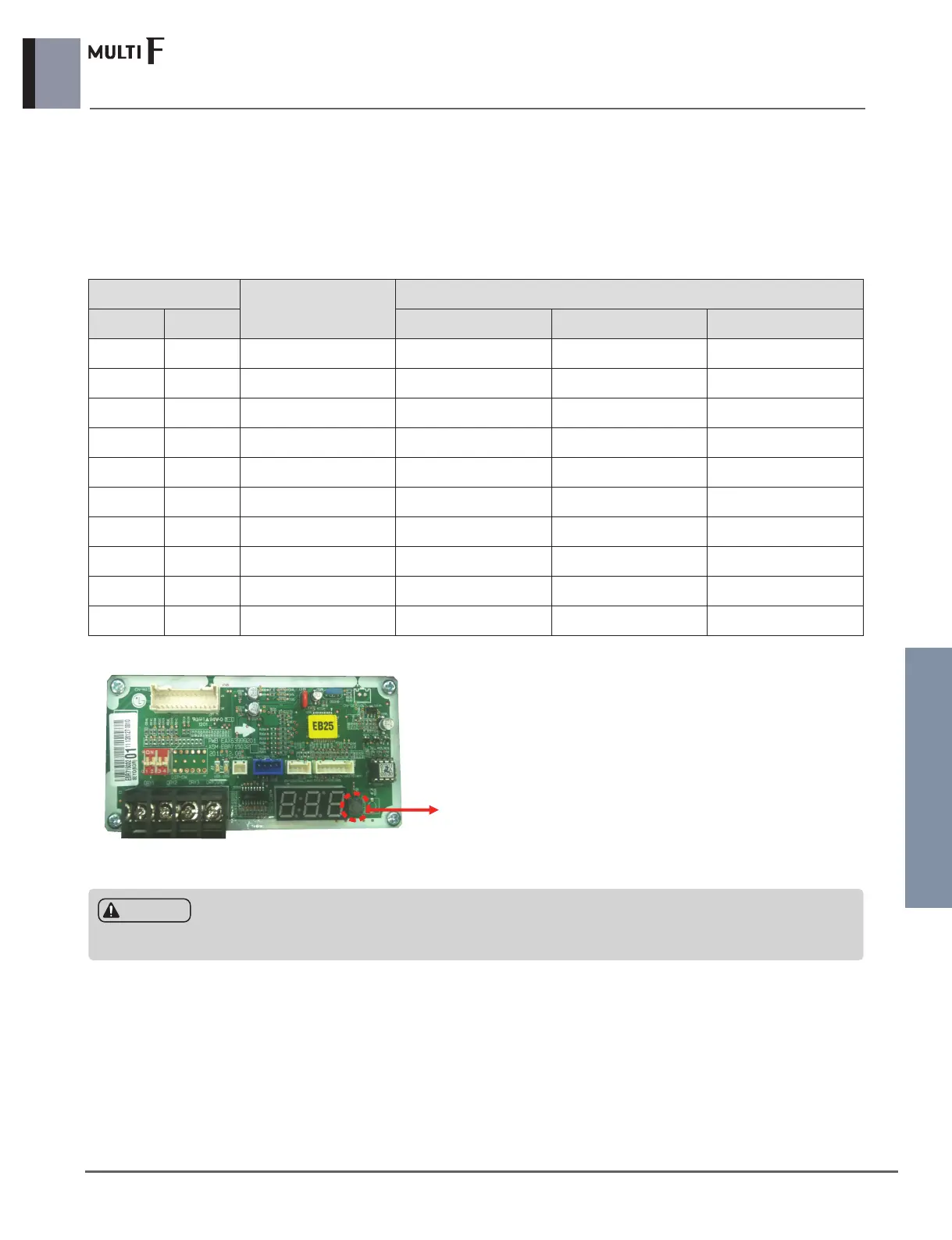

3.9.7 PCB Display(16/21k Model Only)
It is useful to check the cycle data without LGMV.
Operating Method
Whenever you push the Tact Switch, the cycle information will be shown as below.
h After 1page is displayed, subsequently 2page is displayed.
Tact S/W
Item
Display
14/16k 18/21k Example 1page 2page
- 1 time Low Pressure 890kpa ‘LP’ ’ 89’
- 2 time Hi Pressure 2900kpa ‘HP’ ‘290’
1 time 3 time Discharge Temp. 85°C ‘DS’ ’ 85’
2 time 4 time Cond Out Temp. -10°C ‘CS’ ‘-10’
3 time 5 time Suction Temp. -10°C ‘SS’ ‘-10’
4 time 6 time ODU Air Temp. -10°C ‘AS’ ‘-10’
5 time 7 time Current 15A ‘A’ ‘ 15’
6 time 8 time Voltage 230V ‘V’ ‘230’
7 time 9 time Comp Hz 100Hz ‘F’ ‘100’
8 time 10 time DC Link Voltage 230V ‘dc’ ‘230’
To Next Page
