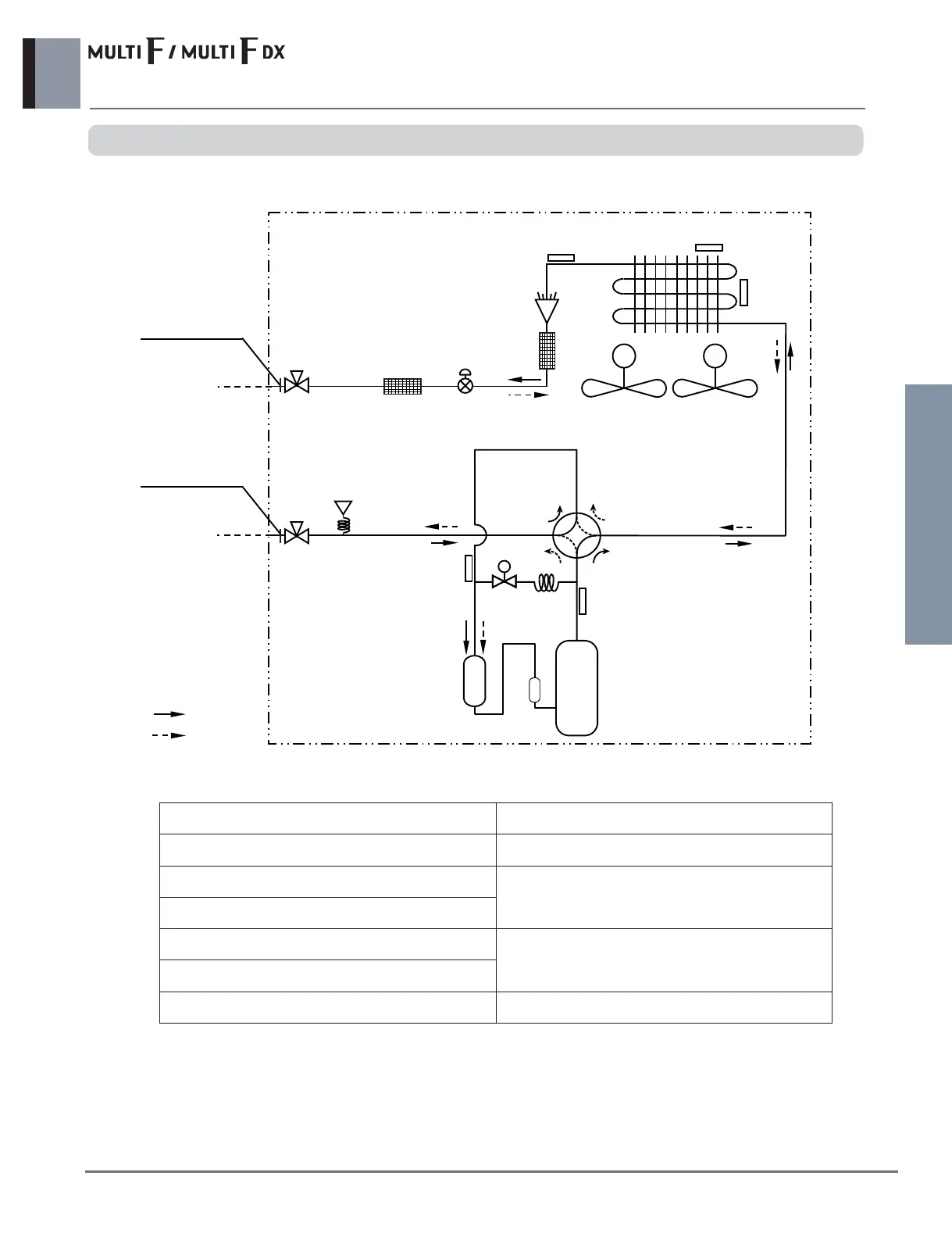

Heat pump 50Hz/R410A _ 13
2. Distributor type MULTI F DX (1 phase)
Part 2 Product data_Outdoor units
Models : A8UW48GFA0 [FM48AH U32], A9UW56GFA0 [FM56AH U32]
M M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Accumulator
Compressor
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø9.52
Flare Connection
Condensing
Temperature
Thermistor
: Cooling
: Heating
Pressure
Sensor
Electronic
Expansion
Valve
Ø19.05
Flare Connection
S
Description PCB Connector
Condensing temperature Thermistor CN_TH3
Condenser out temperature Thermistor
CN_TH1
Inlet air temperature Thermistor
Discharge temperature Thermistor
CN_TH2
Suction temperature Thermistor
Pressure Sensor CN_P/SENSOR(H)
