1. Multiple piping type MULTI F
40 _ Heat Pump 50Hz/R410A
Part 2 Product data_Outdoor units
Models : A2UW14GFA0 [MU2M15 UL2], A2UW16GFA0 [MU2M17 UL2]
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Compressor
Electronic
Expansion
Valve
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø6.35 / 2 way
Flare Connection
Ø9.52 / 3 way
Flare Connection
ROOM A
: Cooling
: Heating
ROOM B
ROOM A
ROOM B

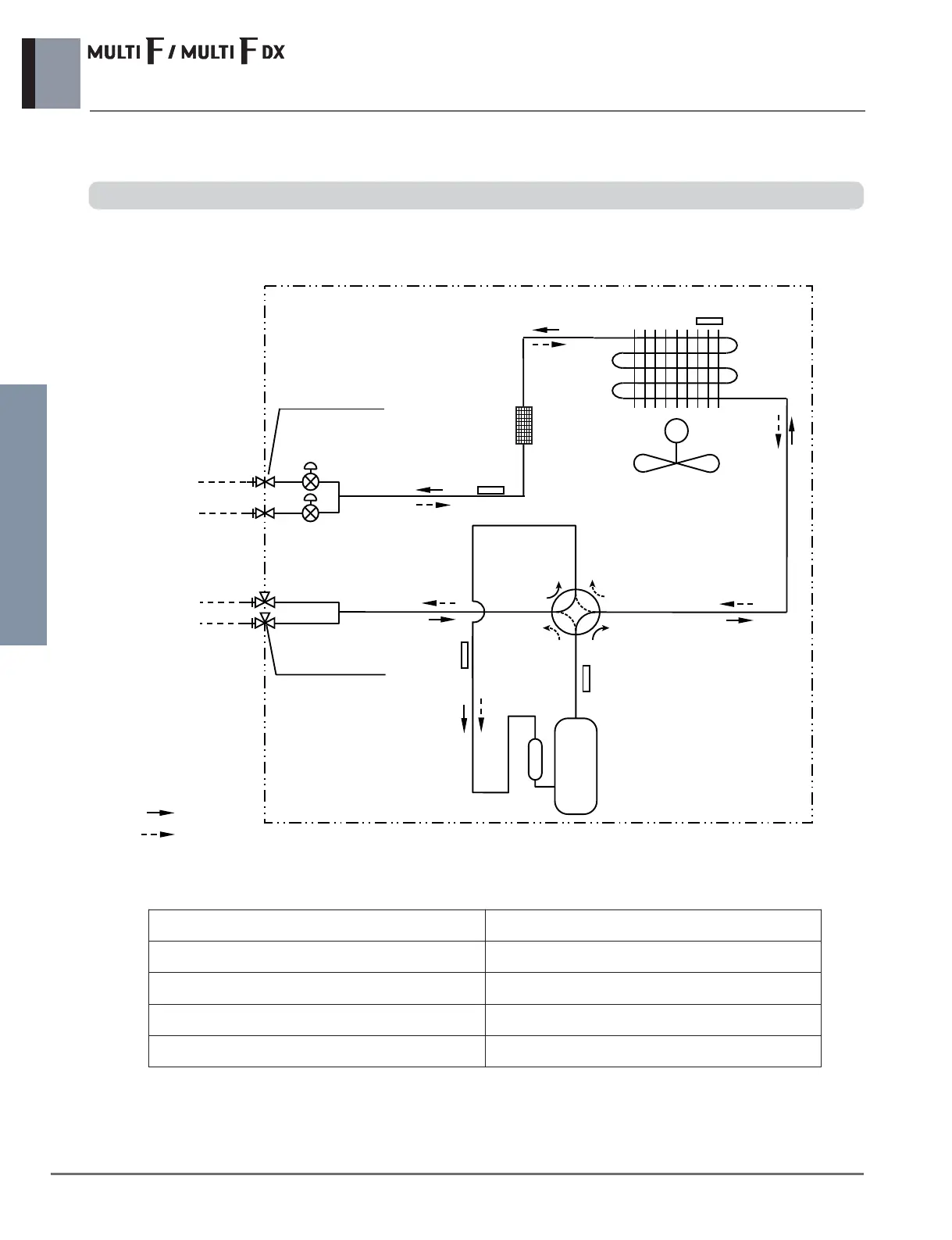

1.6 Piping diagrams
Description PCB Connector
Condenser out temperature Thermistor CN_C/PIPE
Inlet air temperature Thermistor CN_AIR
Discharge temperature Thermistor CN_DISCHARGE
Suction temperature Thermistor CN_SUCTION
