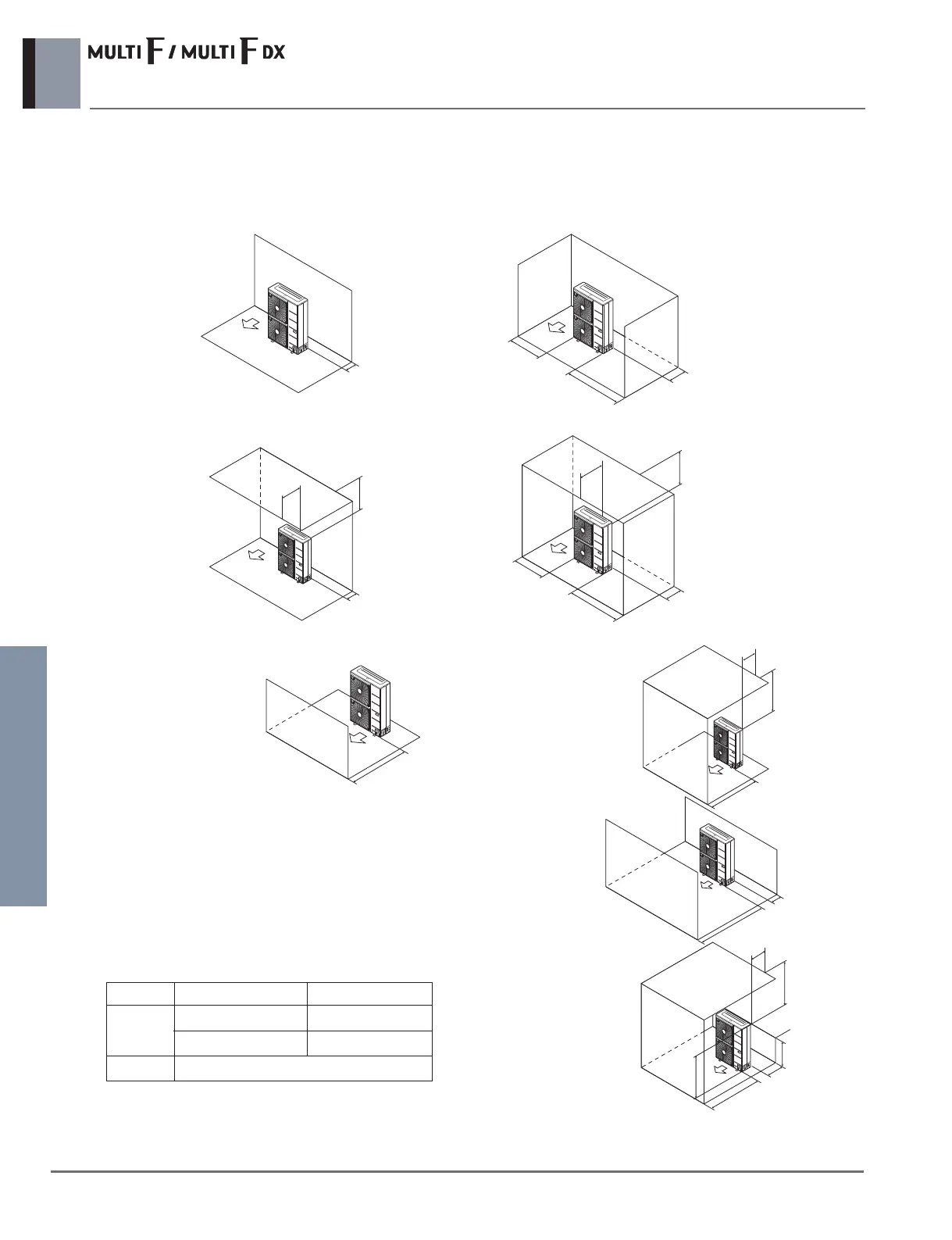

Clearance of side discharge unit [Unit:mm(inch)]
1) Where there is an obstacle on the air intake side:
n No obstacle above
• Obstacle on the suction side only
• Obstacle on the both sides
n Obstacle above, too
• Obstacle on the air intake side, too
• Obstacle on the air intake side, and both sides
2) Where there is an obstacle on the discharge side:
n No obstacle above n Obstacle above, too
3) Where there are obstacles on both suction and discharge sides:
n Where the obstacles on the discharge side is higher than the unit:
• No obstacle above
• Obstacle above, too
The relations between H, A and L are as follows:
Close the bottom of the installation frame to prevent
the discharged air from being bypassed.
L A[mm(inch)]
0 < L ≤ 1/2H 750(29 1/32)
1/2H < L 1 000(39 3/8)
H < L Set the stand as: L ≤ H
L ≤ H
