INSTALLATION
ENGLISH
CAUTION

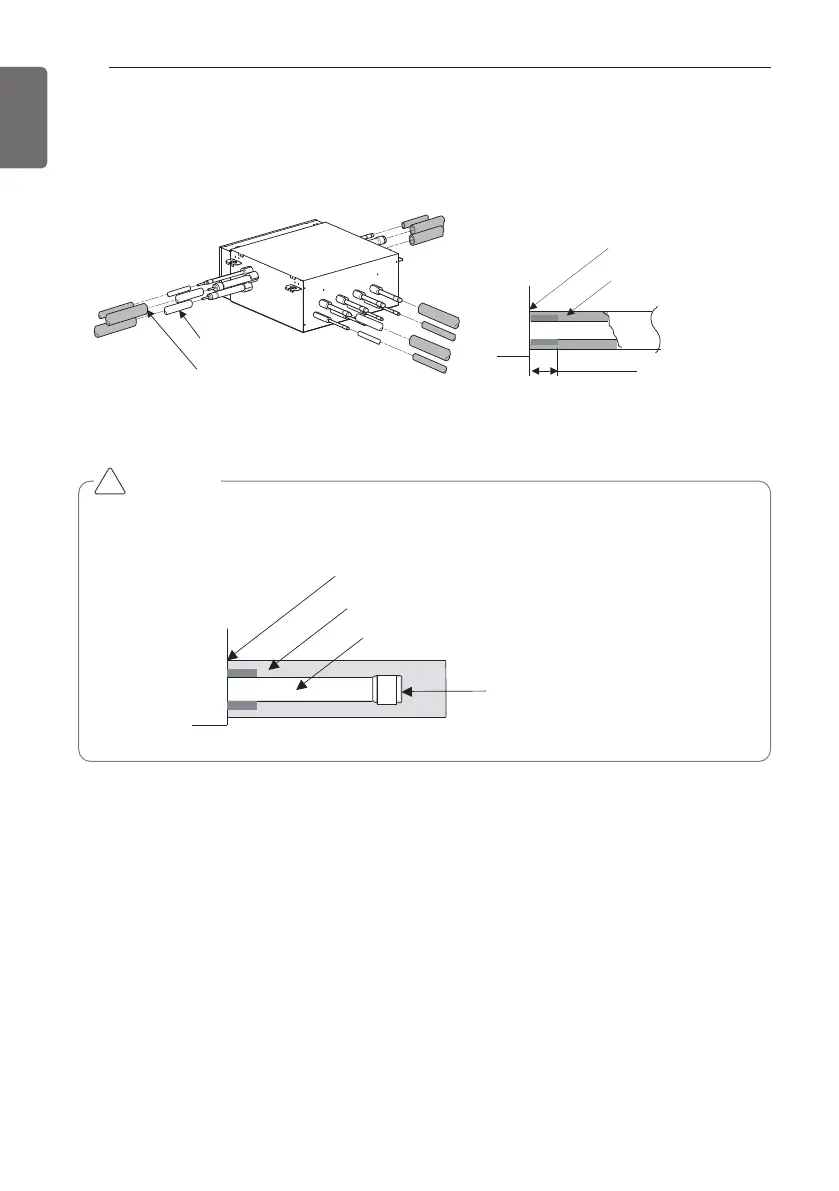

Insulate completely unconnected pipes as shown in the Figure.
!
Insulation
Insulate the connected pipes completely(all thermal insulation must comply with local require-
ment)
Refrigerant pipe
(Local supply)
Thermal insulator for refrigerant pipe
(Local supply)
Overlap with thermal
insulator for piping
Make sure that there is no
Thermal insulator for
refrigerant pipe(Local supply)
clearance here
Not connected pipe
Always seal up the
tip of unused pipe by brazing
Thermal insulator for refrigerant pipe(Local supply)
Make sure that there is no clearance here
