LG MULTI V PRHR022 User Manual

7
INSTALLATION PART
ENGLISH
INSTALLATION PART
- Installation Manual
- Hanging bolts (4 x M10 or M8, Nut(8 x M10 or M8), Flat washers(8 x M10)
- Reducers

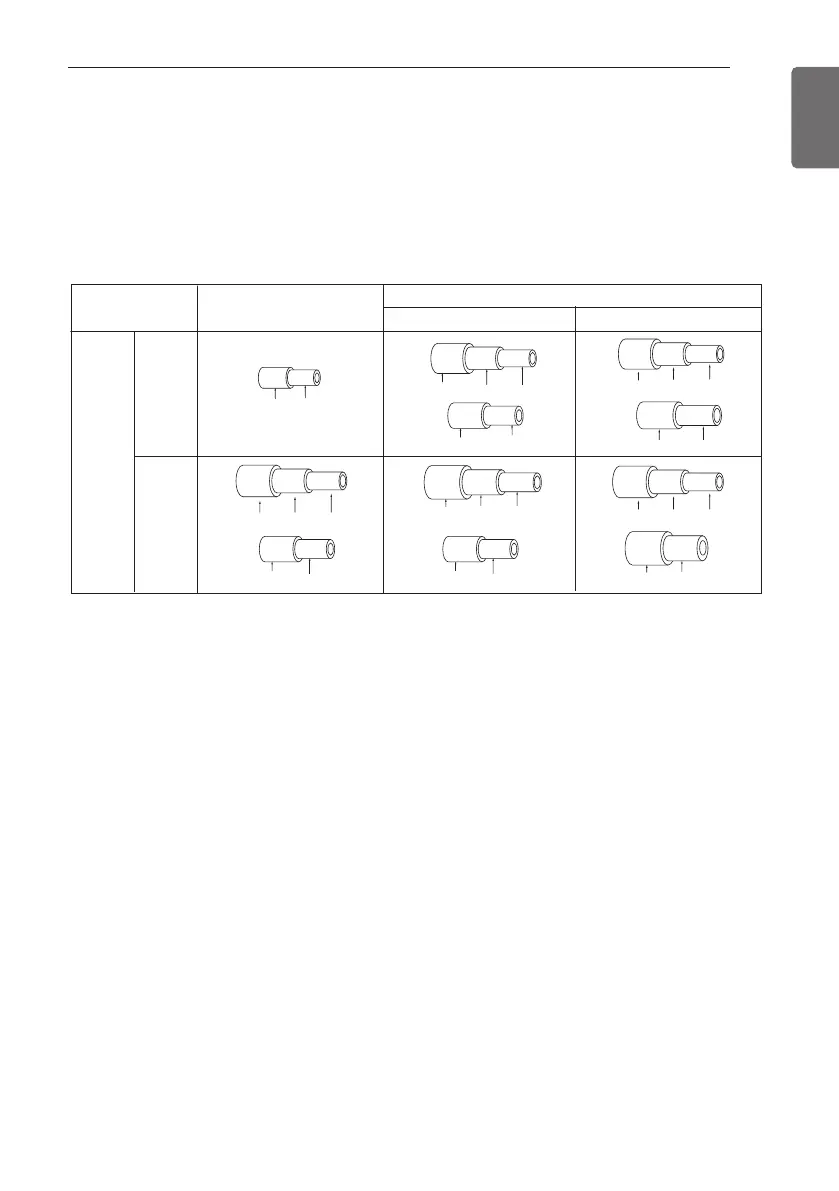

Models
High pressure
Gas pipe
Low pressure
Liquid pipe
HR unit
reducer
PRHR022
OD22.2(7/8) Ø19.05(3/4) Ø15.88(5/8)
Ø6.35(1/4)OD9.52(3/8)
OD19.05(3/4) Ø15.88(5/8)
OD12.7(1/2)
Ø9.52(3/8)
Ø12.7(1/2)
OD22.2(7/8) Ø19.05(3/4) Ø15.88(5/8)
OD15.88(5/8) Ø12.7(1/2)
OD12.7(1/2) Ø9.52(3/8)
PRHR032/
PRHR042
OD19.05(3/4) Ø15.88(5/8)
OD28.58(1-1/8) Ø22.2(7/8) Ø19.05(3/4)
OD15.88(5/8)
Ø12.7(1/2)
Ø9.52(3/8)
OD15.88(5/8) Ø12.7(1/2)
[Unit : mm]

LG MULTI V PRHR022 Specifications

General

Brand	LG
Model	MULTI V PRHR022
Category	Air Conditioner
Language	English
