ACCESSORIES INSTALLATION
Installation Sequence
Complete the following steps (in this order)
to correctly install the door/window sensor:
• Install batteries.
• Pair sensor with MultiSITE Controller.
• Remove plastic pull tab.
• Install sensor housing.
• Install magnet.
• Install sensor.
Install Battery
1. Pull tab and slide open housing of
door/window sensor to access battery
(Figure 27).
2. Install one CR2032 battery in the
housing (Figure 28). Ensure battery
polarity is correct When battery is first
installed, the sensor automatically goes
into pairing mode. Refer to “ZigBee
Setup” on page 28.
3. If replacing an old battery, use a plastic
tool to carefully pry battery out of com-
partment. Do not use a metal tool;
it may cause a short circuit or cause
damage to the sensor.
4. Replace housing cover.
Install Sensor Housing
Use either screws or two sided tape to in-
stall the sensor housing. The sensor hous-
ing and the magnet must align properly.
The sensor and magnet must be within 0.75
inches of each other. Be sure to install the
parts in the correct orientation.
To install with tape:
1. Affix 2-sided tape to desired location (Figure 29). Ensure tape is flush with
surface and securely affixed to surface.

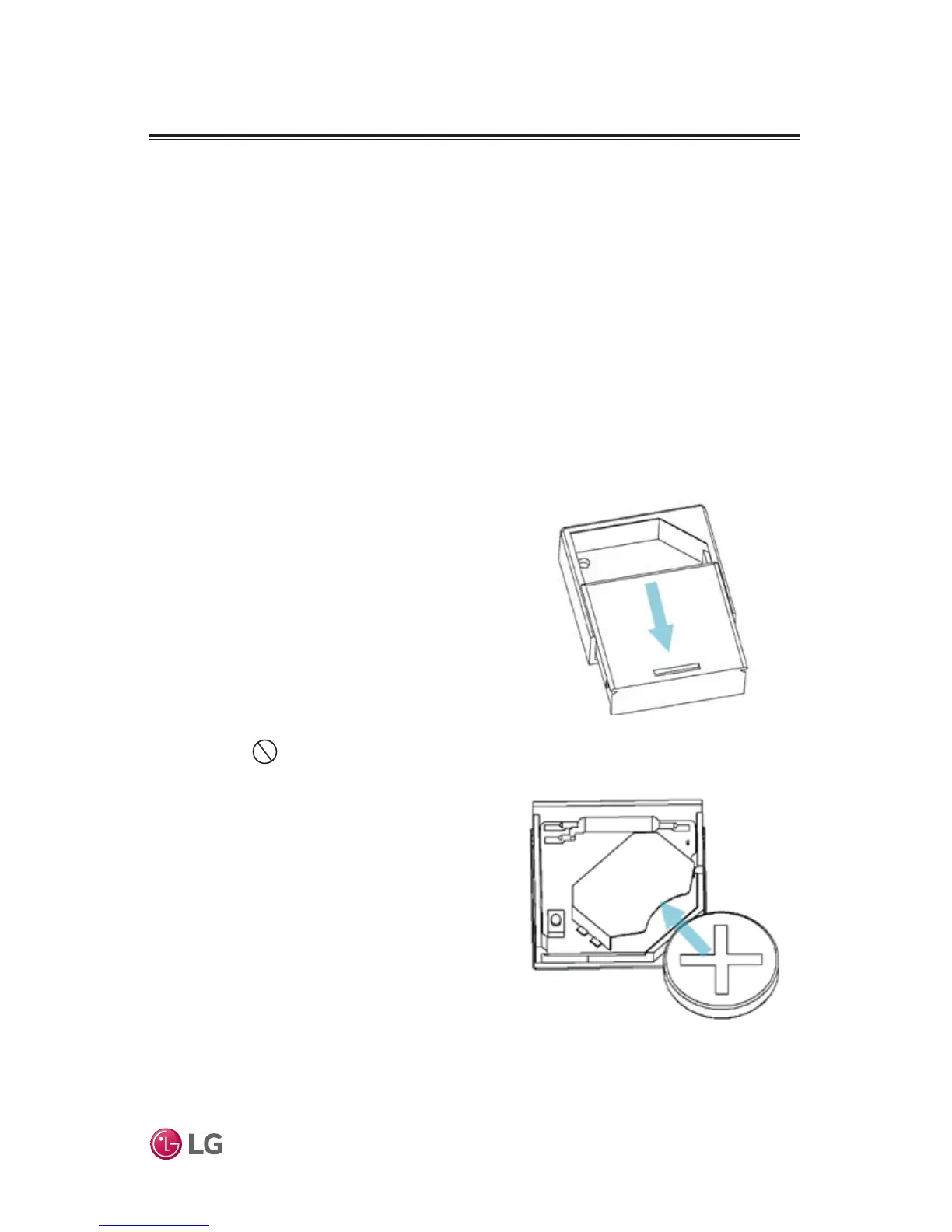

Figure 27: Open Housing
Figure 28: Install Battery
