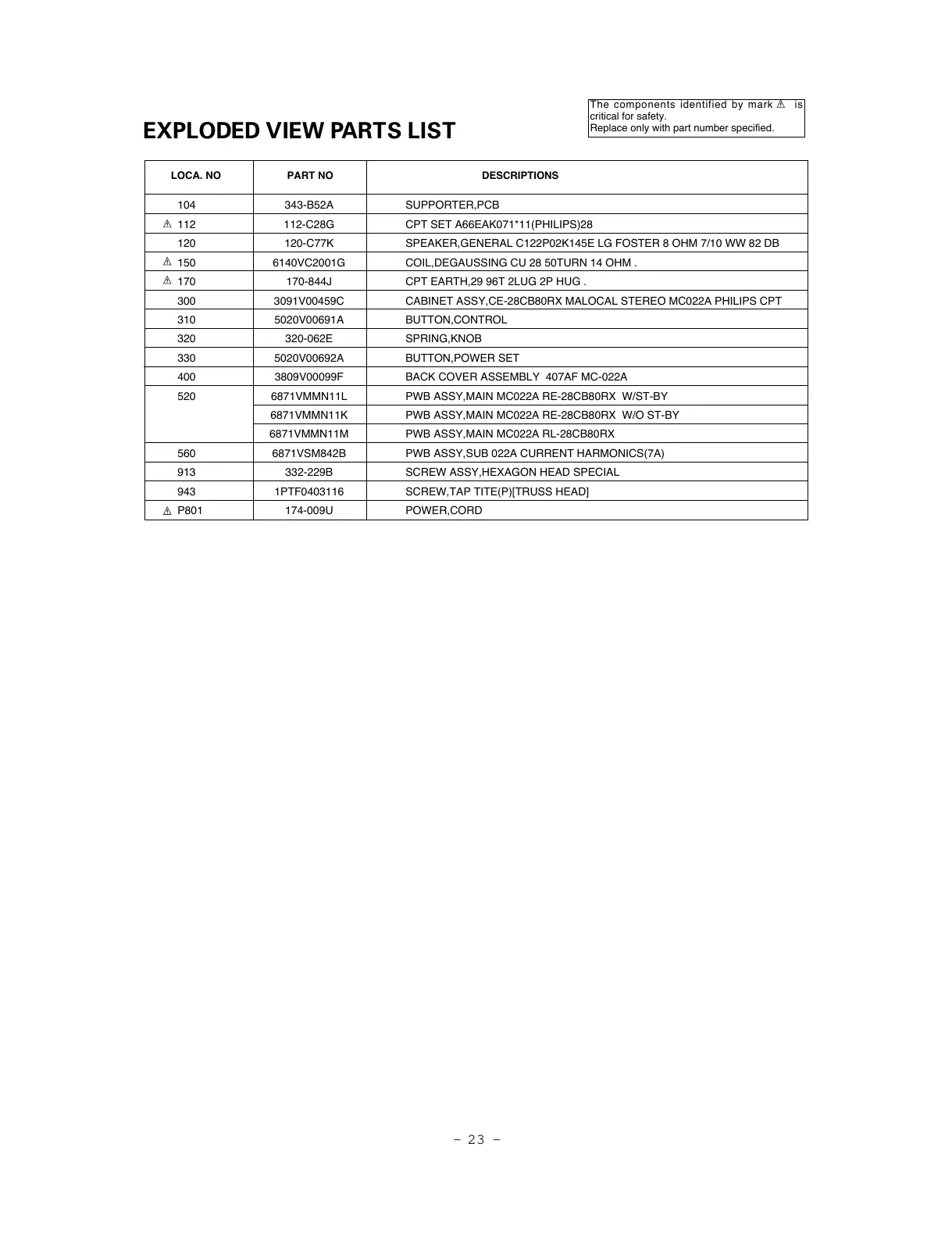

EXPLODED VIEW PARTS LIST
LOCA. NO PART NO DESCRIPTIONS
104 343-B52A SUPPORTER,PCB
112 112-C28G CPT SET A66EAK071*11(PHILIPS)28
120 120-C77K SPEAKER,GENERAL C122P02K145E LG FOSTER 8 OHM 7/10 WW 82 DB
150 6140VC2001G COIL,DEGAUSSING CU 28 50TURN 14 OHM .
170 170-844J CPT EARTH,29 96T 2LUG 2P HUG .
300 3091V00459C CABINET ASSY,CE-28CB80RX MALOCAL STEREO MC022A PHILIPS CPT
310 5020V00691A BUTTON,CONTROL
320 320-062E SPRING,KNOB
330 5020V00692A BUTTON,POWER SET
400 3809V00099F BACK COVER ASSEMBLY 407AF MC-022A
520 6871VMMN11L PWB ASSY,MAIN MC022A RE-28CB80RX W/ST-BY
6871VMMN11K PWB ASSY,MAIN MC022A RE-28CB80RX W/O ST-BY
6871VMMN11M PWB ASSY,MAIN MC022A RL-28CB80RX
560 6871VSM842B PWB ASSY,SUB 022A CURRENT HARMONICS(7A)
913 332-229B SCREW ASSY,HEXAGON HEAD SPECIAL
943 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD]
P801 174-009U POWER,CORD
The components identified by mark is
critical for safety.
Replace only with part number specified.
