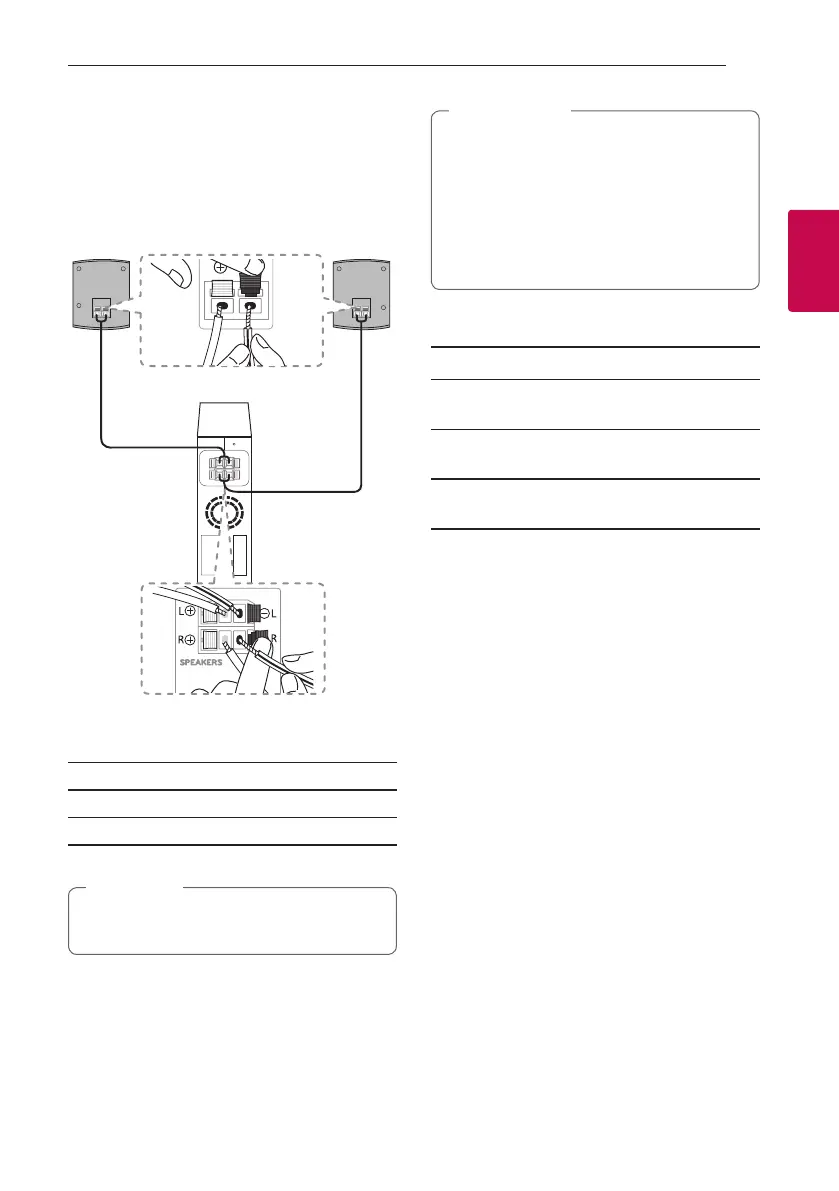

Rear speakers connection
Connecting the rear speakers
1. Connect the black stripe wire to the terminal
marked - (minus) and the other end to the
terminal marked + (plus).
2. Connect the wireless receiver and the rear
speakers (right, left) with the speaker cables.
Color Position
Grey Rear right
Blue Rear left
You need to purchase the wireless rear speakers
kit (SPJ4-S) to enjoy surround sound.
,
Note
y
Use the speaker supplied with this unit
only. Using any other speaker may cause
malfunction.
y
Be sure to match the speaker cable to the
appropriate terminal on the components: +
to + and – to –. If the cables are reversed, the
sound will be distorted and will lack bass.
>
Caution
LED indicator of wireless receiver
LED Color Status
Yellow - green The wireless receiver is receiving
the signal from the sound bar.
Red The wreless receiver is in standby
mode.
Off
(No display)
The power cord of wireless
receiver is disconnected.
Setting up the wireless receiver for the
first time
1. Connect the power cord to the wireless receiver
to the outlet.
2. Turn on the main unit : The sound bar and wireless
receiver will be automatically connected.
- Yellow - green LED on the wireless receiver
turns on.
Rear Speaker
(Left)
Rear Speaker
(Right)

LG SJ4R Specifications

General

Audio Channels	4.1
Surround Sound	dolby digital
High Resolution Audio	yes
Inputs	3.5mm audio, hdmi, optical digital audio, usb type a
Outputs	hdmi, usb type a
HDMI Inputs	1
HDMI Outputs	1
USB Ports	1
Bluetooth	yes
Wireless Connectivity	bluetooth
Optical Audio Inputs	1
Remote Control	yes

Weight and Dimensions

Depth	3.3 inches
Height	2.2 inches
Width	35 inches
Net Weight	5.3 pounds
