Battery
Key PCB

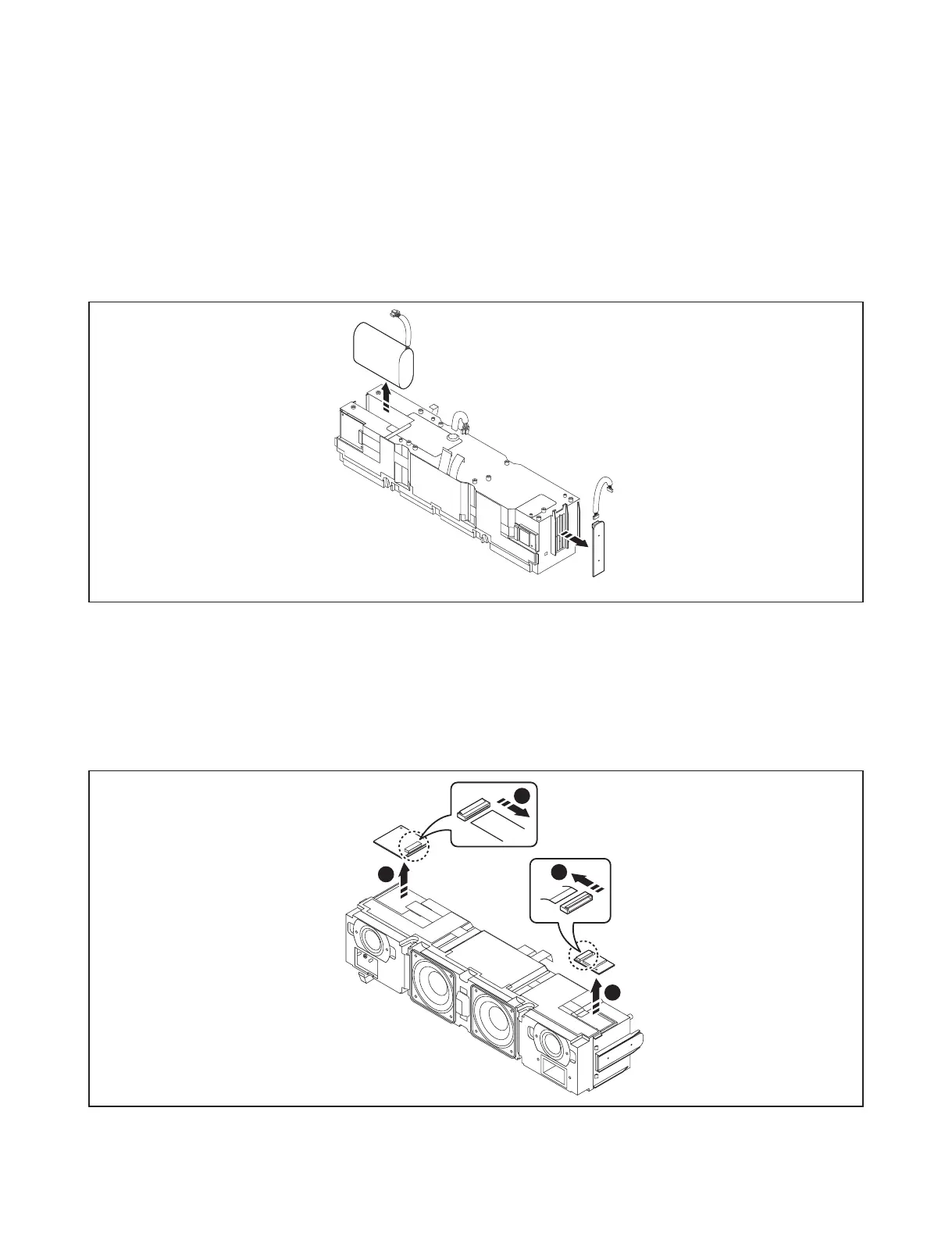

Figure 2-7
HOW TO DISASSEMBLE THE SECONDARY UNIT
2-6. Battery
1) Remove the Battery.
2-7. Key PCB Assembly
1) Disconnect the harness cable from the Key PCB.
2) Remove the Key PCB Assembly.
2-8. Modules
1) Disconnect the FFC cable from the WIRELESS module (SMSC).
2) Remove the WIRELESS module (SMSC).
3) Disconnect the FFC cable from the BT module.
4) Remove the BT module.
2
4
3
1
WIRELESS
(SMSC)
BT
Figure 2-8

LG SJ8S Specifications

General

Subwoofer	Wireless
Audio Decoding	Dolby Digital, DTS Digital Surround
HDMI Input	1
Connectivity	Bluetooth
Sound Modes	Standard, Cinema, Music
HDMI Output	1
Type	Soundbar with Wireless Subwoofer
Channels	4.1 ch
