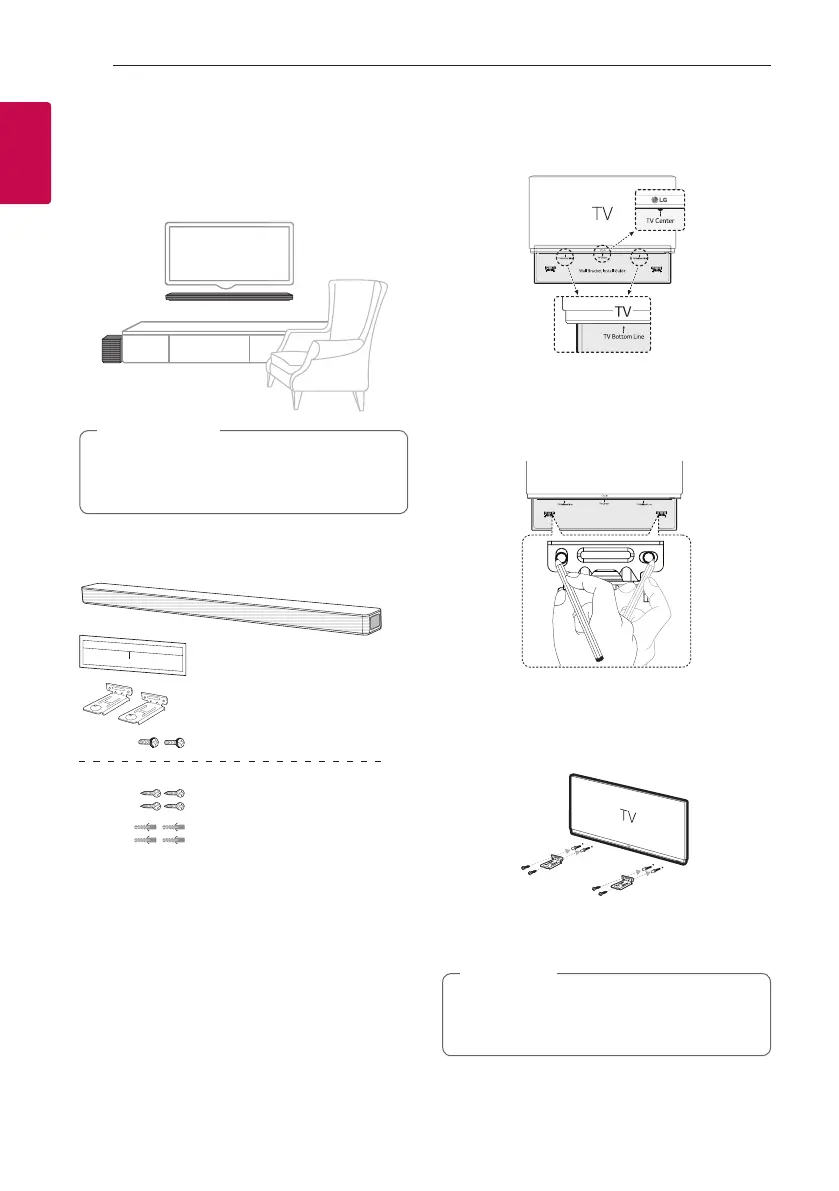

Mounting the main unit
on a wall
You can mount the main unit on a wall.
Because it is difcult to make a connection after
installing this unit, you should connect the cables
before installation.
>
Caution
Preparation materials
Unit
Wall bracket install guide
Screws
Screws (A)
Wall plug
Wall bracket
(Not supplied)
1. Match the TV’s BOTTOM EDGE of Wall bracket
install guide with the bottom of TV and attach to
the position.
2. When you mount it on a wall (concrete), use the
wall plugs. You should drill some holes. A guide
sheet (Wall bracket install guide) is supplied to
drill. Use the sheet to check the point to drill.
3. Remove the Wall bracket install guide.
4. Fix the brackets with screws (A) as shown in the
illustration below.
Screws (A) and Wall Plugs are not supplied for
mounting the unit. We recommend the Hilti
(HUD-1 6 x 30) for the mounting.
,
Note

LG SN5R Specifications

General

Audio decoders	DTS Digital Surround, DTS Virtual:X, Dolby Digital
RMS rated power	520 W
Audio output channels	4.1 channels
Audio Return Channel (ARC)	Yes
Wi-Fi	No
HDMI version	1.4
Bluetooth version	4.0
HDMI ports quantity	-
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Subwoofer connectivity	Wireless
Soundbar speaker RMS power	300 W
Product color	Black
Country of origin	China
Audio formats supported	AAC, AAC+, LPCM
Consumer Electronics Control (CEC)	SimpLink
Number of products included	1 pc(s)
Package depth	426 mm
Package width	946 mm
Package height	233 mm
Package weight	12900 g

Weight and Dimensions

Depth	85 mm
Width	890 mm
Height	57 mm
Soundbar weight	2350 g
Subwoofer depth	290 mm
Subwoofer width	180 mm
Subwoofer height	394 mm
Subwoofer weight	5800 g
