4-3. ADJUSTMENT

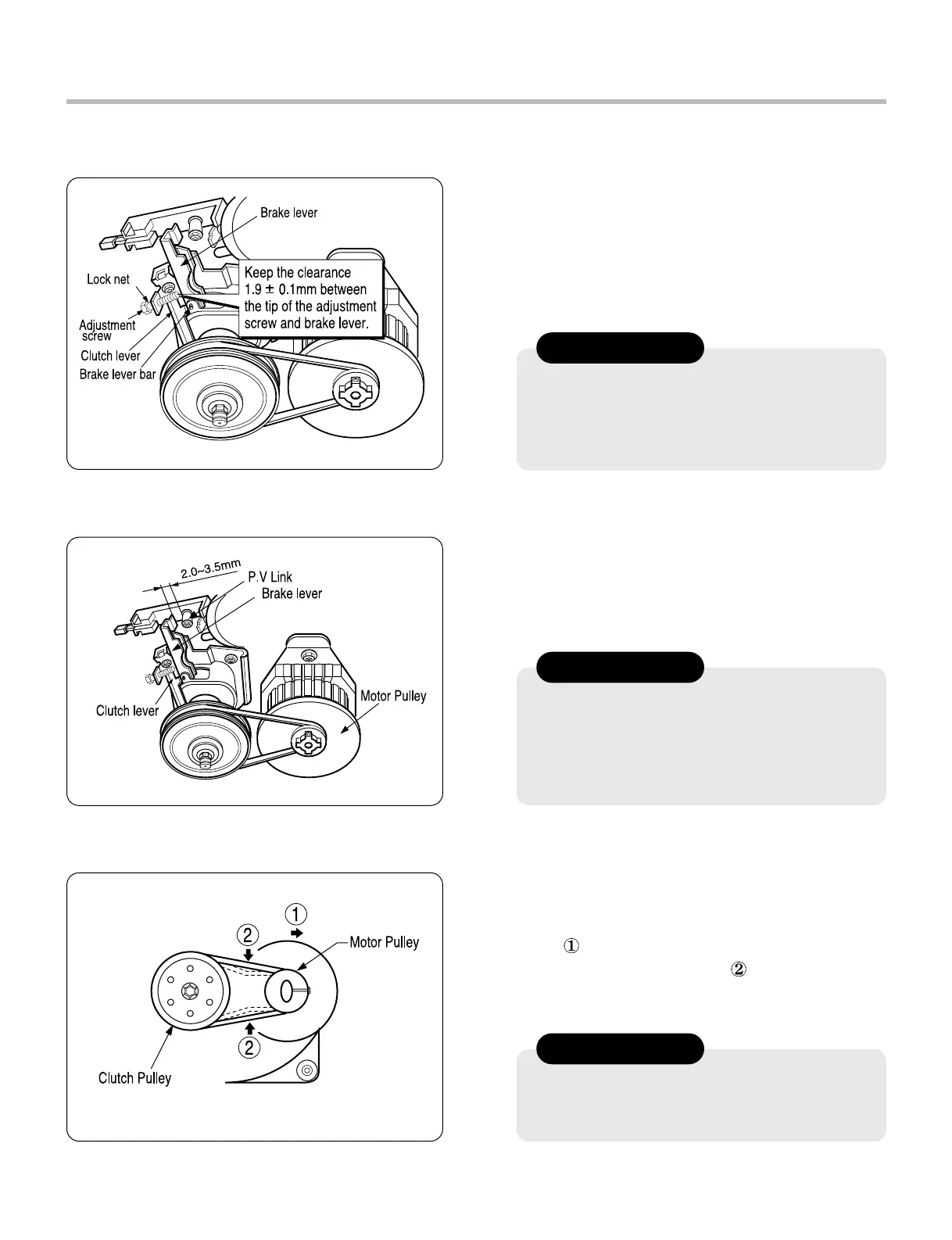

1) Brake lever adjustment
• Shown as in the figure, untighten the adjustment
screw to keep clearance less than 1.9°æ0.1mm
between the tip and the brake lever.
And turn on the lock nut then paint it red.
• Painting part is adjusted in factory, it does not
need adjusting.
• Adjust the screw properly if the brake doesn't
work during spin.
CAUTION
2) Keeping clearance
• Keep the clearance about 2.0~3.5mm between
brake lever and P.V link as shown in the figure.
• Clutch pulley must be turning to one side P.V
Link is pulling the brake Lever.
• Clutch pulley must be turning to the left and the
right when P.V Linke does not pull the brake
Lever.
CAUTION
3) V-belt adjustment
• Adjust the motor pulley by pushing the motor like
arrow
, to make V-belt tension parallel when
pushed at the point of arrow
.
• When the V-belt is not properly adjusted, the
motor will not be running or the belt will be
slipping.
CAUTION
