Connecting10
Connecting
2
Connecting to
speakers

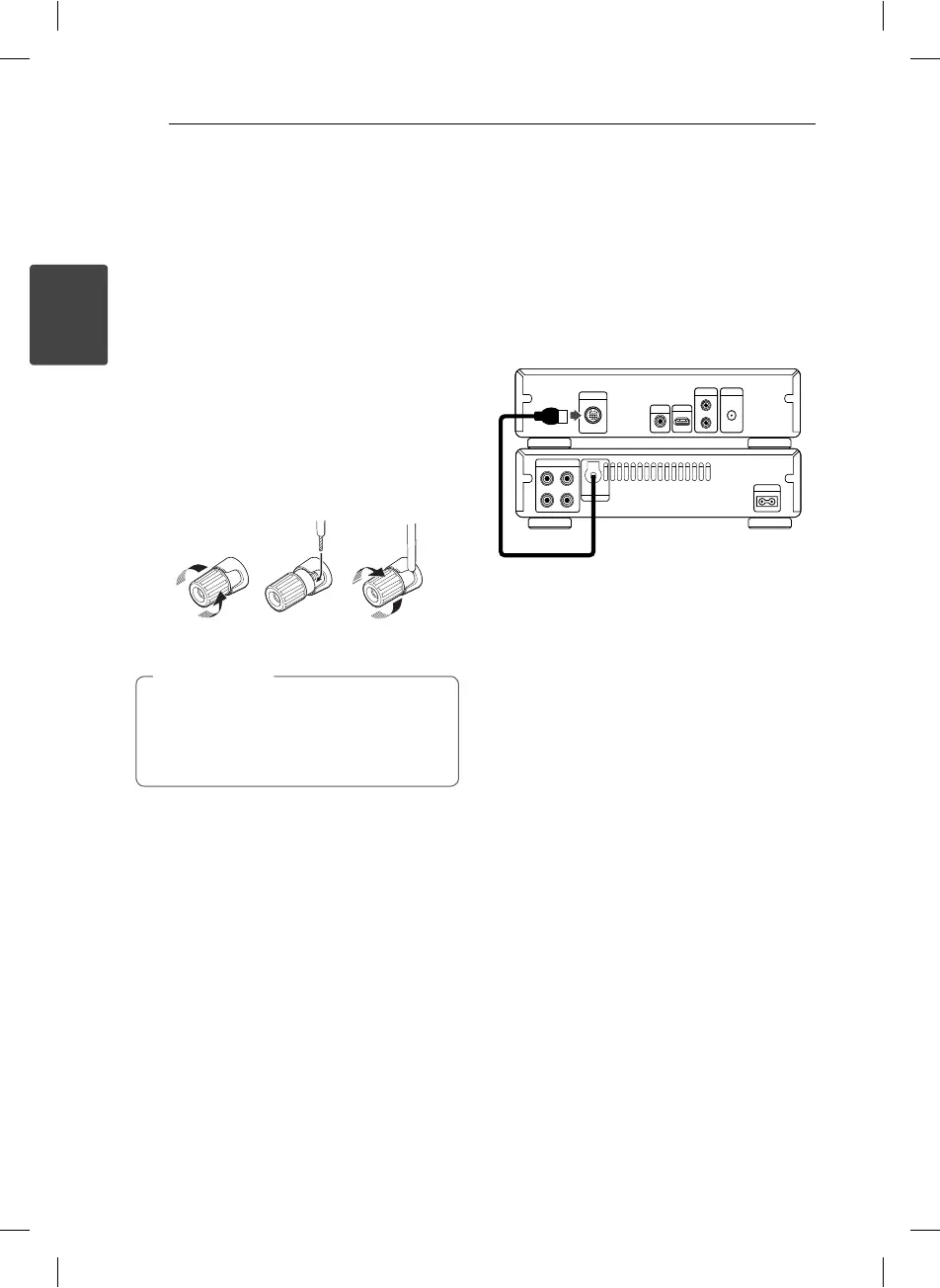

Attaching the speakers to the
unit
1. Loosen the knob by turning it counterclockwise.
2. Insert the bare part of the wire into the hole in
side of each terminal.
3. Tighten the knob by turning it clockwise to
secure the wire.
Connect the red stripe of each wire to the terminals
marked + (plus) and the other end to the terminals
marked - (minus).
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
>
Caution
System cable
Connection
Your unit consists of two separate parts, CD player
and an integrated Tuner/Ampli er.
Before you can use your unit, the separate parts
must be connected with the system connection
cable.
iPod DOCK
AUX IN
ANTENNA
CABLE
CABLE
SPEAKERS
VIDEO OUT
POWER IN
L
R
FM
R
L
45
iPod
TA106-D0P-AHUNLL-ENG.indd 10TA106-D0P-AHUNLL-ENG.indd 10 11. 10. 04 5:3111. 10. 04 5:31
