INSTALLATIONINSTRUCTIONS

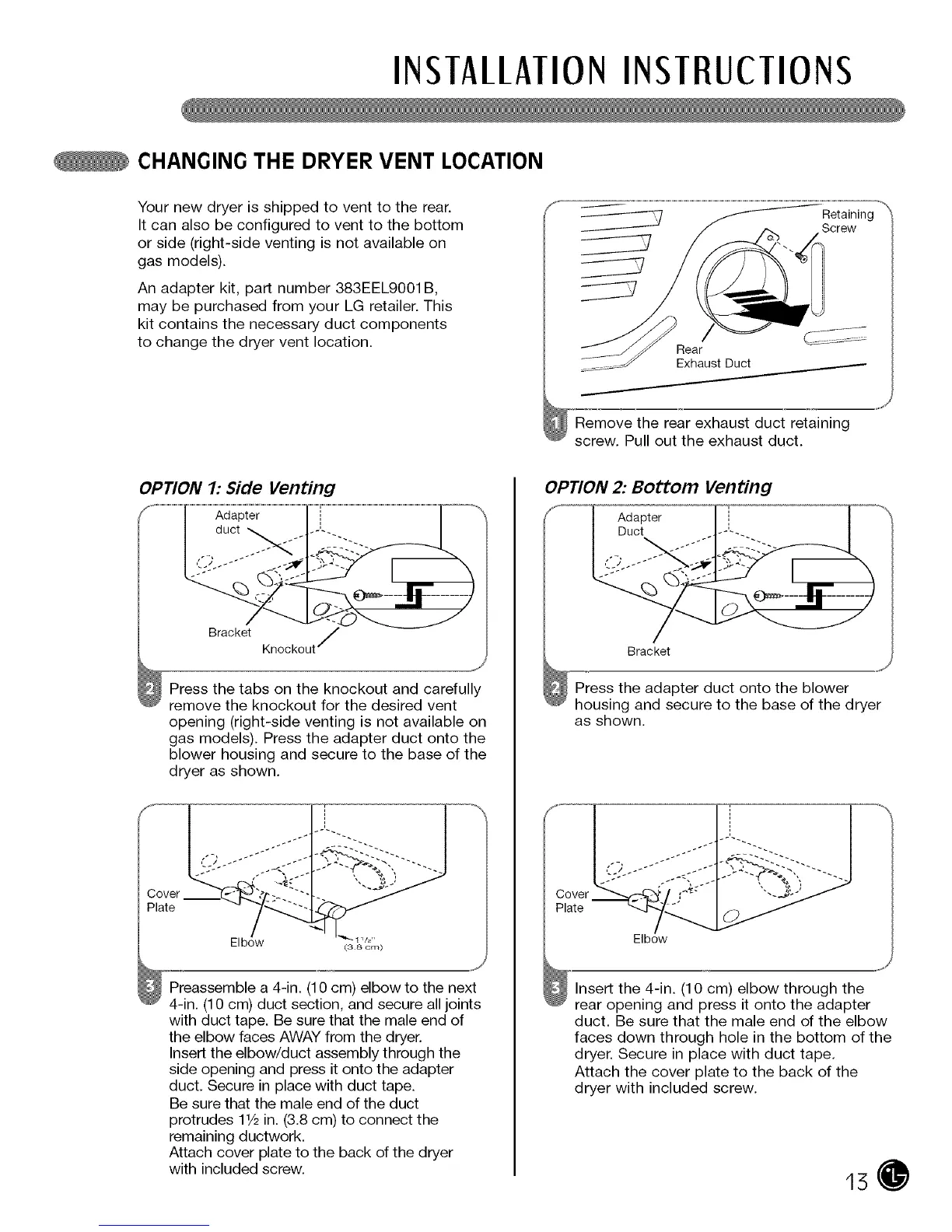

CHANGING THE DRYER VENT LOCATION
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom
or side (right-side venting is not available on
gas models).
An adapter kit, part number 383EEL9001 B,
may be purchased from your LG retailer. This
kit contains the necessary duct components
to change the dryer vent location.
f .....................................................................................................................................................................................................................
Retaining
Screw
__j Rear
Exhaust Duct
Remove the rear exhaust duct retaining
screw. Pull out the exhaust duct.
OPTION 1: Side Venting
...............................................................ie ;..................................................I.................................................................................................................................................1....
I duct ......
Bracket Knockout /
Press the tabs on the knockout and carefully
remove the knockout for the desired vent
opening (right-side venting is not available on
gas models). Press the adapter duct onto the
blower housing and secure to the base of the
dryer as shown.
Cover
Plate
Elbow
(3 8 cm)
Preassemble a 4-in. (10 cm) elbow to the next
4-in. (10 cm) duct section, and secure all joints
with duct tape. Be sure that the male end of
the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the
side opening and press it onto the adapter
duct. Secure in place with duct tape.
Be sure that the male end of the duct
protrudes 1V2in. (3.8 cm) to connect the
remaining ductwork.
Attach cover plate to the back of the dryer
with included screw.
OPTION 2: Bottom Venting
Adapter
Duct
Press the adapter duct onto the blower
housing and secure to the base of the dryer
as shown.
Plate
Elbow
4-in. (10 cm) elbow through the
rear opening and press it onto the adapter
duct. Be sure that the male end of the elbow
faces down through hole in the bottom of the
dryer. Secure in place with duct tape.
Attach the cover plate to the back of the
dryer with included screw.
15
