LG TV User Manual

A-11
PREPARATION
■ Image shown may differ from your TV.

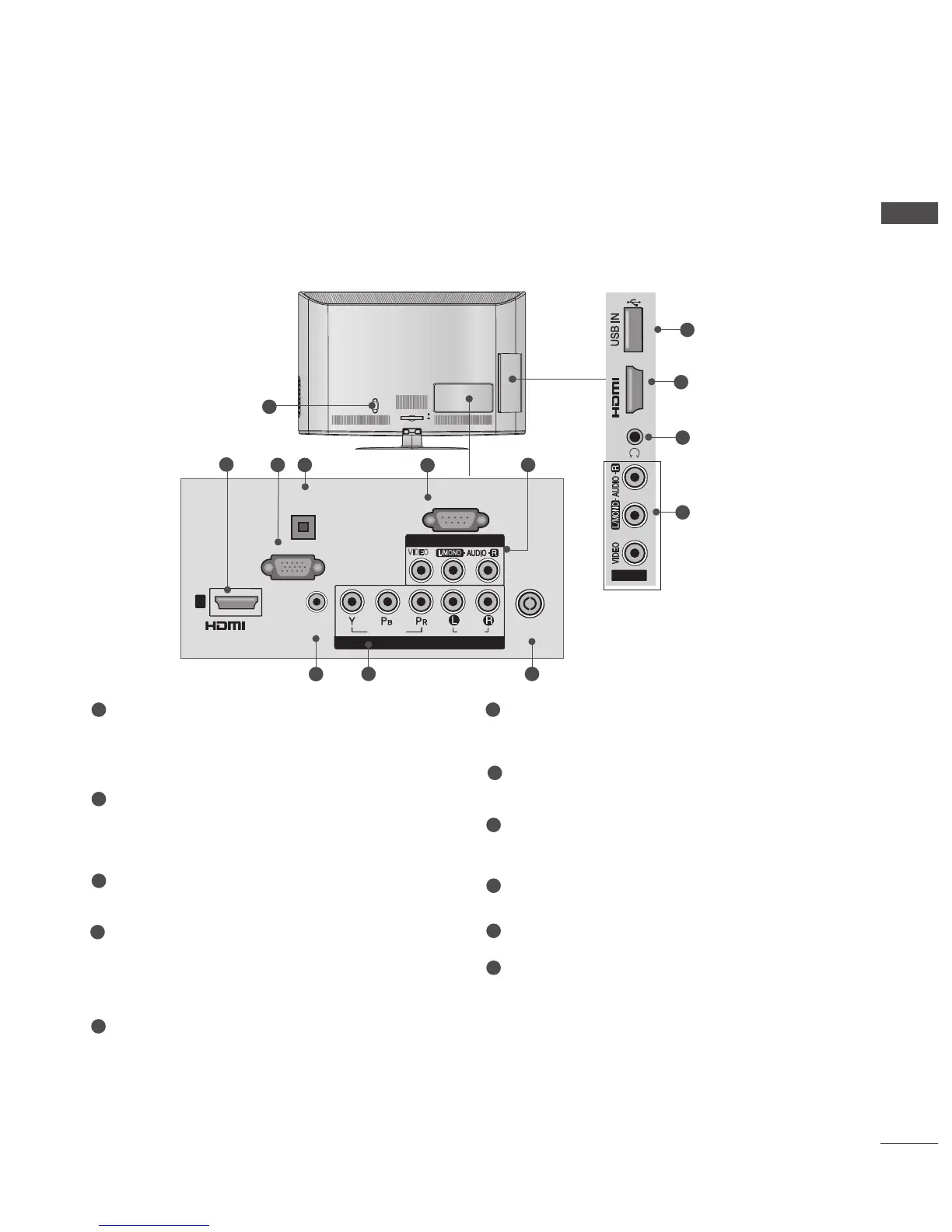

Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(► p.161 to 173) Never attempt to operate
the TV on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
RGB IN Input
Connect the output from a PC.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
Component Input
Connect a component video/audio device to
these jacks.
Antenna / Cable Input
Connect antenna or cable to this jack.
SERVICE ONLY PORT
Headphone Socket
Plug the headphone into the headphone
socket.
1
2
3
4
5
6
7
8
9
10
11
AC IN
CABLE MANAGEMENT
1
RGB IN (PC)
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
ANTENNA /
CABLE IN
/DVI IN
OPTICAL
DIGITAL
AUDIO OUT
VIDEO
H/P
AUDIO
VIDEO
COMPONENT IN
AV IN 1
AV IN2
IN 2
1
L/MONO
SERVICE ONLY
2
3 4
8
RGB IN (PC)
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
ANTENNA /
CABLE IN
/DVI IN
OPTICAL
DIGITAL
AUDIO OUT
VIDEO
H/P
AUDIO
VIDEO
COMPONENT IN
AV IN 1
AV IN2
IN 2
1
L/MONO
SERVICE ONLY
10
2
11
5
9
6
Only 26/32LD3**
7
6
