WATCHING TV / PROGRAMME CONTROL
Connecting to Home Theater with the SIMPLINK logo.
NOTE
► Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the terminal (HDMI terminal) of the SIMPLINK
device with the HDMI cable.
► When you switch the Input source using the INPUT button on the remote control, you can stop the opera-
tion of a device controlled by SIMPLINK.
► When you select or operate a media device with
home theater function, the speaker automatically
switches to home theater speaker (HT speaker).

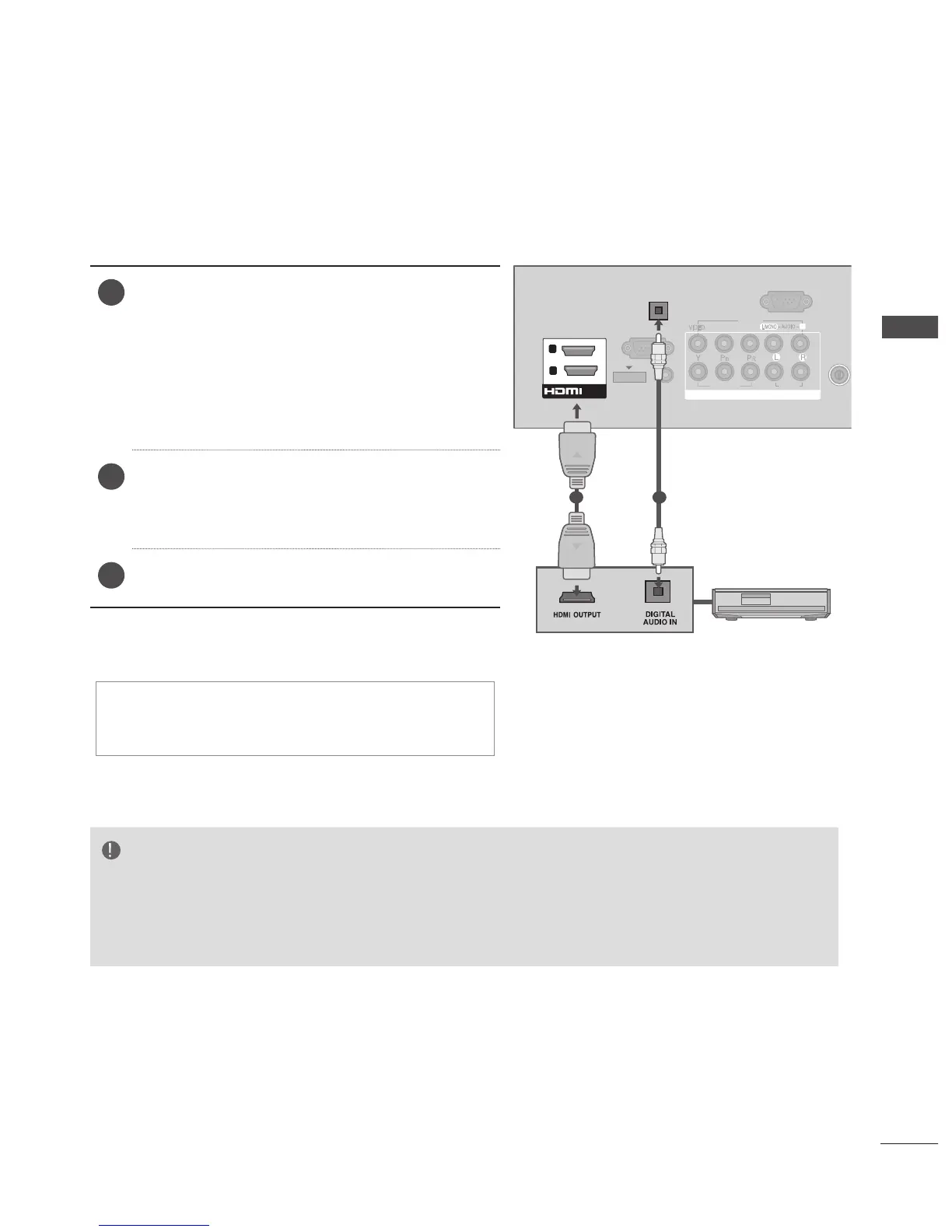

1
Connect the HDMI/DVI IN 1, HDMI/DVI IN
2(Except for 22LD3**), HDMI IN 3(Except for
22/26/32LD3**, 32/37/42/47LD4**, 22LE5***)
or HDMI IN 4 (Only 32/37/42/47/55/60LE5***,
32/37/42/47/55LE7***, 42/47/55LE8***,
42/47/55LX6***, 47/55LX9***,
32/42/47/55LE4***)
terminal on the back of the
TV and the HDMI output terminal of the Home
Theater using HDMI cables.
2
Connect the Digital Audio output terminal on
the back of the TV and the Digital Audio input
terminal of the Home Theater using optical
cables.
3
Select Home Theater in the Speaker menu by
pushing the SIMPLINK button.
