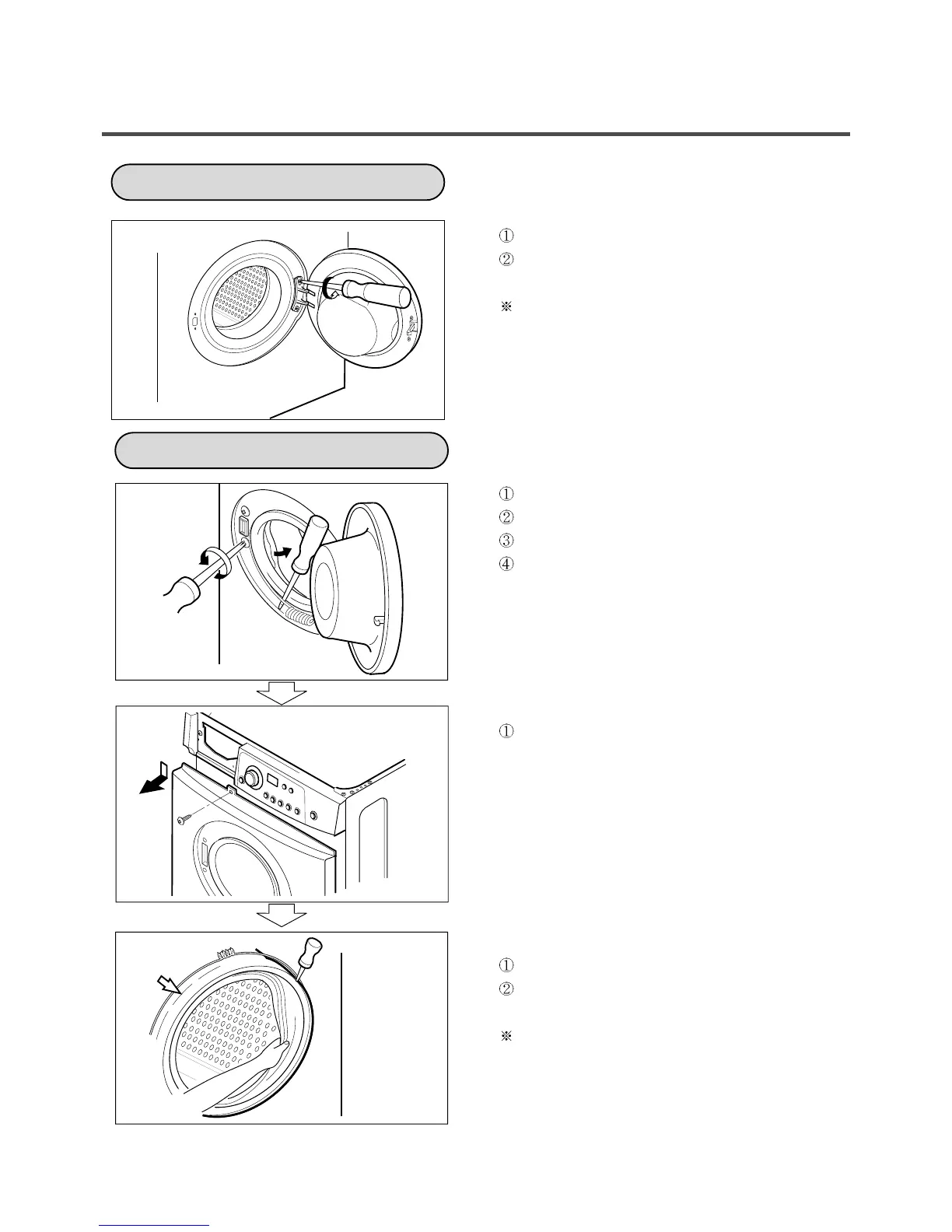

Open the door completely.
Remove the two screws from the hinge.
When removing the DOOR ASSEMBLY, it is
necessary to hold the BRACKET that is inner of the
CABINET COVER.
Take apart the CLAMP ASSEMBLY (cabinet).
Unscrew 2 screws from the CABINET COVER.
Open the lower cover cap and unscrew 1 screw inside
Take apart the LOWER COVER.
Unscrew all the screws on the upper and lower sides of
the CABINET COVER.
Take apart the tub CLAMP ASSEMBLY
Make sure that the drain hole of the GASKET is put
beneath when reassembling the GASKET.
Refer to the arrow mark on the TUB COVER.
GASKET
DOOR ASSEMBLY
