29

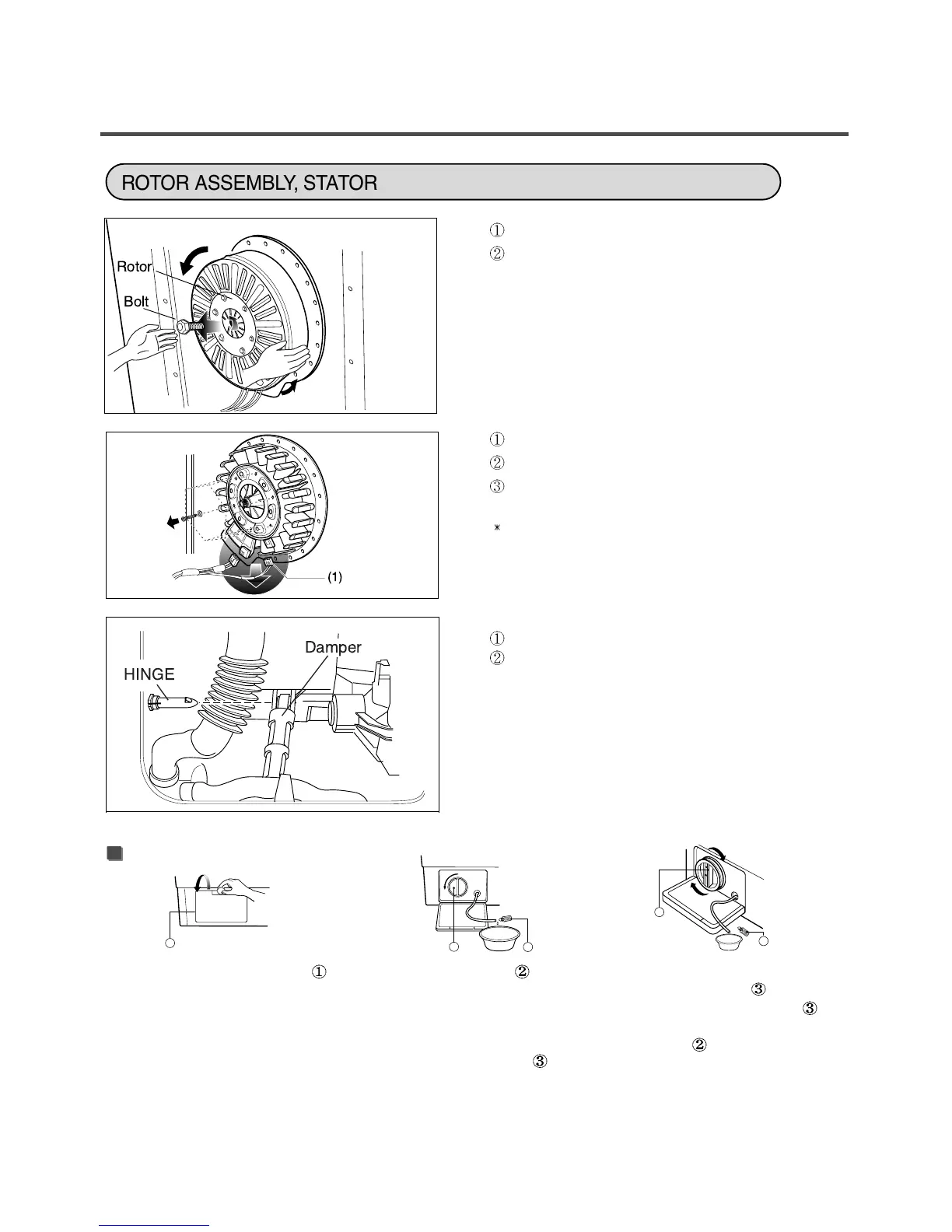

Remove the BACK COVER.
Unscrew the bolt to pull out the ROTOR ASSEMBLY.
Disconnect the wiring connector.
Unscrew 6 bolts from the STATOR.
Remove the BODY FRAME.
Note : Hook of connector (1) is on the backside
Pull out the HINGE, pressing its snap.
Do not use the pulled out HINGE again
It may be taken off during operation.
ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER ASSEMBLY
(ROTOR ASSEMBLY)
(STATOR ASSEMBLY)
(FRICTION DAMPER ASSEMBLY)
Open the lower cover cap ( )
by using coin.
Unplug the drain plug ( ) , then
the water flows out,
At this time use a vessel
to prevent water flowing on the
floor. If the water does not flow any
more,turn the pump filter ( )
open to the left.
Take out any foreign material
from the pump filter ( ). After
cleaning, turn the pump filter ( )
clockwise and insert the
drain plug ( ) to the original
place. close the lower cover cap.
Clean the drain pump filter
To Next Page
