INSTALLATION
Connecting the Drain Line
Secure the drain hose in place to prevent moving
and leaking.
NOTE
y
The drain hose should be properly secured.
Failure to properly secure the drain hose can
result in flooding and malfunction.
y
Total height of the house end should not exceed
96 inches (244.8 cm) from the bottom of the
washer.
y
The drain must be installed in accordance with
any applicable local codes and regulations.
y
Make sure that the water lines are not stretched,
pinched, crushed, or kinked.

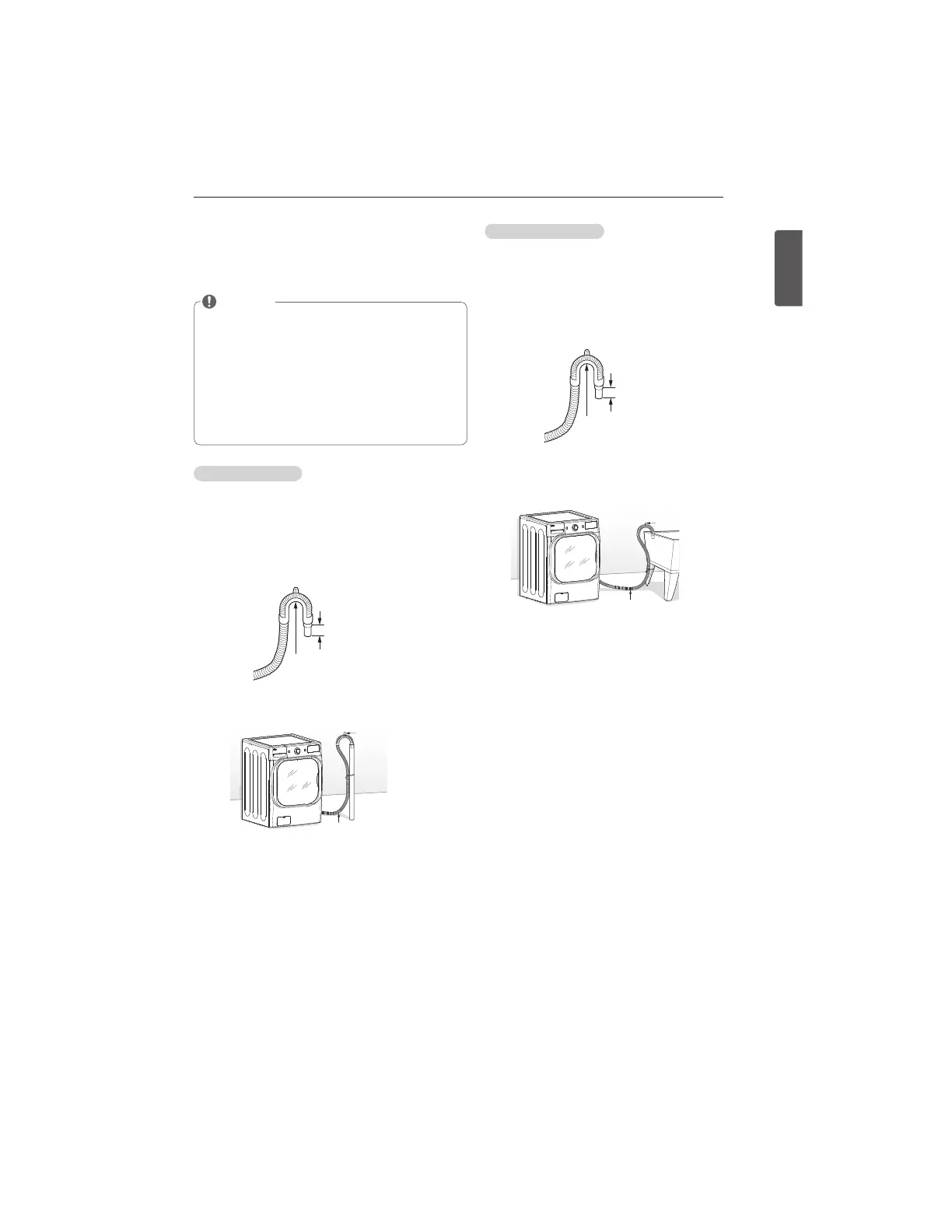

Using a Standpipe
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10
cm) from the end of the drain hose. If the drain
hose is extended more than 4 inches (10 cm)
beyond the end of the elbow bracket, mold or
microorganisms could spread to the inside of
the washer.
No more than
4 inches (10 cm)
Elbow bracket
2
Insert the end of the drain hose into the standpipe.
Drain Hose
Elbow Bracket
3
Use a tie strap to secure the drain hose in place.
Using a Laundry Tub
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10
cm) from the end of the drain hose. If the drain
hose is extended more than 4 inches (10 cm)
beyond the end of the elbow bracket, mold, or
microorganisms could spread to the inside of
the washer.
No more than
4 inches (10 cm)
Elbow bracket
2
Hang the end of the drain hose over the side of
the laundry tub.
Elbow Bracket
Drain Hose
3
Use a tie strap to secure the drain hose in place.
