5-4. PUMP MOTOR ASSEMBLY
44
Wiring
diagram
Test
points
and
Result

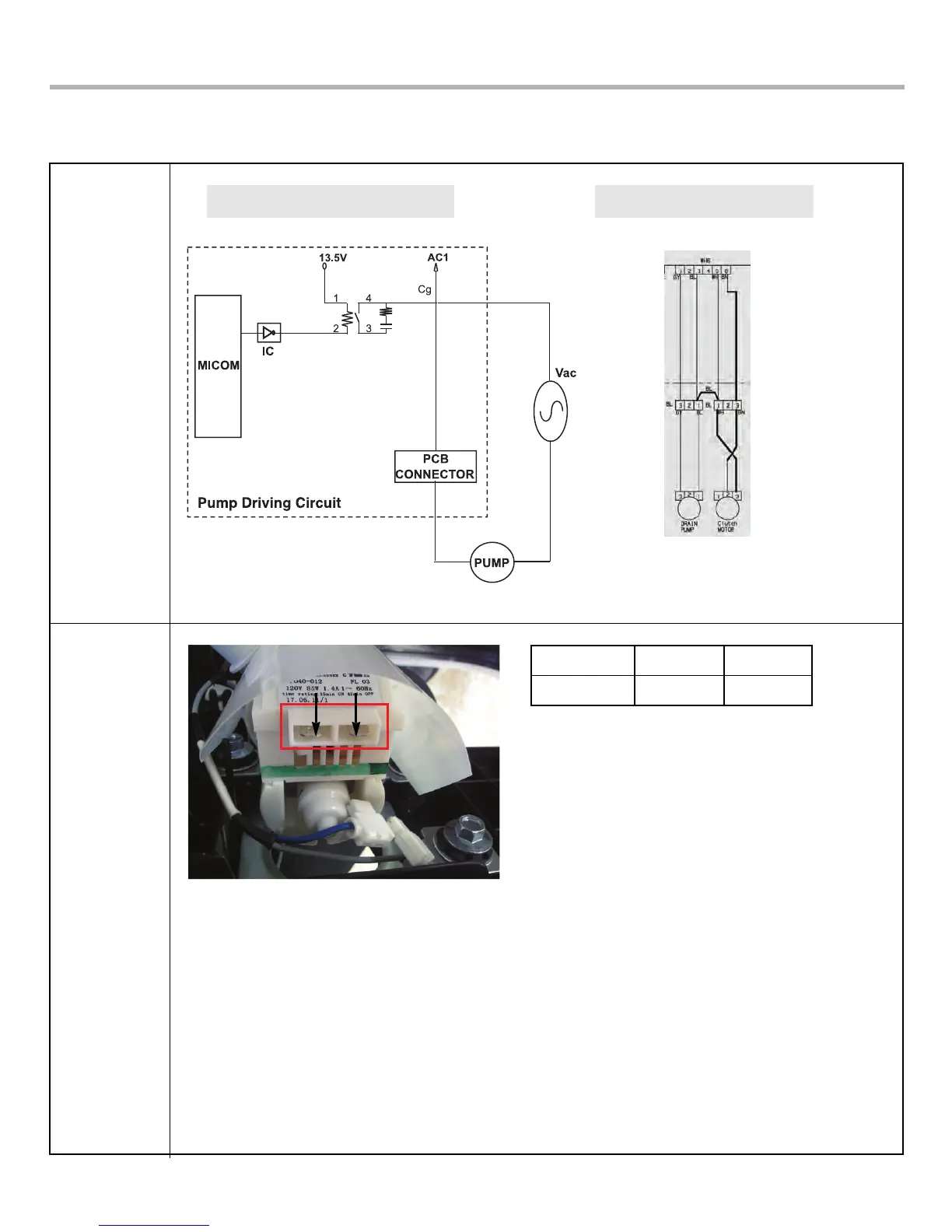

Circuit in the MAIN PCB Wiring Diagram
(1) (2)
Result
10.9 Ω±5%
Remarks
Resistance
Test Points
(1) to (2)
