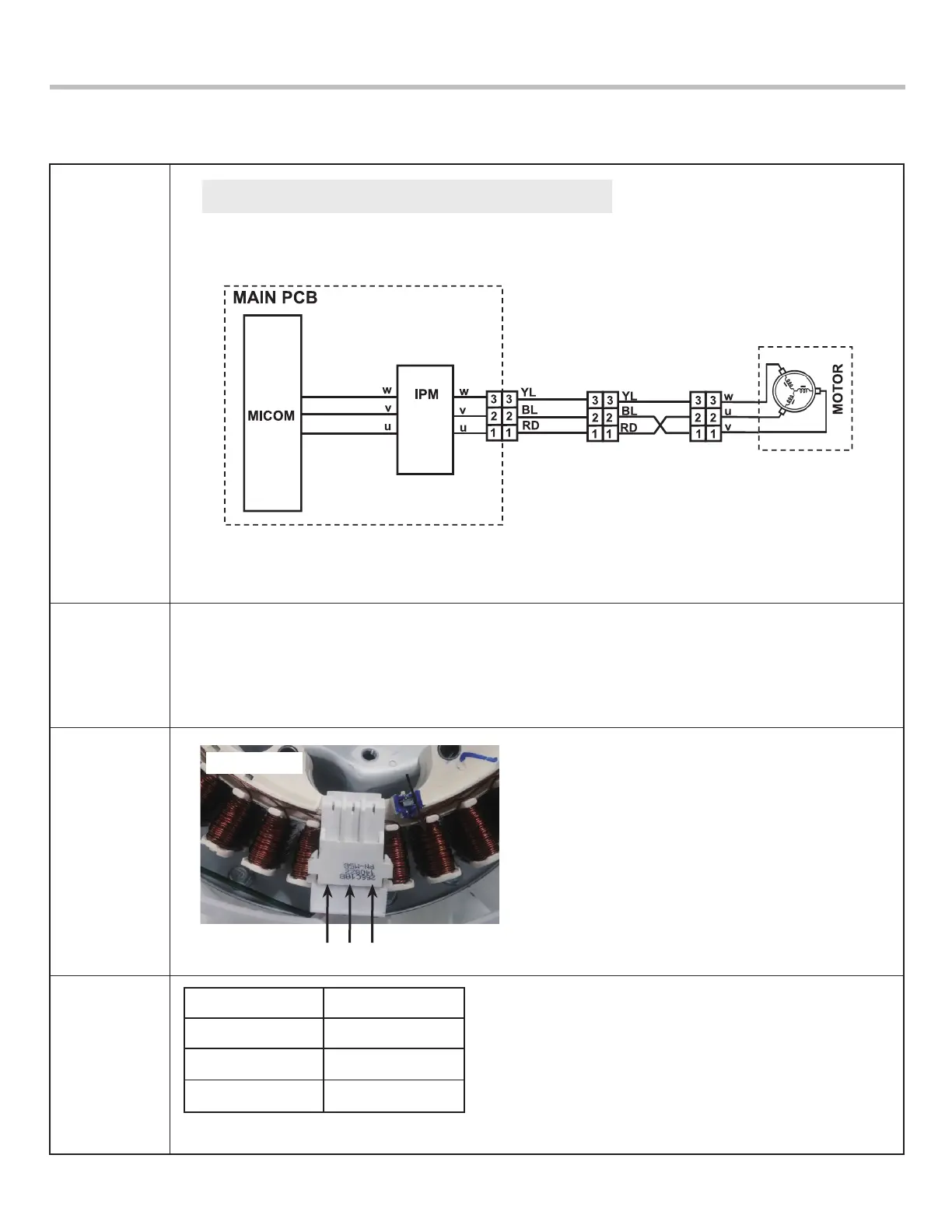

5-3. STATOR ASSEMBLY
43
Wiring
diagram
Function
Test points
(Windings)
Result
(Windings)
Circuit in the MAIN PCB / Wiring Diagram
The DD motor can be driven from stopped to maximum speed in infinite steps in either direction.
There are 36 poles on the stator; 12 permanent magnets spaced around the rotor. There are no
brushes to wear out. Unlike a more traditional brushless motor, the rotor surrounds the stator
rather than being attached to it.
Result
5-15 Ω
5-15 Ω
5-15 Ω
Test Points
(1) to (2)
(2) to (3)
(3) to (1)
WINDINGS
(1)
(3)
(2)
