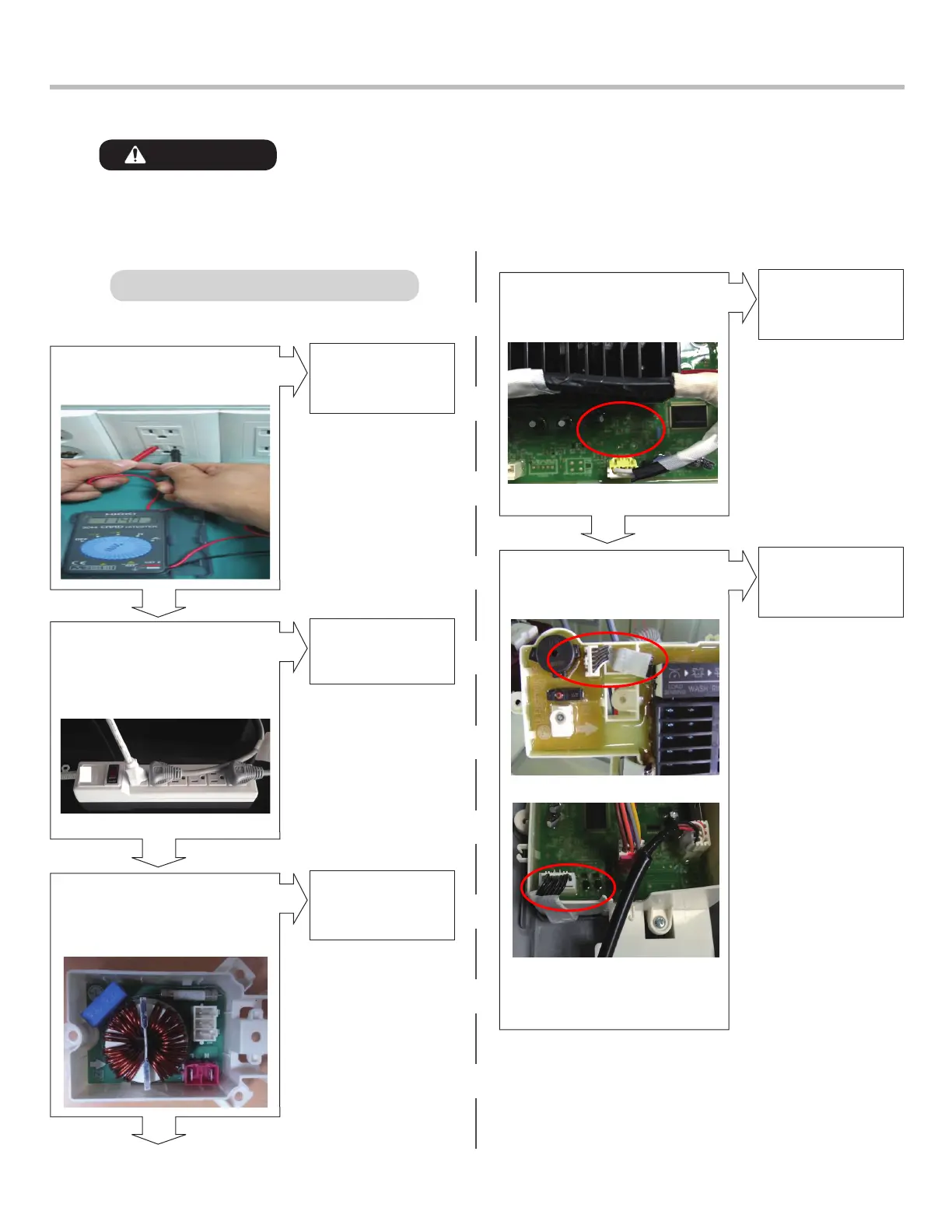

4-8. OTHER TROUBLESHOOTING

1. Be careful of electric shock if disconnecting parts while troubleshooting.

2. First of all, check the connection of each electrical terminal with the wiring diagram.

3. If you replace the main PCB assembly, reinsert the connectors correctly.

NO POWER

Replace the

DISPLAY PCB

ASSEMBLY

Is three pin wire of display

PCB broken?

Yes

Replace the MAIN

PCB ASSEMBLY

Is LED on while the power is

on?

Yes

Check the fuse or

reset the circuit

breaker

Yes

Is the supplied voltage

120V AC?(+10%, -15%)

Reconnect or

repair the

connector

Yes

Is the connector connected to

PCB/Noise filter disconnected

or disassembled?

Alternate with

explanation

Yes

Is the current rating of multi-

outlet power strip enough?

(Avoid connecting several

electric devices)

Display PCB

Connecting connector

MAIN PCB~ Display PCB

CAUTION
