LG WT7600HWA User Manual

46

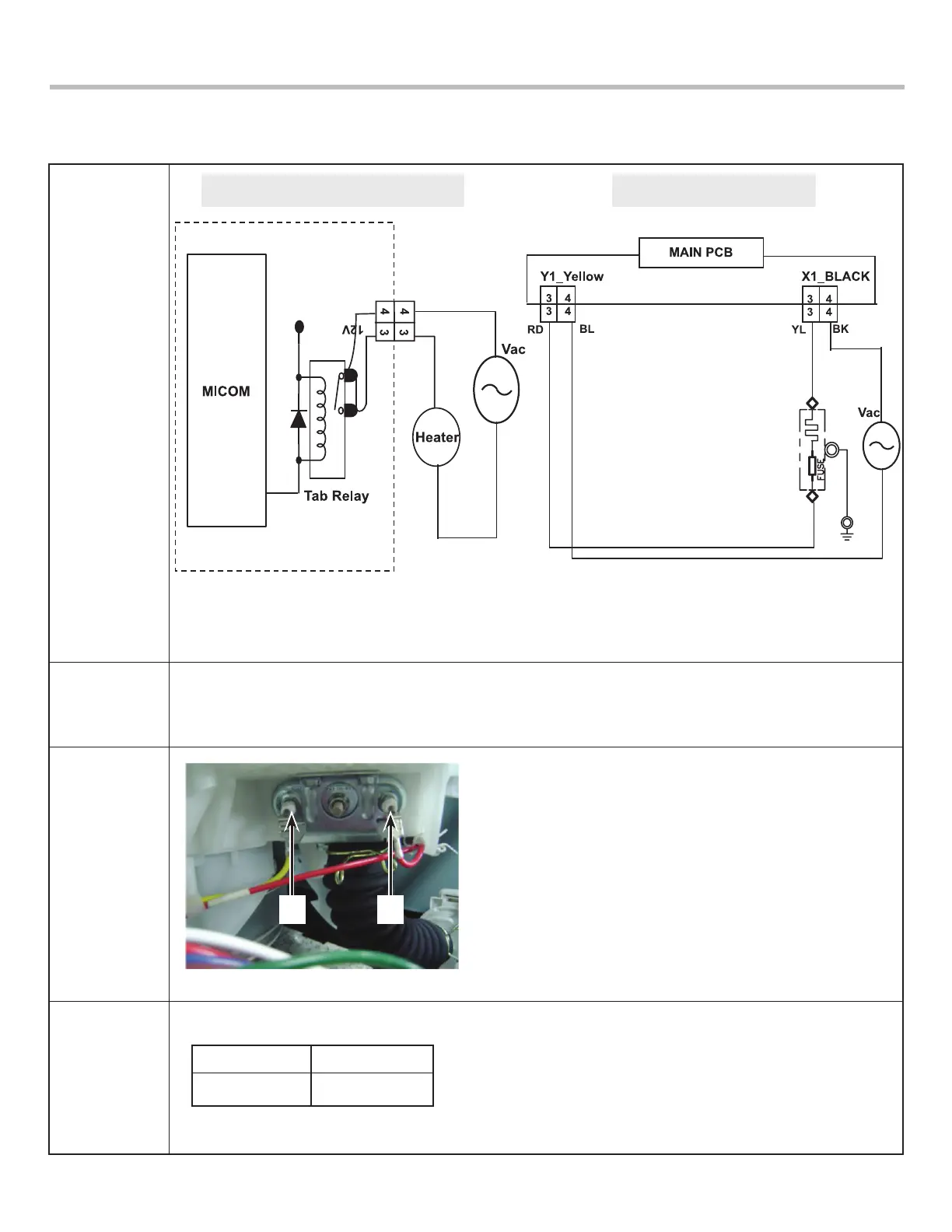

5-6. HEATER ASSEMBLY
Wiring
diagram
Function
Teat
points
Result
Circuit in the MAIN PCB
Wiring diagram
Test Points
(1) to (2)
Result
12-18 k Ω
1. The Wash Heater is designed to raise the wash water to the desired temperature selection during
certain wash cycles.
2. The Steam generator heater is designed to make the water to the steam during steam cycles.
* Each circuits of loads in wiring diagram are all same.
Heater driving circuit
WASH
HEATER
Wash Heater
Wash Heater
(1) (2)

LG WT7600HWA Specifications

General

Style	top load
Color	white
Washer Capacity	5.2 cubic feet
Max Spin Speed	950 revolutions per minute
Spin Speeds	5
Number of Cycles	14
Cycle Selections	pre wash+ normal, cotton/normal, tub clean, bulky/bedding, heavy duty, perm. press, speed wash, delicates, bright whites™, towels, sanitary, allergiene™, waterproof, downloaded
Options	soak, extra rinse, fabric softener, delay wash, child lock, custom program pgm save, signal, rinse+spin, spin only, coldwash™, staincare™, water plus, add garment
Temperature Settings	5
Temperature Selections	extra hot, hot, warm, cold, tap cold
Soil Levels	light, normal, heavy
Internal Heater	yes
Control Panel	electronic
Delay Start / End	yes
Child Lock	yes
Cycle Signal	yes
Steam	yes
Smart Home	yes
Annual Energy Consumption	130 kilowatt hours
Voltage	120 volts

Weight and Dimensions

Depth	28 3/8 inches
Height	44 1/2 inches
Width	27 inches
Net Weight	146.83 pounds
