5. COMPONENT TESTING INFORMATION
41
5-1. FILTER ASSEMBLY (LINE FILTER)
When resistance (Ohm) checking the component, be sure to turn the power off, and do
voltage discharge sufficiently.
Wiring
diagram
Test
points
and
Result

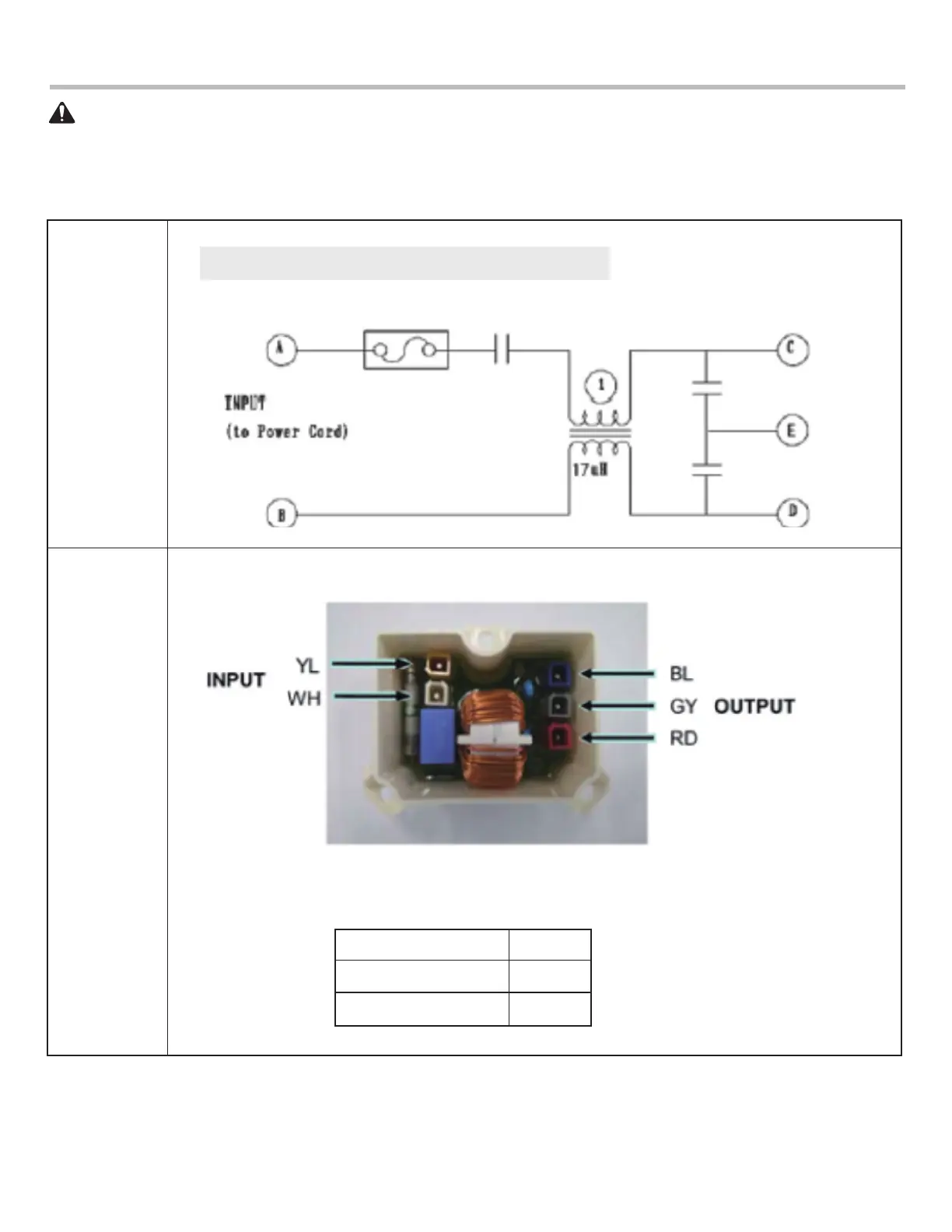

Circuit in the MAIN PCB / Wiring Diagram
Test Points
WH to BL
YL to RD
Result
0 Ω
0 Ω
WARNING
To Next Page
