WARNING: To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

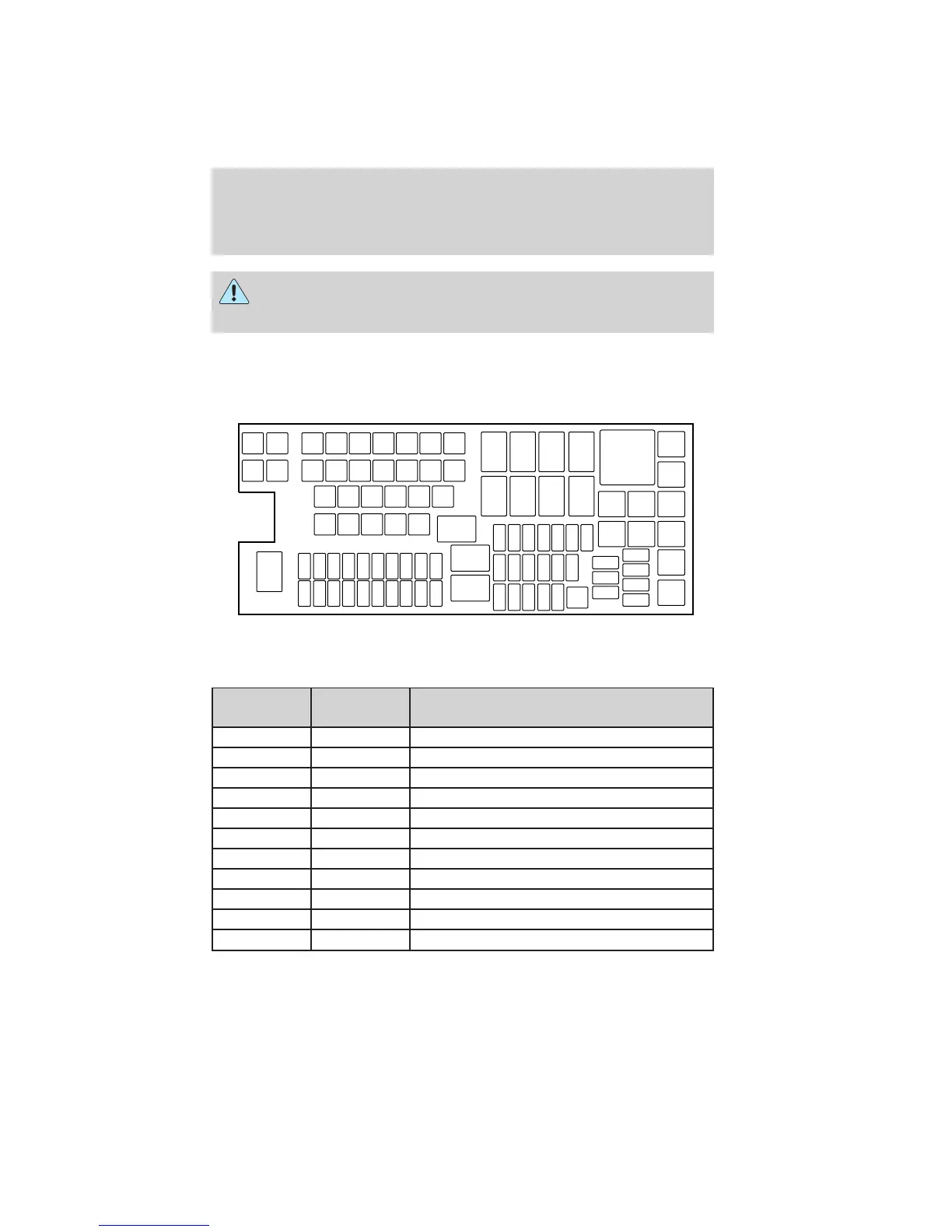

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 — Not used
2 — Not used
3 — Not used
4 30A** Wipers
5 40A** Anti-lock brake system (ABS) pump
6 — Not used
7 30A** Power liftgate
8 20A** Moon roof
9 20A** Power point #2 (console rear)
10 — Not used
11 — Rear window defroster/heated mirror relay
97
98
77
96
95
94
9392919089
88
66
44
78
56
39
26
1816 17
312 456789
19 20 21 22 23 24
27 28 29 30 31
40 41 42 43
55
57 58 59 60 61 62 63 64 65
79 80 81 82 83 84 85 86 87
67
45
32
10 11
12
13
33 34 35
46 47 48 49 50 51
68 69 70 71 72
74
73
76
75
53
3736
54
38
25
15
14
52
Roadside Emergencies
261
2011 MKX (mkx)
Owners Guide, 1st Printing
