Linksys LAPAC2600 User Manual

Appendix A - Troubleshooting
Overview
This chapter covers some common problems encountered while using the wireless access point,
and some possible solutions to them. If you follow the suggested steps and the wireless access
point still does not function properly, contact your dealer for further advice.
General Problems
I can't find new access point on my network.
Check the following:
•
The wireless access point is properly installed, LAN connections are OK, and it is powered
ON. Check the LEDs for system and port status.
•
Ensure that your PC and the wireless access point are on the same network segment. (If
you don't have a router, this must be the case.)
•
You can use the following method to determine the IP address of the wireless access
point, and then try to connect using the IP address, instead of the name.
To find the access point's IP address:
1. Open a MS-DOS Prompt or Command Prompt Window.
2. Use the Ping command to ping the wireless access point. Enter “ping” followed by the
default name of the wireless access point. Default name is “lap” followed by the last five
characters of device MAC address (e.g., ping lap964d6).

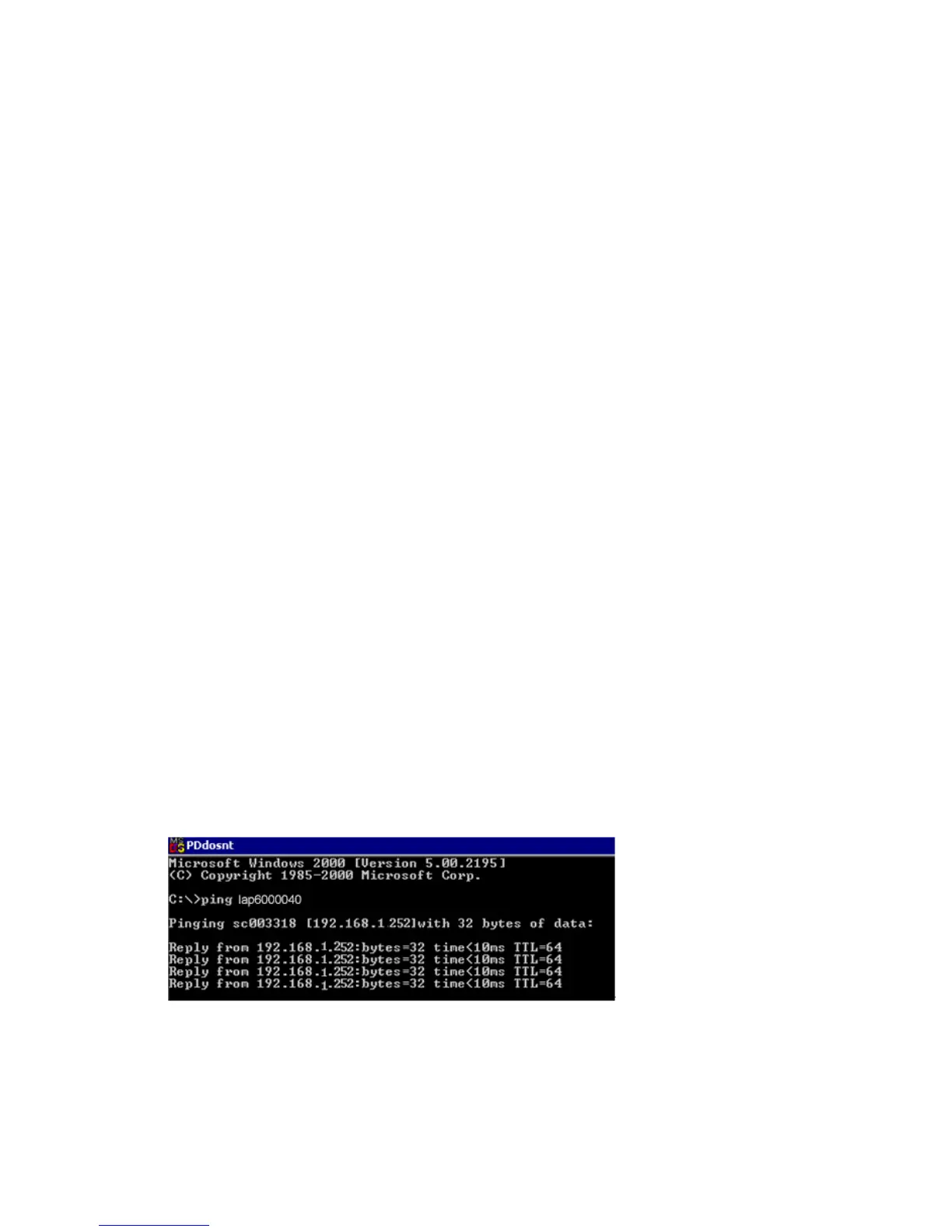

3. Check the output of the ping command to determine the IP address of the wireless access
point, as shown below.
If your PC uses a fixed (static) IP address, ensure that it is using an IP address that is in the
network segment (subnet) with the wireless access point. On Windows PCs, you can use Control
Panel >Network to check the properties for the TCP/IP protocol.
113

Linksys LAPAC2600 Specifications

General

2.4 GHz	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	13 channels
Number of VLAN IDs	17
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3at
Receiver sensitivity	802.11b 11Mbps: -85dBm 802.11a/g 54Mbps: -73dBm 802.11n HT20 MCS7: -67dBm 802.11n HT40 MCS7: -65dBm 802.11n HT40 MCS7: -65dBm
Virtual LAN features	SSID-based VLAN assignment
Wi-Fi data rate (max)	1733 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	2533 Mbit/s
Output current	2.5 A
Output voltage	12 V
Power consumption (max)	25 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC: 47 CFR FCC Part 15, Subpart B, Class B; 47 CFR FCC Part 15, Subpart C; 47 CFR FCC Part 15, Subpart E CE: EN55022, Class B; EN61000-3-2; EN61000-3-3; 55024; EN 301 489-1 / EN 301 489-17, Class B; EN 300 328; EN 301 893; EN 62311; EN 50385
Product color	White
LED indicators	System
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Security algorithms	802.1x RADIUS, HTTPS, SNMP, WPA, WPA2
Number of SSID supported	16
Service Set Identifier (SSID) features	Hidden SSID
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	243 mm
Width	237 mm
Height	43.69 mm
Weight	848 g
