Linksys LAPAC2600 User Manual

Remote Access Login for Users
1. Select Start > Programs > Administrative Tools> Active Directory Users and Computers.
2. Double-click on the user who you want to enable.

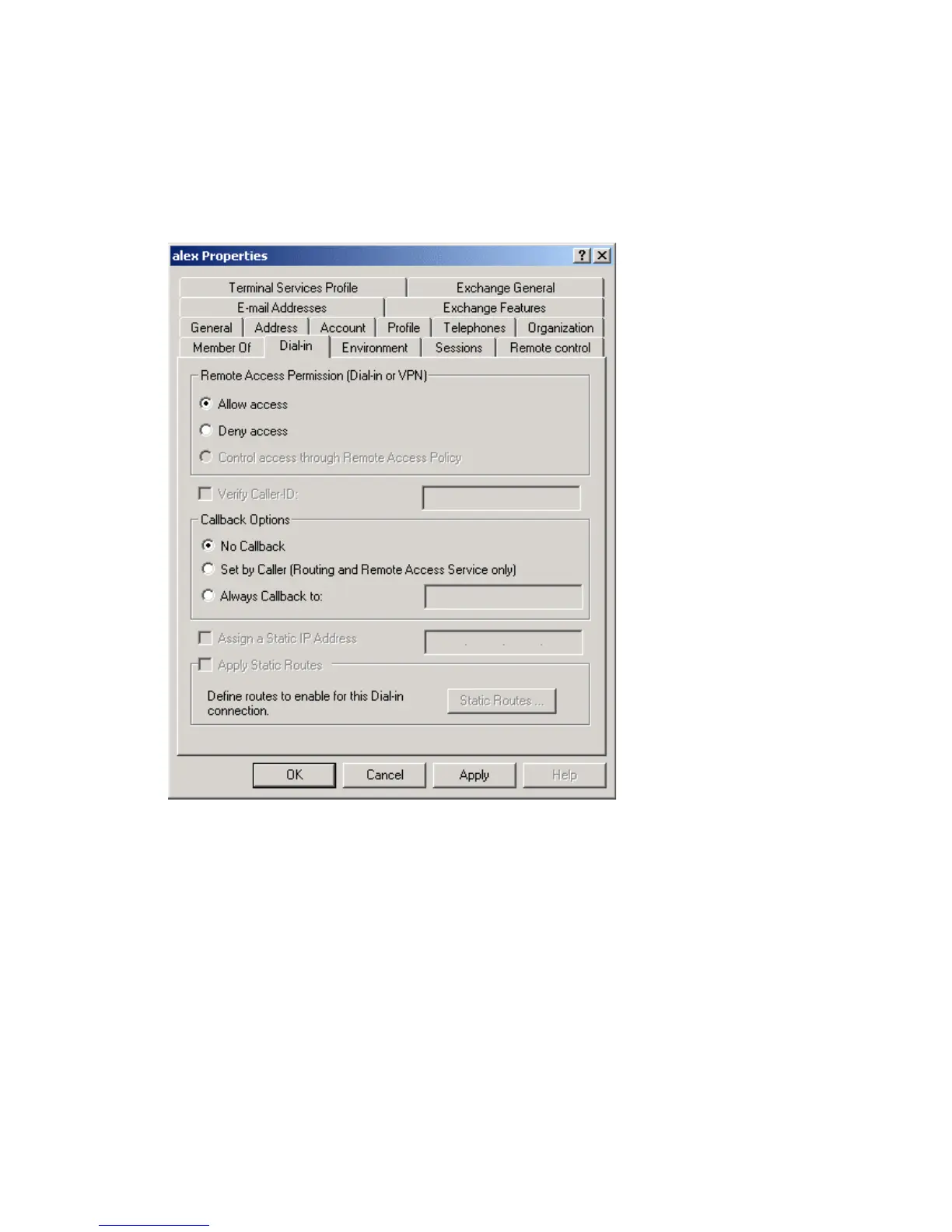

3. Select the Dial-in tab, and enable Allow access. Click OK.
802.1x Client Setup on Windows XP
Windows XP ships with a complete 802.1x client implementation. If using Windows 2000, you
can install SP3 (Service Pack 3) to gain the same functionality.
If you don't have either of these systems, you must use the 802.1x client software provided with
your wireless adapter. Refer to your vendor's documentation for setup instructions.
The following instructions assume:
•
You are using Windows XP.
•
You are connecting to a Windows 2000 server for authentication.
•
You already have a login (Username and password) on the Windows 2000 server.
132

Linksys LAPAC2600 Specifications

General

2.4 GHz	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	13 channels
Number of VLAN IDs	17
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3at
Receiver sensitivity	802.11b 11Mbps: -85dBm 802.11a/g 54Mbps: -73dBm 802.11n HT20 MCS7: -67dBm 802.11n HT40 MCS7: -65dBm 802.11n HT40 MCS7: -65dBm
Virtual LAN features	SSID-based VLAN assignment
Wi-Fi data rate (max)	1733 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	2533 Mbit/s
Output current	2.5 A
Output voltage	12 V
Power consumption (max)	25 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC: 47 CFR FCC Part 15, Subpart B, Class B; 47 CFR FCC Part 15, Subpart C; 47 CFR FCC Part 15, Subpart E CE: EN55022, Class B; EN61000-3-2; EN61000-3-3; 55024; EN 301 489-1 / EN 301 489-17, Class B; EN 300 328; EN 301 893; EN 62311; EN 50385
Product color	White
LED indicators	System
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Security algorithms	802.1x RADIUS, HTTPS, SNMP, WPA, WPA2
Number of SSID supported	16
Service Set Identifier (SSID) features	Hidden SSID
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	243 mm
Width	237 mm
Height	43.69 mm
Weight	848 g
