Linksys LAPAC2600 User Manual

Encryption Settings
The encryption settings must match the access point’s on the wireless network you wish to join.
•
Windows XP will detect any available wireless networks, and allow you to configure each
network independently.
•
Your network administrator can advise you of the correct settings for each network.
802.1x networks typically use EAP-TLS. This is a dynamic key system, so there is no need
to enter key values.
Enabling Encryption
To enable encryption for a wireless network:

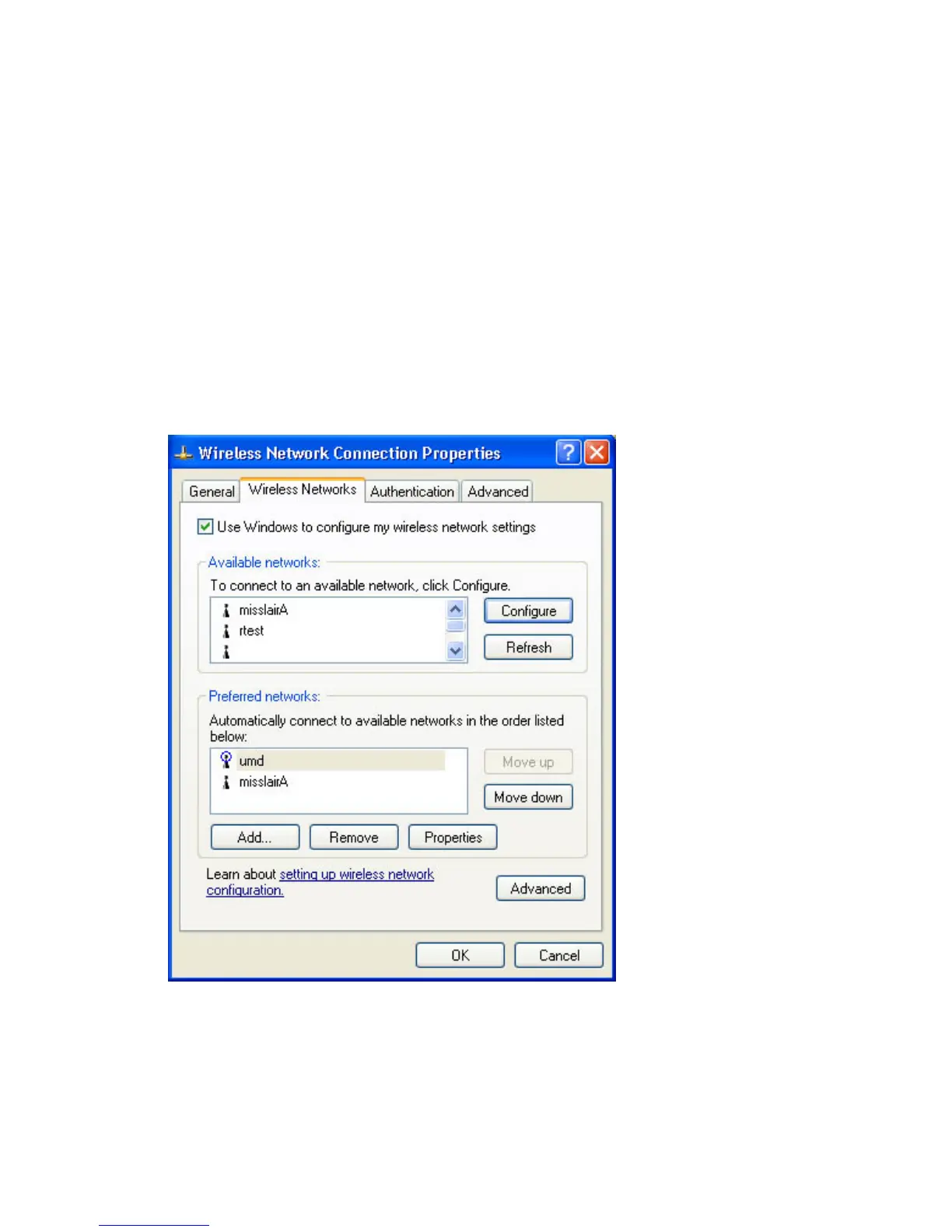

1. Click on the Wireless Networks tab.
2. Select the wireless network from the Available networks list, and click Configure.
3. Select and enter the correct values, as advised by your network administrator.
For example, to use EAP-TLS, you would enable Data encryption, and click the checkbox
for the setting The key is provided for me automatically, as shown below.
137

Linksys LAPAC2600 Specifications

General

2.4 GHz	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	13 channels
Number of VLAN IDs	17
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3at
Receiver sensitivity	802.11b 11Mbps: -85dBm 802.11a/g 54Mbps: -73dBm 802.11n HT20 MCS7: -67dBm 802.11n HT40 MCS7: -65dBm 802.11n HT40 MCS7: -65dBm
Virtual LAN features	SSID-based VLAN assignment
Wi-Fi data rate (max)	1733 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	2533 Mbit/s
Output current	2.5 A
Output voltage	12 V
Power consumption (max)	25 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC: 47 CFR FCC Part 15, Subpart B, Class B; 47 CFR FCC Part 15, Subpart C; 47 CFR FCC Part 15, Subpart E CE: EN55022, Class B; EN61000-3-2; EN61000-3-3; 55024; EN 301 489-1 / EN 301 489-17, Class B; EN 300 328; EN 301 893; EN 62311; EN 50385
Product color	White
LED indicators	System
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Security algorithms	802.1x RADIUS, HTTPS, SNMP, WPA, WPA2
Number of SSID supported	16
Service Set Identifier (SSID) features	Hidden SSID
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	243 mm
Width	237 mm
Height	43.69 mm
Weight	848 g
